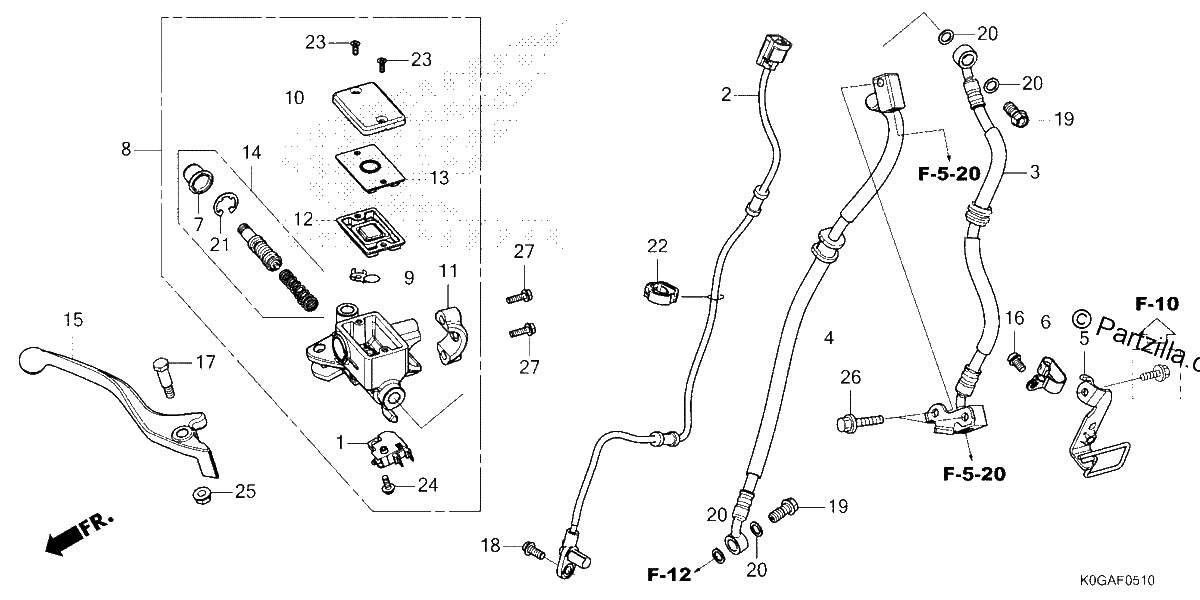

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
SENSOR, Front WHEEL SPEED
$34.26¢17 129
#003
HOSE A, Front BRAKE
$59.36¢29 681
#004
HOSE B, FR. BRAKE
$53.16¢26 582
#005
STAY A, FR. BRAKE HOSE
$13.86¢6 929
#006
CLAMP, Front BRAKE HOSE
$39.95¢19 976
#007
BOOT
$13.10¢6 549
#008
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$140.75¢70 374
#009
PROTECTOR
$4.78¢2 392
#010
CAP, MASTER CYLINDER
$29.42¢14 708
#011
HOLDER, MASTER CYLINDER
$24.79¢12 397
#012
DIAPHRAGM
$10.00¢5 002
#013
PLATE, DIAPHRAGM
$2.69¢1 346
#014
MASTER CYLINDER SET, Front. (NISSIN)
$23.71¢11 857
#015
LEVER, R. HANDLEBAR
$17.73¢8 866
#015
LEVER, Right HANDLEBAR (COO)
$17.73¢8 866
#016
BOLT, FLANGE (6X10)
$1.60¢799
#017
BOLT, HANDLE LEVER PIVOT
$1.15¢575
#018
BOLT, FLANGE (6X14)
$0.68¢339
#019
BOLT, OIL (10X22)
$8.18¢4 088
#020
WASHER, OIL BOLT
$4.46¢2 231
#021
CIRCLIP, INNER (18.8MM)
$0.80¢402
#022
CLAMP, HARNESS
$1.54¢771
#023
SCREW, FLAT (4X12)
$1.07¢535
#023
SCREW, FLAT (4X12)
$1.07¢535
#024
SCREW-WASHER (4X12)
$1.59¢793
#024
SCREW-WASHER (4X12)
$1.59¢793
#025
NUT, FLANGE (6MM)
$0.74¢368
#026
BOLT, FLANGE (6X20)
$1.47¢736
#027
BOLT, FLANGE (6X22)
$1.47¢736
