SADDLEBAG

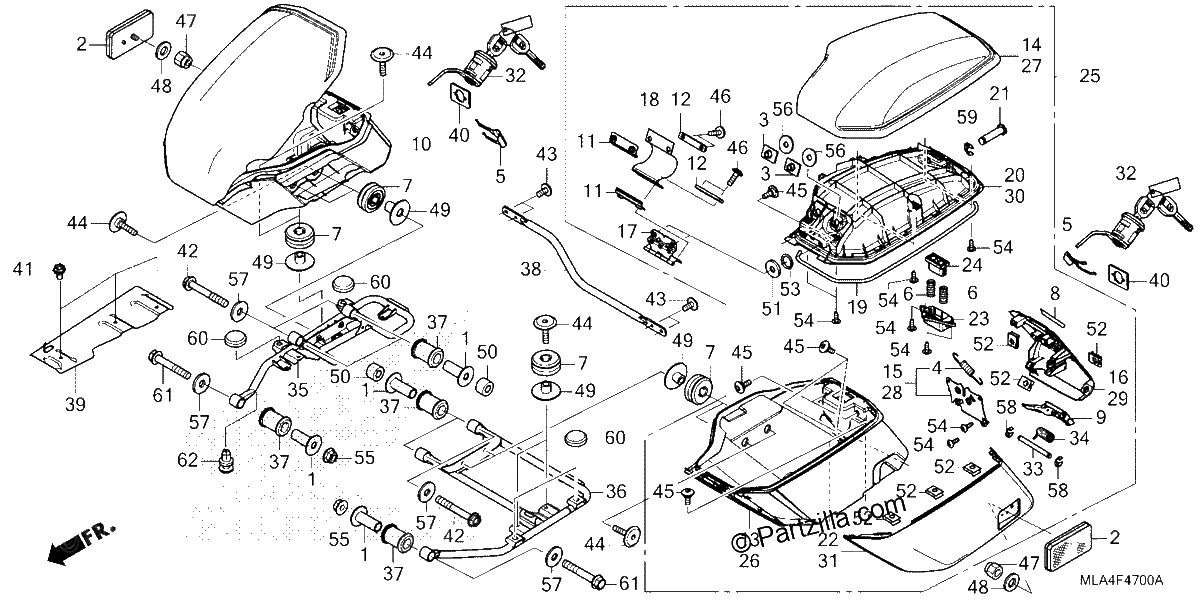

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, CHAMBER MOUNTING
$9.19¢4 594
#002
REFLECTOR, REFLEX
$31.14¢15 571
#003
NUT, SPECIAL (5MM)
$5.83¢2 915
#004
SPRING, SEAT LOCK
$1.45¢724
#005
SPRING, LOCK KEY SETTING (2WAY) (WAVE)
$4.36¢2 179
#006
SPRING, SEAT LOCK
$2.54¢1 271
#007
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
#008
MARK, SADDLEBAG LID
$2.68¢1 340
#009
LEVER, SADDLEBAG
$17.54¢8 769
#010
SADDLEBAG Assembly., Right. R337M (BORDEAUX RED METALLIC)
$681.69¢340 843
#010
SADDLEBAG Assembly., Right. NHC52M (GUNMETAL BLACK METALLIC)
$681.69¢340 843
#011
BRACKET, STOPPER
$5.86¢2 932
#012
PLATE, STOPPER
$5.40¢2 702
#013
BODY, Right SADDLEBAG
$125.61¢62 807
#014
LID, Right SADDLEBAG (OUTER) R337M (BORDEAUX RED METALLIC)
$303.75¢151 875
#014
LID, R. SADDLEBAG (OUTER) *NHC52M*(GUNMETAL BLACK METALLIC)
$303.75¢151 875
#015
CATCH, Right LID
$46.15¢23 075
#016
COVER, Right LOCK
$33.06¢16 531
#017
HINGE, SADDLEBAG
$45.45¢22 724
#018
STOPPER
$13.20¢6 601
#019
RUBBER, SADDLEBAG SEAL
$13.72¢6 860
#020
LID, Right SADDLEBAG (INNER)
$53.50¢26 749
#021
SHAFT (5X17)
$2.54¢1 271
#022
PANEL, R. SADDLEBAG *R337M*(BORDEAUX RED METALLIC)
$63.64¢31 821
#022
PANEL, R. SADDLEBAG *NHC52M*(GUNMETAL BLACK METALLIC)
$54.51¢27 255
#023
CASE, LID SPRING (UPPER)
$3.96¢1 978
#024
CASE, LID SPRING (LOWER)
$3.71¢1 857
#025
SADDLEBAG ASSY., L. *R337M*(BORDEAUX RED METALLIC)
$681.69¢340 843
#025
SADDLEBAG ASSY., L. *NHC52M*(GUNMETAL BLACK METALLIC)
$681.69¢340 843
#026
BODY, L SADDLEBAG
$146.49¢73 244
#027
LID, L. SADDLEBAG (OUTER) *R337M*(BORDEAUX RED METALLIC)
$303.75¢151 875
#027
LID, L. SADDLEBAG (OUTER) *NHC52M*(GUNMETAL BLACK METALLIC)
$303.75¢151 875
#028
CATCH, L LID
$65.25¢32 625
#029
COVER, L LOCK
$35.48¢17 739
#030
LID, L SADDLEBAG (INNER)
$53.50¢26 749
#031
PANEL, L. SADDLEBAG *R337M*(BORDEAUX RED METALLIC)
$85.18¢42 590
#031
PANEL, L SADDLEBAG NHC52M (GUNMETAL BLACK METALLIC)
$85.18¢42 590
#032
KEY, SADDLEBAG LOCK (2WAY) (WAVE)
$60.51¢30 256
#033
PIN, CENTER POCKET
$5.66¢2 829
#034
SPRING, CENTER POCKET
$6.04¢3 019
#035
STAY, Right SADDLEBAG
$305.24¢152 622
#036
STAY, L SADDLEBAG
$305.24¢152 622
#037
RUBBER, SADDLEBAG STAY MOUNTING
$4.11¢2 053
#038
PIPE, CENTER CROSS
$97.49¢48 743
#039
GUARD, HEAT
$131.63¢65 815
#040
WASHER, KEY LOCK (2WAY) (WAVE)
$4.36¢2 179
#041
BOLT, FLANGE (6X10)
$2.60¢1 299
#042
BOLT, FLANGE (8X55)
$3.36¢1 679
#043
BOLT, SOCKET SPECIAL (6X12)
$1.26¢633
#044
SCREW, SPECIAL (6MM)
$4.43¢2 214
#045
SCREW, SPECIAL (5X15)
$3.36¢1 679
#046
SCREW, PAN (5X20)
$1.54¢771
#047
NUT, HEX. (5MM)
$2.64¢1 322
#048
WASHER (6MM)
$1.95¢977
#049
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
#050
COLLAR, SADDLEBAG STAY
$4.36¢2 179
#051
WASHER, PLAIN (5MM)
$3.60¢1 800
#052
NUT, CLIP (5MM)
$4.54¢2 271
#053
O-RING (11.9X2.2)
$2.83¢1 414
#054
SCREW, TAPPING (4X12)
$1.07¢535
#055
NUT, FLANGE (8MM)
$1.77¢886
#056
WASHER, PLAIN (6MM)
$0.92¢460
#057
WASHER, PLAIN (8MM)
$1.12¢558
#058
E-RING (3MM)
$1.30¢650
#059
E-RING (4MM)
$2.45¢1 225
#060
RUBBER C, STAND STOPPER
$4.36¢2 179
#061
BOLT, FLANGE (8X50)
$3.36¢1 679
#061
BOLT, FLANGE (8X50)
$3.36¢1 679
#061
BOLT, FLANGE (8X50)
$3.36¢1 679
#062
CLIP, HANDLEBAR
$2.51¢1 254
