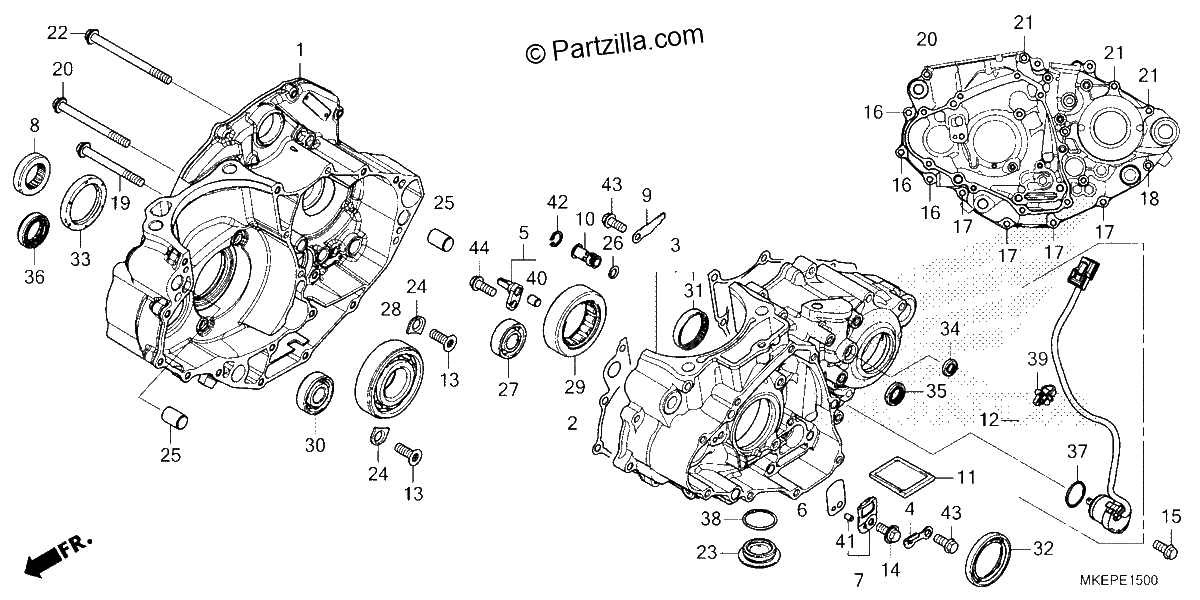

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE, Right.
$605.84¢302 919
#002
GASKET, CRANKCASE
$24.63¢12 313
#003
CRANKCASE, Left
$513.70¢256 850
#004
PLATE, CAM CHAIN GUIDE
$4.22¢2 113
#005
JET, PISTON
$50.32¢25 162
#006
VALVE, REED
$9.44¢4 719
#007
STOPPER, REED VALVE
$34.55¢17 275
#008
COLLAR, CRANKSHAFT
$39.49¢19 744
#009
PLATE, OIL GUIDE
$5.83¢2 913
#010
VALVE ASSY., RELIEF
$31.74¢15 869
#011
SCREEN, OIL FILTER
$16.50¢8 250
#012
SWITCH ASSY., CHANGE
$129.65¢64 825
#013
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
#014
BOLT-WASHER (6X14)
$3.05¢1 525
#015
BOLT, FLANGE (6X12)
$2.76¢1 381
#016
BOLT, FLANGE (6X28)
$2.99¢1 494
#017
BOLT, FLANGE (6X40)
$3.43¢1 713
#018
BOLT, FLANGE (6X50)
$3.73¢1 863
#019
BOLT, FLANGE (6X60)
$3.94¢1 969
#020
BOLT, FLANGE (6X70)
$4.04¢2 019
#021
BOLT, FLANGE (6X75)
$3.65¢1 825
#022
BOLT, FLANGE (6X80)
$4.22¢2 113
#023
BOLT, DRAIN (30MM)
$19.30¢9 650
#024
PLATE, BEARING HOLDER
$4.36¢2 181
#025
PIN, DOWEL (14X20)
$5.35¢2 675
#026
O-RING (8.5X1.7)
$3.49¢1 744
#027
BEARING, RADIAL BALL SPECIAL (6202)
$12.98¢6 488
#028
BEARING, RADIAL BALL (30X72X19)
$58.30¢29 150
#029
BEARING, SPECIAL ROLLER (NTN)
$58.39¢29 194
#030
BEARING, RADIAL BALL (15X38X11)
$27.68¢13 838
#031
BEARING, SHELL (33X38X8) (NTN)
$21.66¢10 831
#032
OIL SEAL (38X52X7) (ARAI)
$15.39¢7 694
#033
OIL SEAL (39X53X7)
$19.55¢9 775
#034
OIL SEAL (7X14.5X5)
$3.93¢1 963
#035
OIL SEAL (14X22X5) (ARAI)
$2.48¢1 238
#036
OIL SEAL (22X33X7.5)
$9.59¢4 794
#037
O-RING (16.5X2.5)
$2.52¢1 263
#038
O-RING (30MM)
$1.79¢894
#039
CLIP, HARNESS BAND (145MM) (BLACK)
$4.01¢2 006
#040
PIN, DOWEL (8X10)
$2.89¢1 444
#041
PIN C, DOWEL (4X6.5)
$2.75¢1 375
#042
CIRCLIP, INNER (14MM)
$1.19¢594
#043
BOLT, FLANGE (6X14)
$2.31¢1 156
#044
BOLT, FLANGE (6X16)
$1.35¢675
