SWINGARM

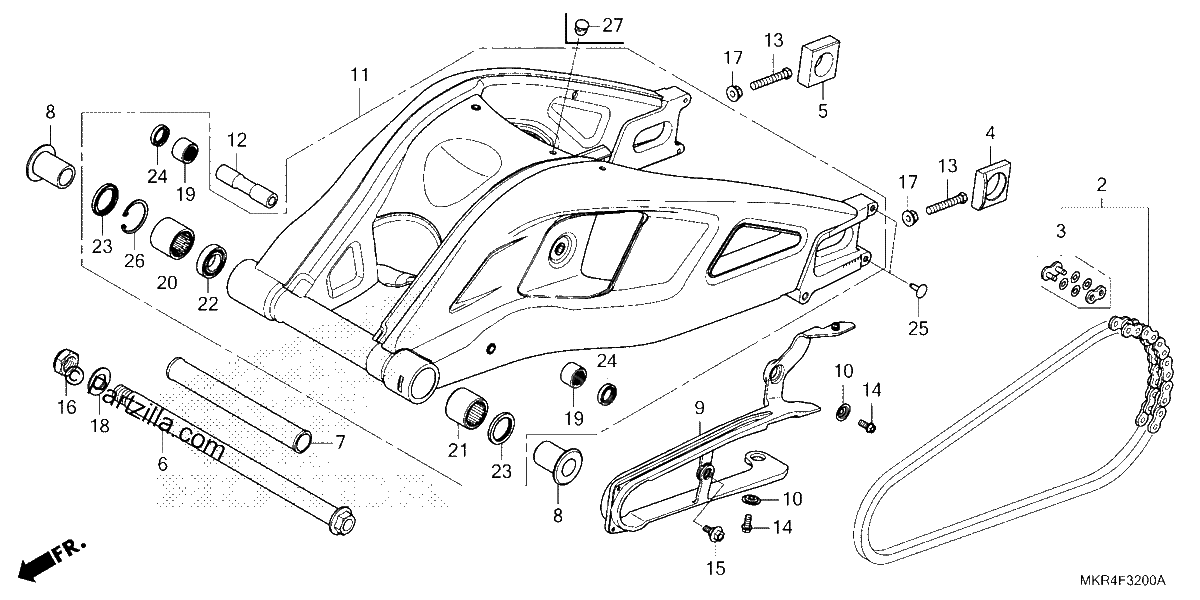

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
CHAIN, DRIVE (DID525HV3KAI-120ZH) (DAIDO)
$286.66¢143 331
#002
CHAIN, DRIVE (RK525ROZ8-120LJFZ) (RK JAPAN) (NA USE ALT: 40530-MKR-A31)
No Disponible
#003
MASTER LINK (DAIDO)
$14.94¢7 469
#003
MASTER LINK (RK JAPAN)
$14.30¢7 150
#004
COLLAR, L. RR. AXLE
$44.52¢22 263
#005
COLLAR, R. RR. AXLE
$36.45¢18 225
#006
BOLT, SWINGARM PIVOT
$81.66¢40 831
#007
COLLAR, CENTER PIVOT DISTANCE
$35.67¢17 838
#008
COLLAR, PIVOT DISTANCE
$39.63¢19 813
#009
SLIDER, CHAIN
$74.20¢37 100
#010
WASHER, CHAIN SLIDER
$2.85¢1 425
#011
SWINGARM SUB-Assembly., Rear.
$3090.92¢1 545 462
#012
COLLAR A, CUSHION ARM
$16.05¢8 025
#013
BOLT, HEX. (8X50)
$3.71¢1 856
#014
BOLT, FLANGE (6X14)
$2.97¢1 487
#015
BOLT, CHAIN SLIDER
$3.71¢1 856
#016
NUT, U (18MM)
$8.26¢4 131
#017
NUT, HEX. (8MM)
$4.13¢2 063
#018
WASHER (18X32X2)
$5.42¢2 713
#019
BEARING, NEEDLE (17X24X17) (FAG)
$17.02¢8 513
#020
BEARING, NEEDLE
$19.98¢9 988
#021
BEARING, NEEDLE
$29.82¢14 913
#022
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
#023
DUST SEAL (28X37X4)
$7.70¢3 850
#024
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
#025
CLIP, BRUSH
$4.69¢2 344
#026
CIRCLIP, INNER (37MM)
$2.81¢1 406
#027
PLUG, HANDLE COVER (LOWER)
$2.39¢1 194
