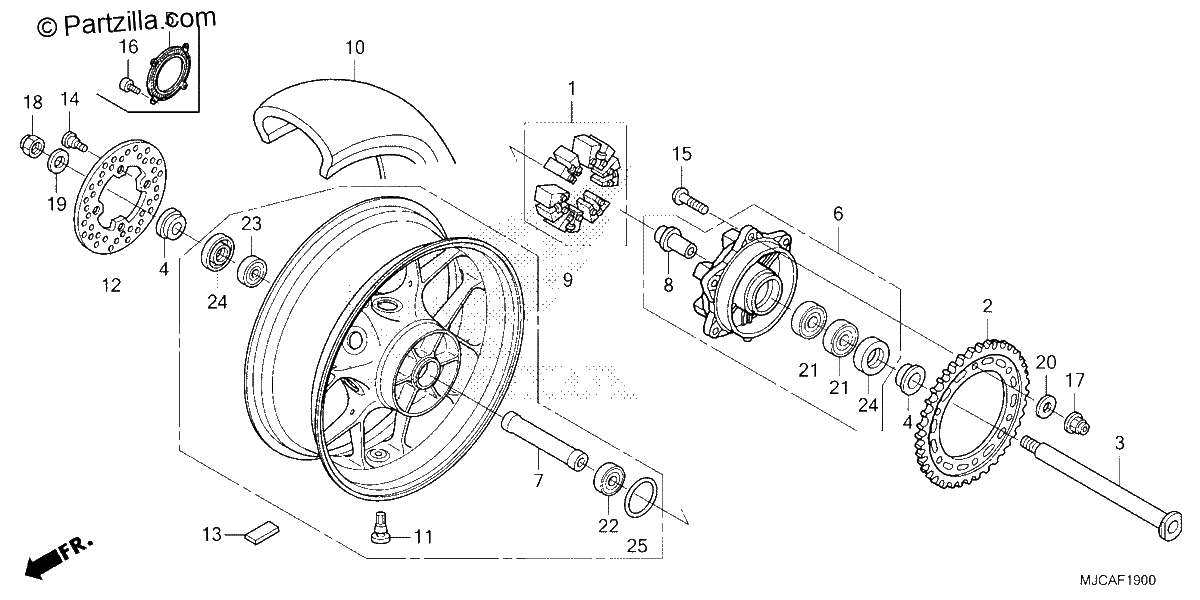

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$61.74¢30 872
#002
SPROCKET, FINAL DRIVEN (42T)
$99.92¢49 962
#003
AXLE, RR. WHEEL
$87.85¢43 924
#004
COLLAR, RR. WHEEL SIDE
$21.26¢10 632
#005
RING, RR. PULSER
$63.49¢31 746
#006
FLANGE SUB-ASSY., RR. DRIVEN
$284.90¢142 451
#007
COLLAR, RR. AXLE DISTANCE
$43.47¢21 735
#008
COLLAR B, RR. WHEEL DISTANCE
$36.93¢18 463
#009
WHEEL SUB-Assembly., Rear. (TYPE2)
$1257.19¢628 596
#010
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
#011
VALVE, RIM (DUNLOP)
$13.60¢6 802
#012
DISK, RR. BRAKE
$301.04¢150 518
#013
WEIGHT, BALANCE (20G)
$6.22¢3 111
#013
WEIGHT, BALANCE (15G)
$6.22¢3 111
#013
WEIGHT, BALANCE (10G)
$5.22¢2 610
#014
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#015
BOLT (10X30)
$3.36¢1 679
#016
BOLT, TORX (5X7)
$3.60¢1 800
#017
NUT, U (10MM)
$4.83¢2 415
#018
U-NUT (22MM)
$14.54¢7 268
#019
WASHER (23X37X2.5)
$5.63¢2 818
#020
WASHER (10MM)
$3.32¢1 662
#021
BEARING, RADIAL BALL (28X52X12)
$36.32¢18 158
#022
BEARING, RADIAL BALL (6005)
$16.03¢8 015
#023
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
#024
DUST SEAL (35X52X7.5)
$13.24¢6 618
#025
O-RING (51X2)
$4.21¢2 105
