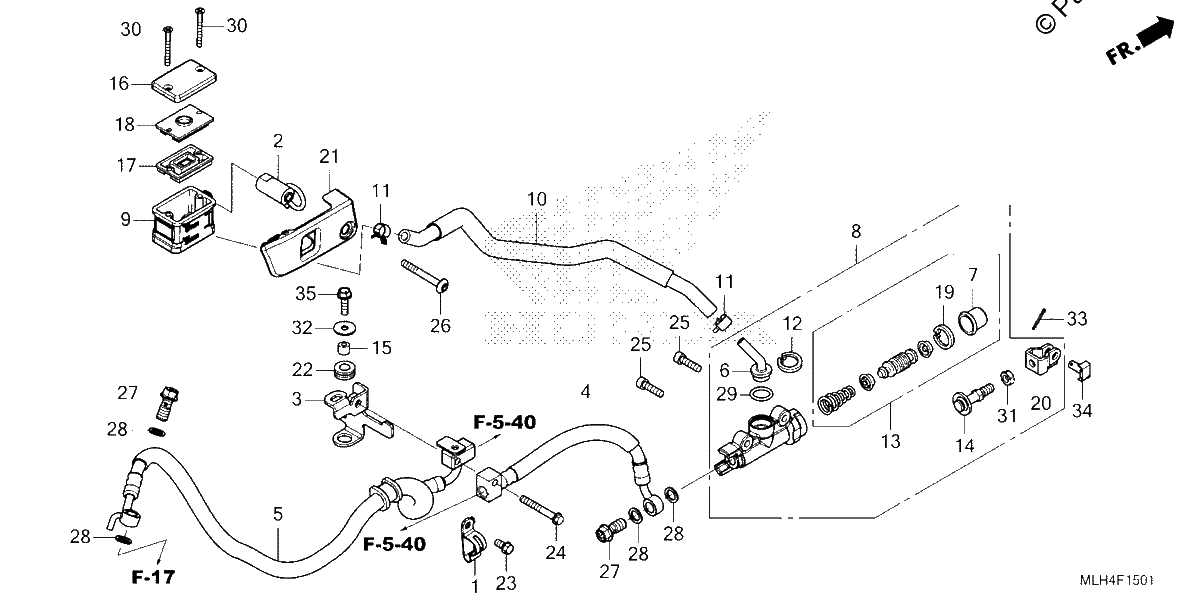

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, BRAKE HOSE
$1.83¢914
#002
COLLAR, OIL CUP
$8.08¢4 042
#003
STAY, RR. BRAKE HOSE
$10.53¢5 267
#004
HOSE A, RR. BRAKE
$26.33¢13 167
#005
HOSE D, Rear BRAKE
$35.59¢17 796
#006
CONNECTOR
$13.18¢6 590
#007
BOOT
$10.80¢5 399
#008
MASTER CYLINDER SUB-ASSY., RR.(NISSIN)
$131.93¢65 964
#009
CUP, OIL
$25.32¢12 661
#010
HOSE, RR. MASTER CYLINDER
$20.46¢10 229
#011
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#012
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#013
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
#014
ROD, PUSH
$13.44¢6 722
#015
COLLAR, BRAKE HOSE STAY
$1.94¢972
#016
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#016
CAP, MASTER CYLINDER
$4.63¢2 317
#017
DIAPHRAGM
$11.33¢5 664
#018
PLATE, DIAPHRAGM
$11.59¢5 796
#019
CIRCLIP
$2.30¢1 150
#020
JOINT, BRAKE ROD
$8.74¢4 370
#021
COVER, OIL CUP
$4.60¢2 300
#022
GROMMET, MAIN PIPE COVER
$1.15¢575
#023
BOLT, FLANGE (6X12)
$2.75¢1 374
#024
BOLT, FLANGE (6X45)
$1.12¢558
#025
BOLT, SOCKET (6X22)
$1.17¢586
#026
BOLT, SOCKET SPECIAL (6X50)
$0.68¢339
#027
BOLT, OIL (10X22)
$8.18¢4 088
#028
WASHER, OIL BOLT
$4.46¢2 231
#029
O-RING (14.8X2.4)
$3.04¢1 518
#030
SCREW, FLAT (4X40)
$0.56¢282
#031
NUT, HEX. (8MM)
$1.47¢736
#032
WASHER, PLAIN (6MM)
$1.17¢586
#033
PIN, SPLIT (2.0X15)
$1.23¢615
#034
PIN D, JOINT
$4.74¢2 369
#035
BOLT, FLANGE (6X20)
$2.09¢1 047
