THROTTLE BODY FUEL INJECTOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

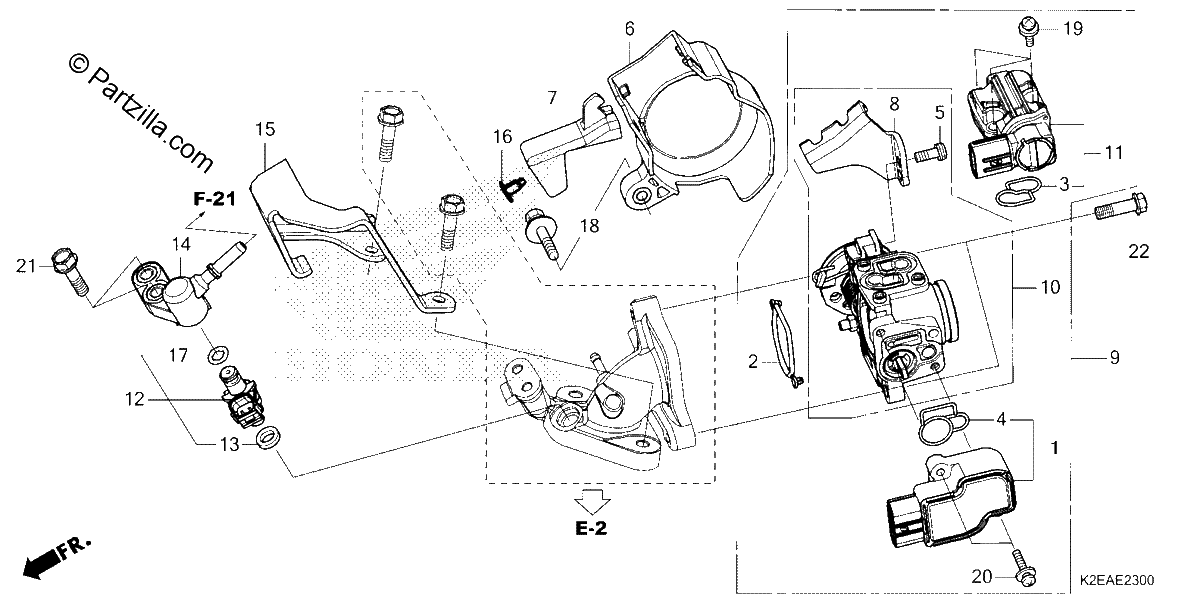

Diagrama de THROTTLE BODY FUEL INJECTOR

Repuestos

#001
16060-K1L-D01
SENSOR SET
$113.15¢56 575
1
#002
16075-K35-V01
O-RING, THROTTLE BODY
$6.34¢3 169
1
#003
16076-K35-V01
O-RING
$3.36¢1 681
1
#004
16077-KSS-J01
O-RING
$7.76¢3 881
1
#005
16081-KVS-J01
SCREW-WASHER (5X12) (TORX)
$9.91¢4 956
1
#006
16150-K2E-T10
COVER A, THROTTLE
$4.39¢2 194
1
#007
16160-K2E-T10
COVER B, THROTTLE
$3.08¢1 538
1
#008
16169-K56-N01
STAY, WIRE
$76.09¢38 044
1
#009
16400-K0G-T21
BODY Assembly., THROTTLE (GQY4A A)
$290.51¢145 256
1
#010
16410-K0G-T21
BODY SET
$104.39¢52 194
1
#011
16430-K0G-901
VALVE SET, IDLE AIR CONTROL
$63.91¢31 956
1
#012
16450-K60-T71
INJECTOR ASSY., FUEL
$51.76¢25 881
1
#013
16472-KPC-D50
RING, SEAL
$2.75¢1 375
1
#014
17560-K0G-T20
JOINT, INJECTOR
$50.32¢25 162
1
#015
17570-K2E-T10
STAY, INJECTOR GUARD
$12.63¢6 313
1
#016
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#017
91301-GGL-J01
O-RING (6.3X2.2)
$12.15¢6 075
1
#018
93414-05025-08
BOLT-WASHER (5X25)
$1.19¢594
1
#019
93891-04010-08
SCREW-WASHER (4X10)
$1.47¢737
1
#019
93891-04010-18
SCREW-WASHER (4X10)
$1.47¢737
1
#020
93891-04016-08
SCREW-WASHER (4X16)
$1.47¢737
1
#020
93891-04016-18
SCREW-WASHER (4X16)
$1.47¢737
1
#021
95701-06022-00
BOLT, FLANGE (6X22)
$2.31¢1 156
1
#022
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
