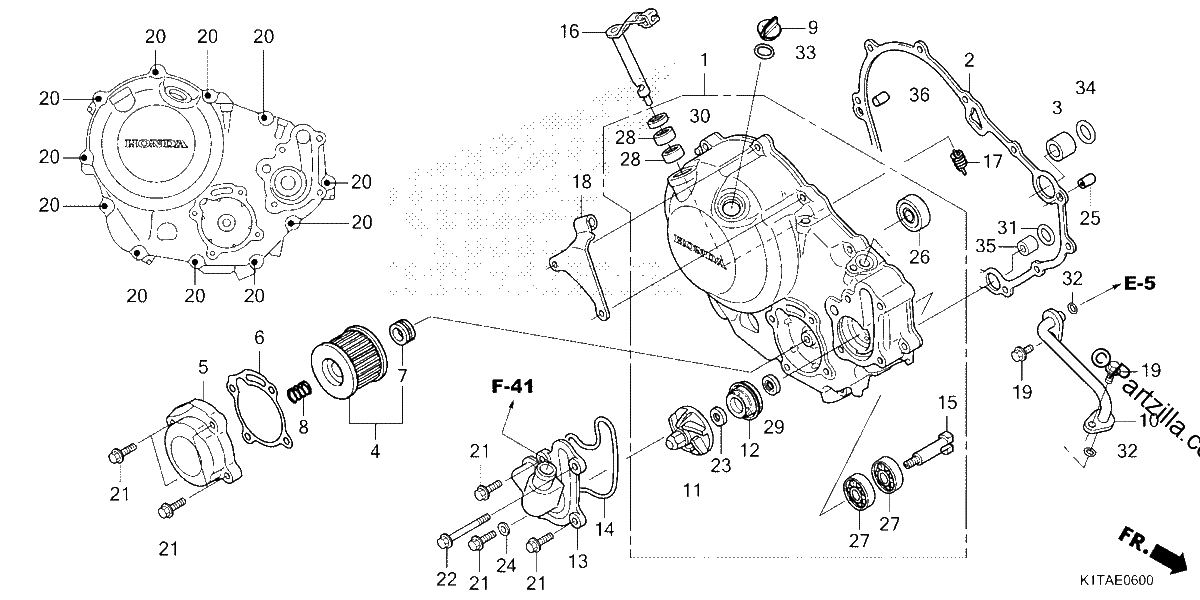

RIGHT CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER ASSY., R. CRANKCASE
$115.02¢57 511
#002
GASKET, Right CRANKCASE COVER
$10.66¢5 330
#003
COLLAR, OIL PASSAGE (18MM)
$3.36¢1 679
#004
ELEMENT, OIL FILTER
$3.36¢1 679
#005
COVER, OIL FILTER
$7.64¢3 818
#006
GASKET, OIL FILTER COVER
$6.12¢3 059
#007
RUBBER, FILTER
$3.74¢1 869
#008
SPRING, OIL FILTER ELEMENT SETTING
$4.74¢2 369
#009
CAP, OIL FILLER
$15.38¢7 688
#010
PIPE, WATER
$8.37¢4 186
#011
IMPELLER, WATER PUMP
$5.62¢2 812
#012
SEAL, MECHANICAL
$42.29¢21 143
#013
COVER, WATER PUMP
$9.88¢4 939
#014
GASKET, WATER PUMP COVER
$0.39¢196
#015
SHAFT, WATER PUMP
$12.97¢6 486
#016
LEVER, CLUTCH
$3.56¢1 783
#017
SPRING, CLUTCH LEVER
$4.66¢2 329
#018
RECEIVER, CLUTCH CABLE
$2.04¢1 018
#019
BOLT, FLANGE (6X16) (NSHF)
$0.56¢282
#020
BOLT, FLANGE (6X35) (NSHF)
$0.38¢190
#021
BOLT, FLANGE (6X25)
$0.56¢282
#022
BOLT, FLANGE (6X65) (NSHF)
$1.02¢512
#023
WASHER (7.2X13X1.2)
$2.77¢1 386
#023
WASHER (7X13X1.2)
$2.77¢1 386
#024
WASHER, SEALING (6.5MM)
$3.36¢1 679
#025
PIN, DOWEL (8X12)
$0.79¢397
#026
BEARING, RADIAL BALL SPECIAL (6001U)
$29.05¢14 525
#027
BEARING, RADIAL BALL (6001)
$11.64¢5 819
#027
BEARING, RADIAL BALL (6001) (FAG)
$3.36¢1 679
#028
BEARING, NEEDLE (12X16X10)
$11.50¢5 750
#028
BEARING, NEEDLE (12X16X10)
$9.34¢4 669
#028
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
#028
BEARING, NEEDLE (12X16X10)
$9.34¢4 669
#029
OIL SEAL (12X26X5)
$11.18¢5 589
#030
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
#031
O-RING (11.8X1.9)
$0.15¢75
#031
O-RING (11.8X1.9)
$0.53¢265
#032
O-RING (9.8X2.4)
$0.11¢57
#033
O-RING (18X3)
$3.36¢1 679
#034
O-RING (17.8X1.9)
$0.79¢397
#035
PIN A, DOWEL (12X16)
$2.69¢1 346
#036
PIN B, DOWEL (8X14)
$2.53¢1 265
