GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

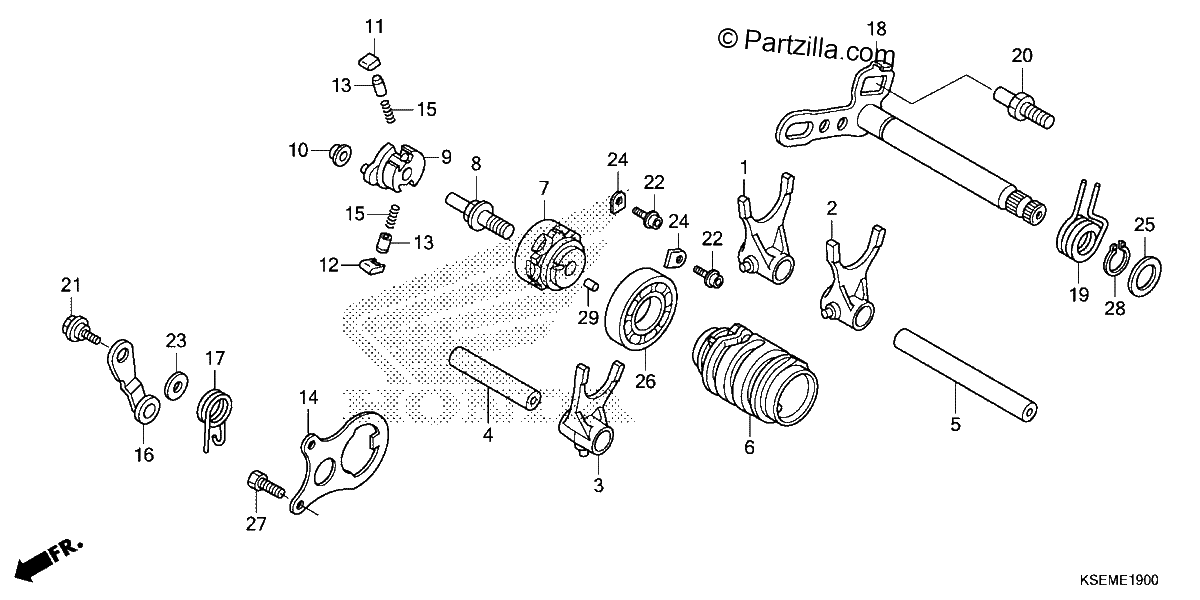

Diagrama de GEARSHIFT DRUM

Repuestos

#001
24211-KSE-670
FORK, R. GEARSHIFT
$71.47¢35 736
1
#002
24212-KSE-670
FORK, L. GEARSHIFT
$71.47¢35 736
1
#003
24213-KSE-670
FORK, CENTER GEARSHIFT
$67.40¢33 701
1
#004
24265-GC4-710
SHAFT, GEARSHIFT FORK MAIN
$22.82¢11 408
1
#005
24266-KSE-670
SHAFT C, SHIFT FORK
$17.95¢8 976
1
#006
24311-KSE-670
DRUM, GEARSHIFT
$85.89¢42 947
1
#007
24312-KA3-741
CENTER, GEARSHIFT DRUM
$69.17¢34 586
1
#008
24315-KA3-710
PIN, SHIFTER
$24.91¢12 455
1
#009
24321-KZ3-891
SHIFTER, GEARSHIFT DRUM
$63.85¢31 924
1
#010
24322-MM4-000
COLLAR, SHIFTER
$5.70¢2 852
1
#011
24324-KA3-711
PAWL A, RATCHET
$14.24¢7 119
1
#012
24325-KA3-711
PAWL B, RATCHET
$14.24¢7 119
1
#013
24326-KBH-901
PLUNGER, PAWL
$6.49¢3 243
1
#014
24328-GC4-730
PLATE, GUIDE
$23.18¢11 592
1
#015
24329-KA3-740
SPRING, PAWL PLUNGER
$3.36¢1 679
1
#016
24430-KA3-740
STOPPER, DRUM
$23.37¢11 684
1
#017
24435-KSE-670
SPRING, DRUM STOPPER
$3.36¢1 679
1
#018
24610-KSE-670
SPINDLE, GEARSHIFT
$86.10¢43 050
1
#019
24651-KSE-670
SPRING, SHIFT RETURN
$7.35¢3 674
1
#020
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.15¢4 577
1
#021
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#022
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#023
90435-HB3-000
WASHER (6.1MM)
$3.36¢1 679
1
#024
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#025
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#026
91004-KY4-900
BEARING, RADIAL BALL (6905U)
$24.44¢12 219
1
#027
93301-06016-0A
BOLT, HEX. (6X16)
$1.74¢868
1
#028
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#029
96220-40080
ROLLER (4X8)
$0.60¢299
1
