RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

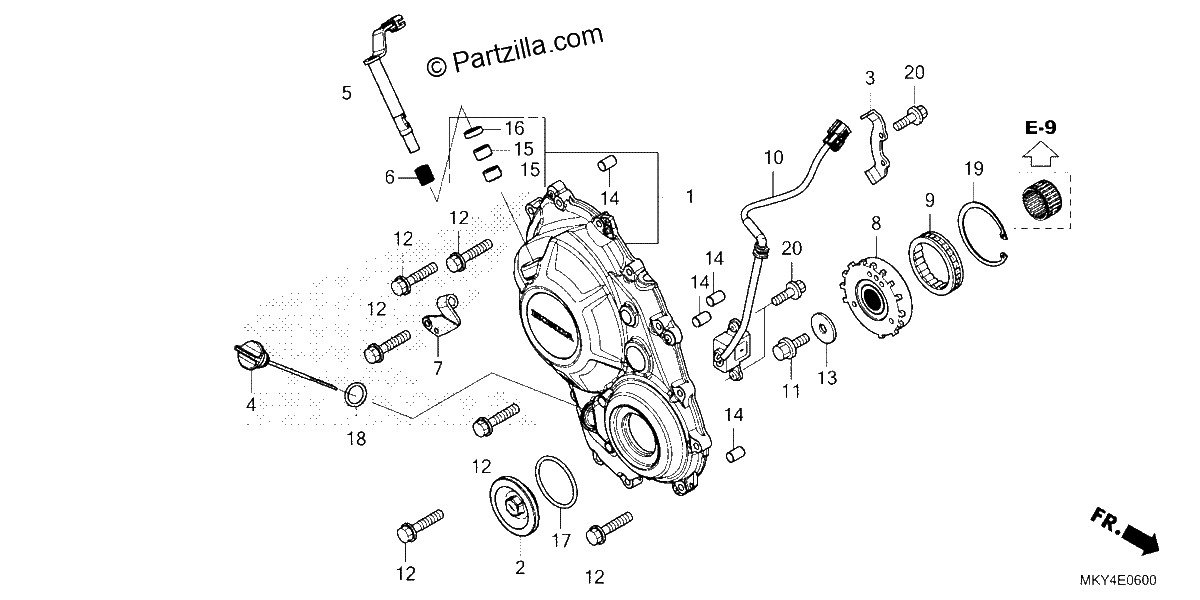

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-MKY-T10
COVER, R. CRANKCASE
$93.16¢46 581
1
#002
11332-MGZ-J00
CAP (45MM)
$23.79¢11 897
1
#003
11334-MJE-D00
CLAMP, PULSE GENERATOR CORD
$2.07¢1 035
1
#004
15650-MKN-D10
DIPSTICK, OIL
$8.46¢4 232
1
#005
22810-MKN-D10
LEVER, CLUTCH
$37.16¢18 578
1
#006
22815-MJE-D00
SPRING, CLUTCH LEVER
$1.30¢650
1
#007
22821-MKN-D10
RECEIVER, CLUTCH CABLE
$6.30¢3 151
1
#008
28115-MJE-D00
CLUTCH OUTER, STARTING
$160.82¢80 408
1
#009
28125-MJE-D01
CLUTCH, ONE-WAY
$99.22¢49 611
1
#010
30300-MJE-D01
GENERATOR ASSY., PULSE
$87.85¢43 924
1
#011
90013-430-000
BOLT, SPECIAL (10X25)
$7.21¢3 605
1
#012
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.30¢650
1
#013
90405-MJE-D00
WASHER (10.5X31.8)
$5.07¢2 536
1
#014
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#015
91053-MFJ-D01
BEARING, NEEDLE (12X16X10)
$4.76¢2 380
1
#016
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
1
#017
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#018
91307-KF0-003
O-RING (18X3) (ARAI)
$3.36¢1 679
1
#019
94520-63150
CIRCLIP (INNER) (63MM)
$4.36¢2 179
1
#020
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
