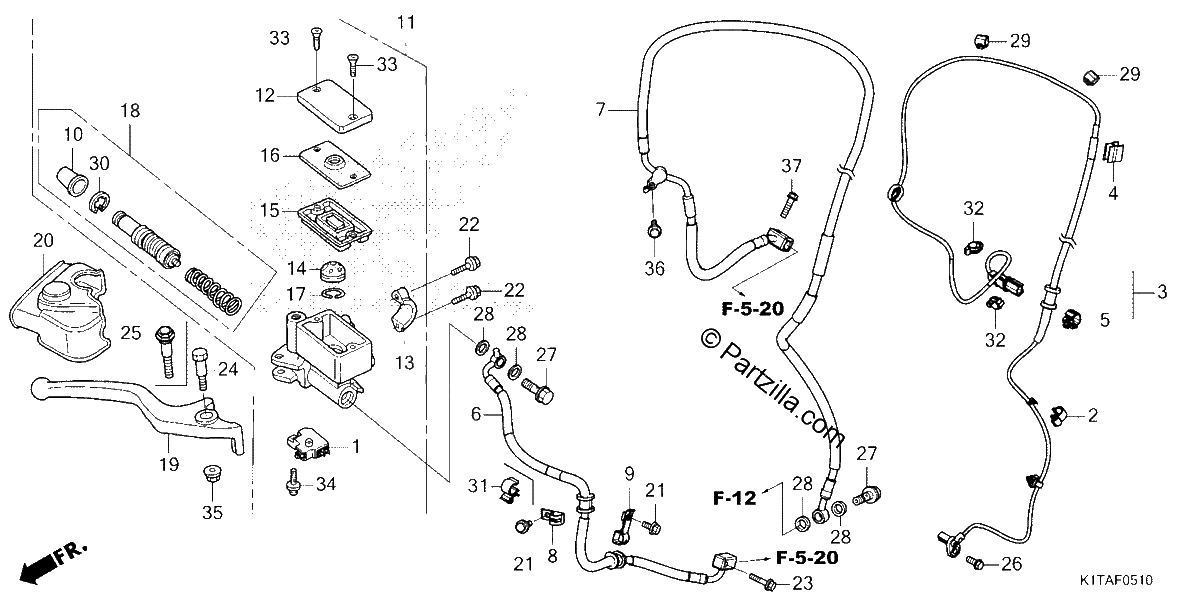

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#003
SENSOR, FR. WHEEL SPEED
$115.54¢57 769
#004
CLIP, ABS WIRE
$5.99¢2 994
#005
CLIP, CONNECTOR (DARK BLUE)
$3.75¢1 875
#006
HOSE A, FR. BRAKE
$59.24¢29 619
#007
HOSE D, Front BRAKE
$146.29¢73 144
#008
CLAMP, FR. BRAKE HOSE
$15.58¢7 788
#009
CLAMP B, FR. BRAKE HOSE
$9.53¢4 763
#010
BOOT
$14.24¢7 119
#011
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$87.07¢43 537
#011
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$87.07¢43 537
#012
CAP, MASTER CYLINDER
$31.97¢15 987
#013
HOLDER, MASTER CYLINDER
$15.74¢7 869
#014
SEPARATOR
$9.24¢4 619
#015
DIAPHRAGM
$12.31¢6 156
#016
PLATE, DIAPHRAGM
$12.60¢6 300
#017
RING
$3.65¢1 825
#018
MASTER CYLINDER SET
$46.40¢23 200
#019
LEVER, R. HANDLEBAR (COO)
$12.59¢6 294
#019
LEVER, R. HANDLEBAR
$12.59¢6 294
#021
BOLT, FLANGE (6X12)
$2.99¢1 494
#022
BOLT, FLANGE (6X22)
$2.99¢1 494
#023
BOLT, FLANGE (6X25)
$2.99¢1 494
#025
BOLT, LEVER PIVOT
$12.49¢6 244
#026
BOLT, FLANGE (6X14)
$0.74¢369
#027
BOLT, OIL (10X22)
$8.89¢4 444
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
BAND, RUBBER (35MM)
$3.65¢1 825
#030
CIRCLIP
$3.10¢1 550
#032
CLIP, CABLE (12MM)
$2.88¢1 438
#033
SCREW, FLAT (4X12)
$1.16¢581
#033
SCREW, FLAT (4X12)
$1.16¢581
#034
SCREW-WASHER (4X12)
$1.72¢862
#034
SCREW-WASHER (4X12)
$1.72¢862
#035
NUT, FLANGE (6MM)
$0.80¢400
#036
BOLT, FLANGE (6X18)
$1.63¢813
#037
BOLT, FLANGE (6X22)
$2.38¢1 188
