REAR FENDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

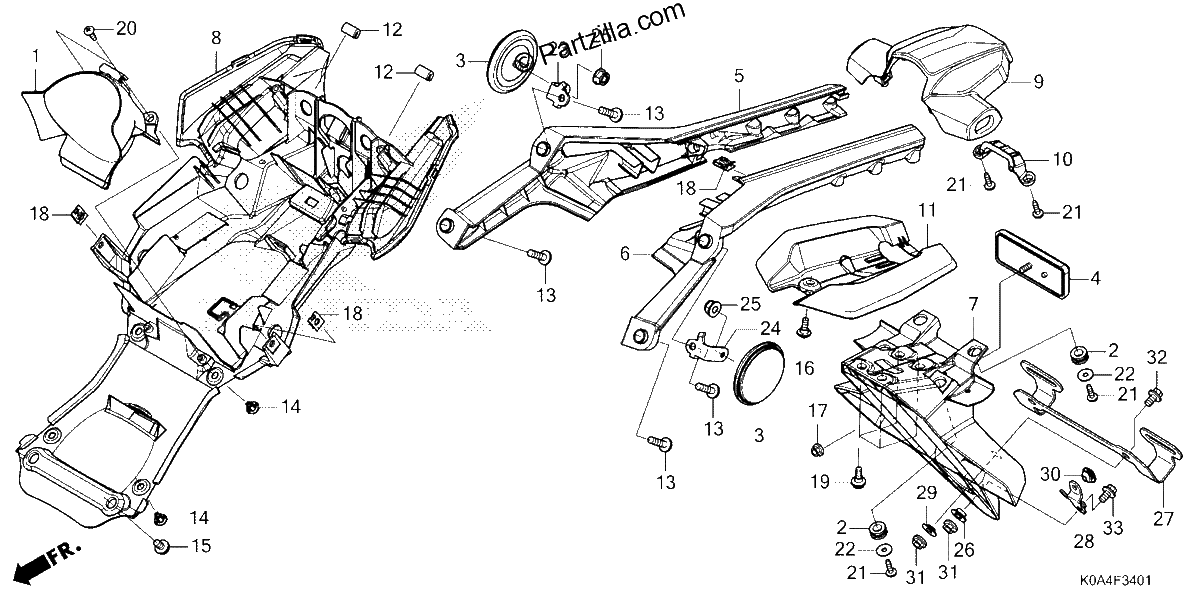

Diagrama de REAR FENDER 2

Repuestos

#001
17235-K0A-DB0
COVER, INLET DUCT
$0.58¢288
1
#002
19639-GBL-000
RUBBER, MOUNTING
$1.38¢688
1
#003
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#003
33741-KWN-901
REFLECTOR, REFLEX
$12.76¢6 381
1
#004
33742-KVJ-912
REFLECTOR, RR. REFLEX
$11.56¢5 781
1
#005
80111-K0A-EB0
STAY, R. RR. FENDER
$20.90¢10 450
1
#006
80112-K0A-EB0
STAY, L. RR. FENDER
$18.44¢9 219
1
#007
80121-K0A-DB0
FENDER A, RR.
$2.50¢1 250
1
#008
80131-K0A-DB0
FENDER B, RR.
$4.29¢2 144
1
#009
80141-K0A-DB0
COVER, LICENSE LIGHT
$1.13¢563
1
#010
80142-K0A-DB0
STAY, LICENSE LIGHT
$0.16¢81
1
#011
80151-K0A-DB0
COVER, RR. FENDER (LOWER)
$0.74¢369
1
#012
83515-KPH-700
RUBBER, TAIL COVER
$1.95¢975
1
#013
90120-K26-900
BOLT, SPECIAL (6X25)
$1.19¢594
1
#014
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#015
90132-KPP-T00
SCREW, PAN (6X10)
$1.11¢556
1
#016
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#017
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#018
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#019
91509-KWA-940
SCREW, PAN (5X13.5)
$1.72¢862
1
#020
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#021
93903-24480
SCREW, TAPPING (4X16)
$1.16¢581
1
#022
94103-04700
WASHER, PLAIN (4MM)
$1.21¢606
1
#023
80101-K0A-A00
STAY, R. REFLECTOR
$19.26¢9 631
1
#024
80102-K0A-A00
STAY, L. REFLECTOR
$19.26¢9 631
1
#025
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
