CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

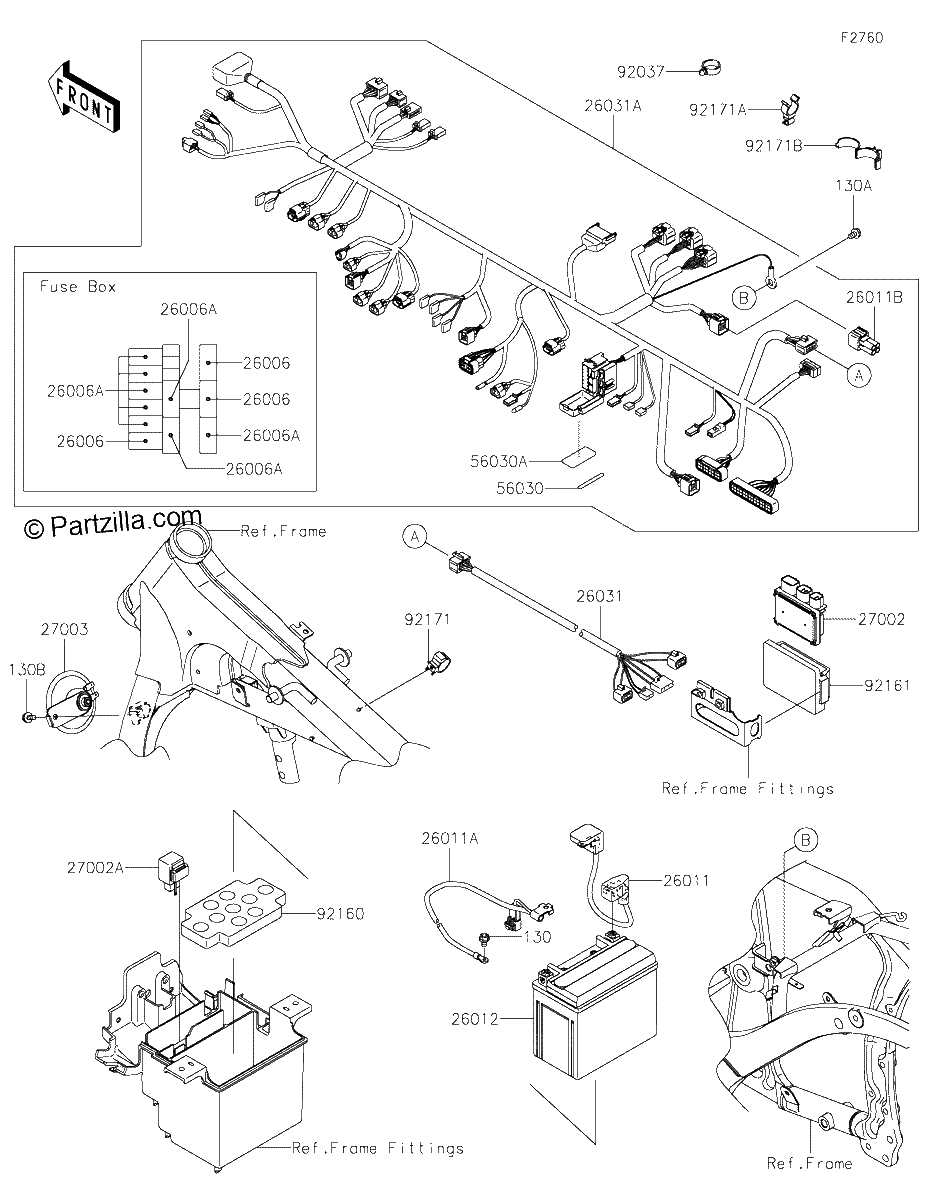

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130B
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-0089
WIRE-LEAD,BATTERY(+)
$56.25¢28 125
1
#26011B
26011-0271
WIRE-LEAD,CAP
$16.38¢8 188
1
#26011A
26011-0090
WIRE-LEAD,BATTERY(-)
$36.35¢18 175
1
#26012
26012-1514
BATTERY,YTX12 BS,12V 10AH
$151.31¢75 656
1
#26031
26031-2233
HARNESS,Rear
$77.64¢38 819
1
#26031A
26031-2234
HARNESS,MAIN
$798.82¢399 412
1
#27002A
27002-1101
RELAY Assembly,TURN SIGNAL
$87.74¢43 869
1
#27002
27002-0050
RELAY Assembly
$162.96¢81 481
1
#27003
27003-0039
HORN
$77.64¢38 819
1
#56030A
56030-0046
LABEL,FUSE BOX
$6.01¢3 006
1
#56030
56030-0016
LABEL,FUSE BOX
$6.25¢3 125
1
#92037
92037-1827
CLAMP,HOSE
$7.41¢3 706
1
#92160
92160-1635
DAMPER,BATTERY
$34.15¢17 075
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92171A
92171-0347
CLAMP,CABLE
$5.74¢2 869
1
#92171
92171-0081
CLAMP,20MM DIA.
$4.39¢2 194
1
#92171B
92171-1423
CLAMP,10MM DIA.
$4.39¢2 194
1
