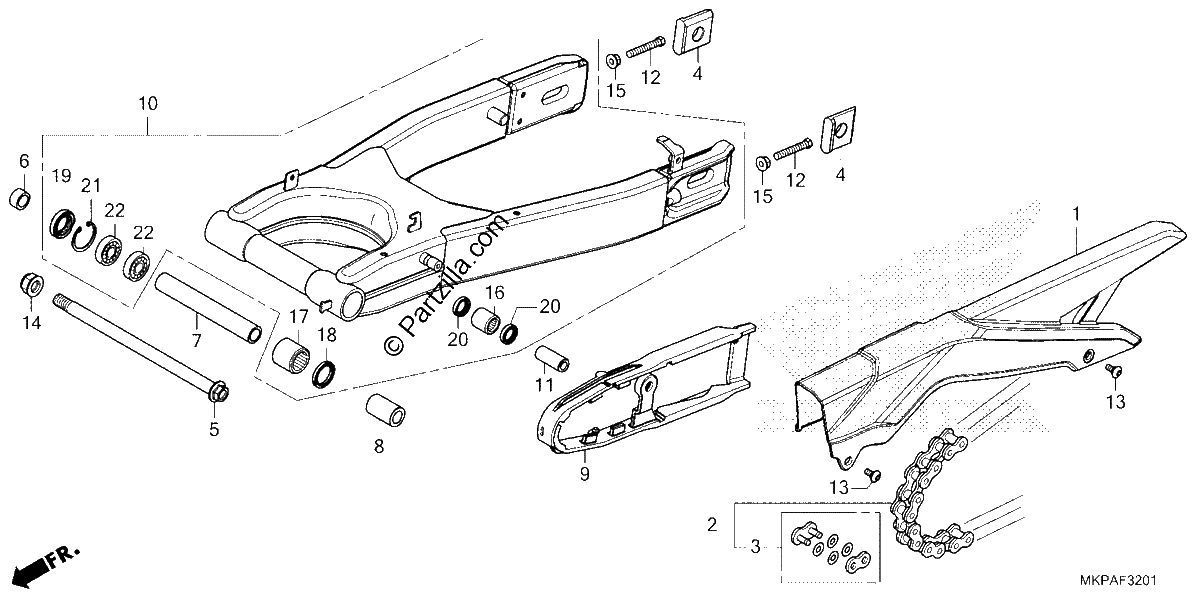

SWINGARM CBR500RA 39 22 39 23
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$22.63¢11 316
#002
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
#002
CHAIN, DRIVE (RK520MOZX-120LJFZ) (RK) (STANDARD LINK 110L)
$305.67¢152 835
#003
MASTER LINK (DAIDO)
$15.55¢7 774
#003
MASTER LINK (RK)
$26.32¢13 162
#004
COLLAR, RR. AXLE
$27.52¢13 760
#005
BOLT, SWINGARM PIVOT
$11.09¢5 543
#006
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
#007
COLLAR, CENTER PIVOT DISTANCE
$13.33¢6 664
#008
COLLAR, L PIVOT DISTANCE
$19.00¢9 499
#009
SLIDER, CHAIN
$21.91¢10 954
#010
SWINGARM SUB-ASSY., RR.
$334.57¢167 285
#011
COLLAR, CUSHION CONNECTING ROD
$6.13¢3 065
#012
BOLT, HEX. (8X50)
$2.86¢1 432
#013
SCREW, SPECIAL (6X14)
$1.59¢793
#014
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
#015
NUT, HEX. (8MM)
$3.79¢1 897
#016
BEARING, NEEDLE (17X24X25)
$5.67¢2 835
#017
BEARING, NEEDLE (NTN)
$28.69¢14 346
#018
DUST SEAL (25X33X4)
$7.76¢3 881
#019
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
#019
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
#020
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
#021
CIRCLIP, INNER (35MM)
$2.30¢1 150
#022
BEARING, RADIAL BALL (6202)
$15.59¢7 797
