MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

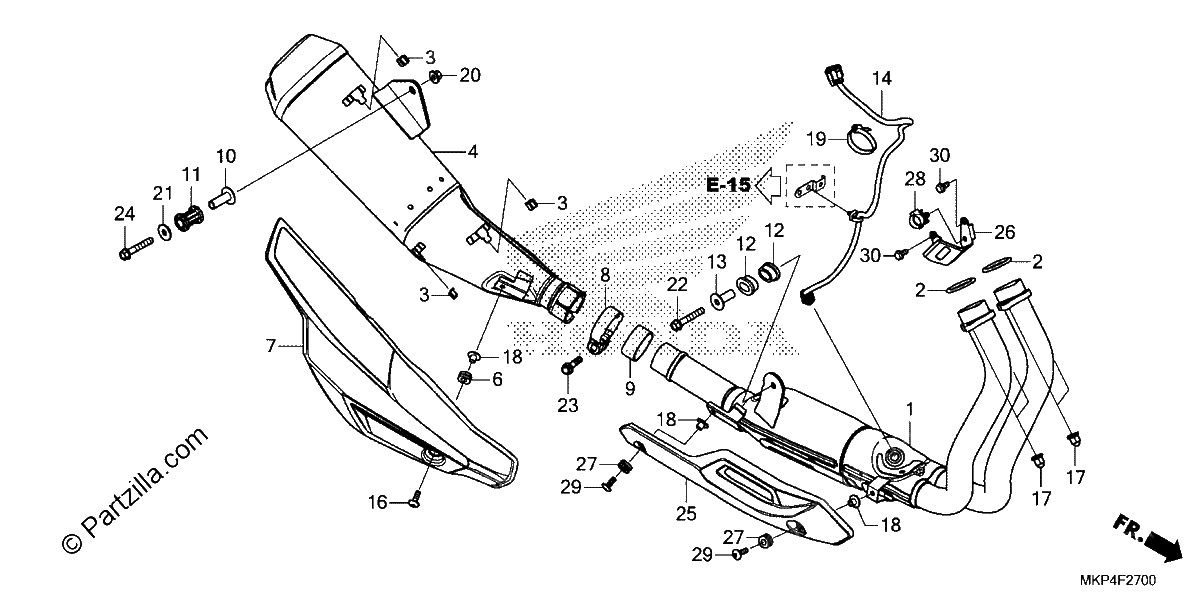

Diagrama de MUFFLER

Repuestos

#001
18150-MKP-AQ0
PIPE, EX.
$1734.20¢867 100
1
#002
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#003
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#004
18310-MKP-DQ0
MUFFLER
$359.25¢179 624
1
#006
18320-196-000
RUBBER A, PROTECTOR
$3.16¢1 581
1
#007
18350-MJW-J00
COVER, MUFFLER
$111.14¢55 568
1
#008
18376-413-000
BAND, L. RR. MUFFLER
$39.21¢19 607
1
#009
18391-MJW-J01
GASKET, MUFFLER
$11.59¢5 796
1
#010
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$5.59¢2 794
1
#011
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.21¢1 104
1
#012
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$9.50¢4 749
1
#013
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$5.86¢2 932
1
#014
36533-MKP-D01
SENSOR, AIR FUEL RATIO
$189.57¢94 783
1
#016
90118-MGZ-J00
SCREW, PAN (6X20)
$1.26¢633
1
#017
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#018
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#019
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#020
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#021
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#022
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
#023
96400-08035-04
BOLT, FLANGE (8X35)
$0.76¢380
1
#024
95801-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
#024
96400-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
#025
18180-MKP-J40ZB
COVER, EX. MANIFOLD *NH303M*(MAT AXIS GRAY METALLIC)
$31.79¢15 893
1
#026
18190-MGZ-J40
COVER, SENSOR
$27.39¢13 696
1
#027
18195-MJW-J40
RUBBER, COVER MOUNT
$4.57¢2 283
1
#028
53781-SE0-952
CLIP, RETURN HOSE
$8.97¢4 485
1
#029
90119-MJW-J40
SCREW, PAN (6X20)
$1.12¢558
1
#030
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
