TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

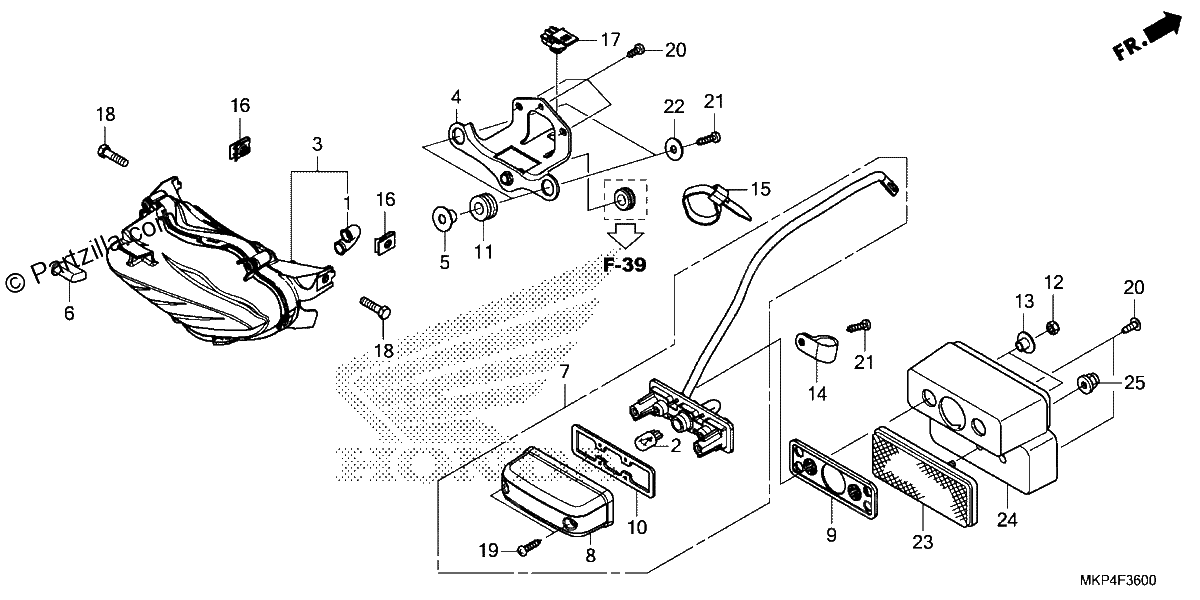

Diagrama de TAILLIGHT

Repuestos

#001
33113-MJW-J80
TUBE, VENT
$1.06¢529
1
#002
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.24¢2 122
1
#003
33701-MJW-A81
TAILLIGHT UNIT
$293.99¢146 993
1
#004
33702-MJW-J80
STAY, TAILLIGHT
$7.61¢3 807
1
#005
33705-MGZ-J00
COLLAR, TAILLIGHT
$1.79¢897
1
#006
33706-MFN-D00
SUSPENSION, TAILLIGHT
$1.06¢529
1
#007
33720-MGZ-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$61.57¢30 785
1
#007
33720-MGZ-A01
LIGHT ASSY., LICENSE (12V 5W)
$61.57¢30 785
1
#008
33722-K26-305
COVER, LICENSE (COO)
$12.14¢6 072
1
#008
33722-KWN-901
COVER, LICENSE
$12.14¢6 072
1
#009
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.07¢2 536
1
#010
33729-MCZ-003
GASKET, LENS
$11.21¢5 606
1
#011
83545-KCJ-690
RUBBER, SIDE COVER
$1.66¢828
1
#012
90302-KVB-T01
NUT, U (5MM)
$2.13¢1 064
1
#013
90505-MGZ-A00
COLLAR
$2.06¢1 029
1
#014
90628-750-000
CLIP (14MM)
$2.61¢1 305
1
#015
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#016
90677-KAN-T00
NUT, CLIP (5MM)
$0.76¢380
1
#017
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#018
92101-05020-0A
BOLT, HEX. (5X20)
$1.38¢690
1
#019
93901-24480
SCREW, TAPPING (4X16)
$0.98¢489
1
#020
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#021
93903-24420
SCREW, TAPPING (4X16)
$1.07¢535
1
#022
94103-04000
WASHER, PLAIN (4MM)
$0.85¢426
1
#023
33741-KPL-902
REFLECTOR, REFLEX
$8.22¢4 111
1
#024
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.15¢4 577
1
#025
90301-KWN-901
NUT, U (5MM)
$0.79¢397
1
