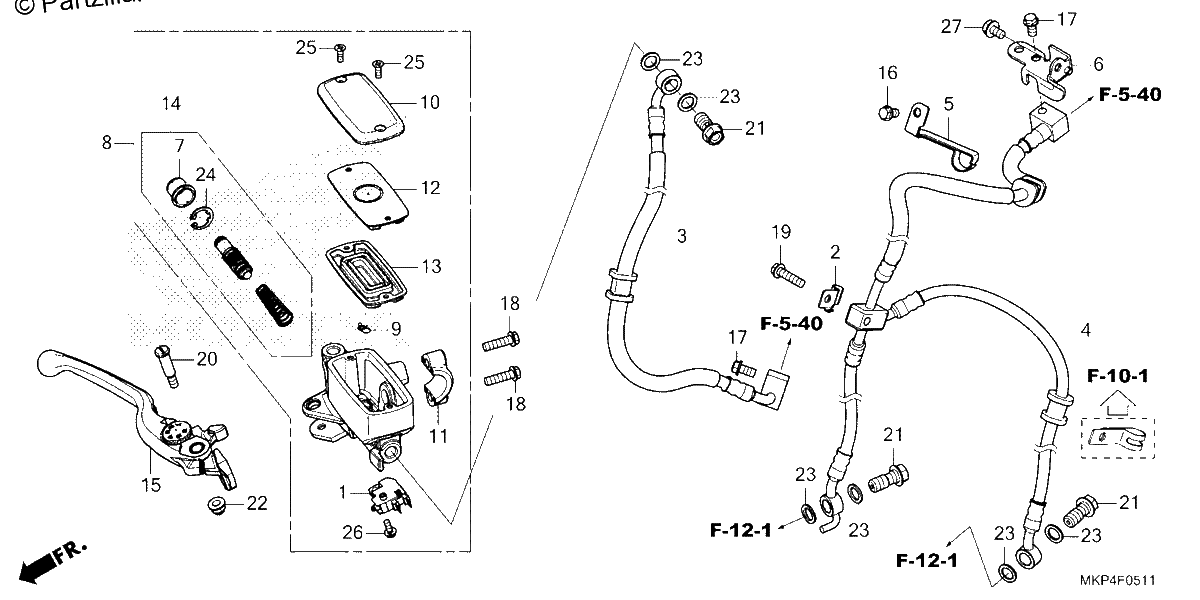

FRONT BRAKE MASTER CYLINDER CB500XA 39 22 39 23
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
CLAMP B, SENSOR WIRE
$2.13¢1 064
#003
HOSE A, FR. BRAKE
$32.99¢16 497
#004
HOSE B, FR. BRAKE
$121.82¢60 910
#005
CLAMP A, FR. BRAKE HOSE
$4.60¢2 300
#006
STAY, FR. BRAKE HOSE
$5.76¢2 881
#007
BOOT
$13.10¢6 549
#008
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$125.94¢62 968
#008
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$125.94¢62 968
#009
PROTECTOR
$4.78¢2 392
#010
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#011
HOLDER, MASTER CYLINDER
$14.48¢7 239
#012
PLATE, DIAPHRAGM
$11.37¢5 687
#013
DIAPHRAGM
$16.26¢8 131
#014
MASTER CYLINDER SET
$42.69¢21 344
#015
LEVER ASSY., R. HANDLE
$54.34¢27 169
#016
BOLT, FLANGE (6X10)
$5.30¢2 651
#017
BOLT, FLANGE (6X12)
$2.75¢1 374
#018
BOLT, FLANGE (6X22)
$2.75¢1 374
#019
BOLT, FLANGE (6X23.5)
$1.45¢724
#020
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#021
BOLT, OIL (10X22)
$8.18¢4 088
#022
NUT, CAP (6MM)
$3.36¢1 679
#023
WASHER, OIL BOLT
$4.46¢2 231
#024
CIRCLIP
$2.85¢1 426
#025
SCREW, FLAT (4X12)
$1.07¢535
#025
SCREW, FLAT (4X12)
$1.07¢535
#026
SCREW-WASHER (4X12)
$1.59¢793
#026
SCREW-WASHER (4X12)
$1.59¢793
#027
BOLT, FLANGE (6X10)
$1.92¢960
