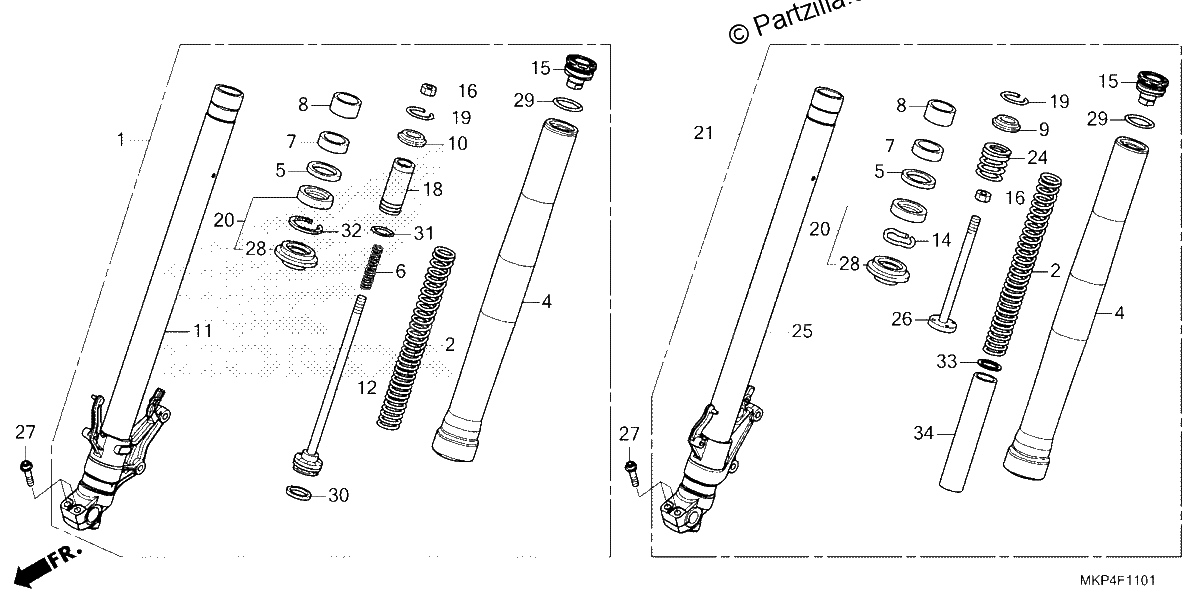

FRONT FORK CB500XA 39 22 39 23
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK ASSY., R. FR.
$745.82¢372 912
#002
SPRING, FR. FORK
$28.56¢14 281
#004
TUBE (OUTER)
$278.78¢139 388
#005
RING, BACK-UP (SHOWA)
$11.29¢5 644
#006
SPRING, R. REBOUND
$3.50¢1 750
#007
BUSH, GUIDE
$8.80¢4 400
#008
BUSH, SLIDER
$8.80¢4 400
#009
SEAT, STOPPER
$11.90¢5 950
#010
SEAT, R. STOPPER
$8.26¢4 131
#011
PIPE, R. SLIDE
$396.19¢198 094
#012
ROD, PISTON
$63.75¢31 875
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#015
BOLT, FR. FORK
$103.69¢51 844
#016
NUT, HEX.
$17.63¢8 813
#018
CASE, ROD GUIDE
$55.60¢27 800
#019
RING, STOPPER
$2.88¢1 438
#020
SEAL SET, FR. FORK
$29.18¢14 588
#021
FORK ASSY., L. FR.
$686.21¢343 106
#024
SPRING, L. REBOUND
$5.39¢2 694
#025
PIPE, L. SLIDE
$384.84¢192 419
#026
ROD
$63.78¢31 888
#027
BOLT, FLANGE SOCKET (8X35)
$2.31¢1 156
#028
DUST SEAL
$12.39¢6 194
#029
O-RING (39.7X2.4)
$2.73¢1 363
#030
RING, PISTON
$1.79¢894
#031
O-RING (33.2X2.4)
$4.56¢2 281
#032
CIRCLIP (INNER)
$5.64¢2 819
#033
JOINT, SPRING
$4.04¢2 019
#034
COLLAR B, SPRING
$17.44¢8 719
