FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

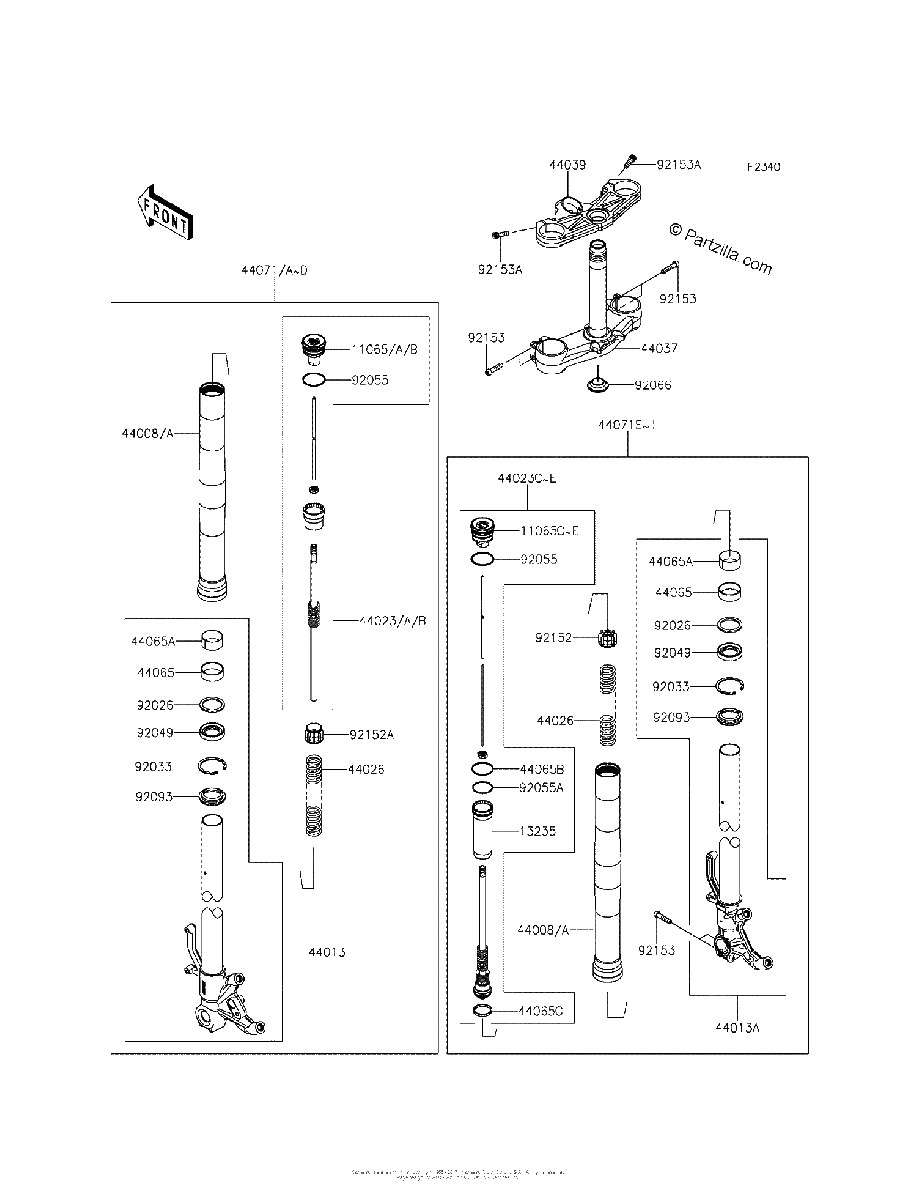

Diagrama de FRONT FORK

Repuestos

#11065
11065-0793-10B
CAP,Left Hand,P RED
$152.28¢76 142
1
#11065
11065-0793-11G
CAP,LH,GRAY
$149.50¢74 750
1
#11065
11065-0793-48W
CAP,Left Hand,G B GREEN
$165.50¢82 748
1
#11065C
11065-0794-10B
CAP,Right Hand,P RED
$152.28¢76 142
1
#11065C
11065-0794-11G
CAP,Right Hand,GRAY
$149.50¢74 750
1
#11065C
11065-0794-48W
CAP,Right Hand,G B GREEN
$165.50¢82 748
1
#13235
13235-0008
GUIDE COMP,ROD
$101.51¢50 755
1
#44008
44008-0063-484
PIPE FORK OUTER,R GOLD
$456.18¢228 091
1
#44008A
44008-0063-499
PIPE FORK OUTER,A BLACK
$456.18¢228 091
1
#44008
44008-0063-499
PIPE FORK OUTER,A BLACK
$456.18¢228 091
1
#44013A
44013-0207
PIPE-FORK INNER,RH
$686.75¢343 373
1
#44013
44013-0206
PIPE FORK INNER,Left Hand
$693.68¢346 840
1
#44023
44023-0110-10B
CYLINDER SET FORK,Left Hand,P RED
$400.82¢200 410
1
#44023
44023-0110-11G
CYLINDER SET FORK,Left Hand,GRAY
$416.02¢208 012
1
#44023
44023-0110-48W
CYLINDER SET FORK,Left Hand,G B GREEN
$400.82¢200 410
1
#44023C
44023-0111-10B
CYLINDER SET FORK,Right Hand,P RED
$746.60¢373 302
1
#44023C
44023-0114-11G
CYLINDER-SET-FORK,RH,GRAY
$733.04¢366 522
1
#44023C
44023-0114-48W
CYLINDER SET FORK,Right Hand,G B GREEN
$762.55¢381 277
1
#44026
44026-0174
SPRING-FRONT FORK
$80.99¢40 497
1
#44037
44037-0136
HOLDER-FORK UNDER
$862.65¢431 325
1
#44039
44039-0123-499
HOLDER FORK UPPER,A BLACK
$377.07¢188 537
1
#44065C
44065-0045
BUSHING-FRONT FORK
$9.23¢4 617
1
#44065B
44065-0033
BUSHING-FRONT FORK
$6.89¢3 444
1
#44065
44065-0030
BUSHING FRONT FORK,GUIDE
$19.95¢9 976
1
#44065A
44065-0031
BUSHING FRONT FORK,SLIDE
$19.95¢9 976
1
#44071
44071-0834-39U
DAMPER-ASSY,LH,GOLD+RED
$1368.22¢684 112
1
#44071
44071-0834-39V
DAMPER Assembly,Left Hand,BLACK+RED
$1368.22¢684 112
1
#44071
44071-0834-48M
DAMPER Assembly,Left Hand,BLACK+GRAY
$1461.02¢730 509
1
#44071
44071-0834-50F
DAMPER Assembly,Left Hand,GOLD+GREEN
$1569.42¢784 708
1
#44071
44071-0834-50H
DAMPER Assembly,Left Hand,BLACK+GREEN
$1368.22¢684 112
1
#44071E
44071-0835-39U
DAMPER Assembly,Right Hand,GOLD+RED
$1537.50¢768 752
1
#44071F
44071-0835-39V
DAMPER Assembly,Right Hand,BLACK+RED
$1665.86¢832 928
1
#44071E
44071-0835-39V
DAMPER Assembly,Right Hand,BLACK+RED
$1665.86¢832 928
1
#44071E
44071-0911-48M
DAMPER Assembly,Right Hand,BLACK+GRAY
$1635.56¢817 782
1
#44071E
44071-0911-50F
DAMPER Assembly,Right Hand,GOLD+GREEN
$1877.92¢938 958
1
#44071E
44071-0911-50H
DAMPER Assembly,Right Hand,BLACK+GREEN
$1537.50¢768 752
1
#44071A
44071-0834-39V
DAMPER Assembly,Left Hand,BLACK+RED
$1368.22¢684 112
1
#92026
92026-1276
SPACER,FORK OUTER
$8.68¢4 341
1
#92033
92033-0729
RING SNAP
$7.12¢3 559
1
#92049
92049-0125
SEAL-OIL
$25.62¢12 811
1
#92055
92055-0142
RING O
$3.58¢1 788
1
#92055A
92055-0174
RING-O
$3.38¢1 691
1
#92066
92066-0032
PLUG
$12.05¢6 026
1
#92093
92093-0035
SEAL,DUST
$24.84¢12 420
1
#92152
92152-0757
COLLAR
$16.66¢8 332
1
#92152A
92152-1888
COLLAR
$17.31¢8 654
1
#92153
92153-0854
BOLT,SOCKET,8X35
$7.16¢3 582
1
#92153A
92153-1625
BOLT,SOCKET,8X25
$4.24¢2 122
1
