MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

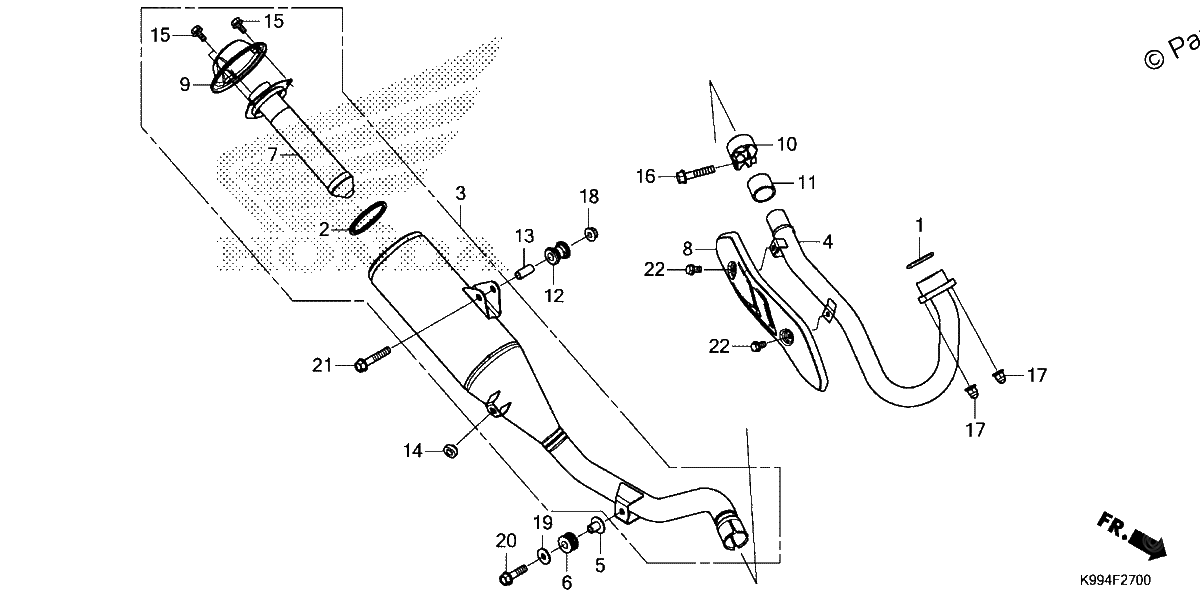

Diagrama de MUFFLER

Repuestos

#001
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#002
18292-MV4-000
GASKET, MUFFLER
$9.34¢4 669
1
#003
18300-K99-A00
MUFFLER ASSY.
$438.00¢219 000
1
#004
18320-K99-A00
PIPE, EX.
$59.97¢29 986
1
#005
18327-KRH-D20
COLLAR, RR. CHAMBER (8.5X15)
$1.09¢546
1
#006
18328-KRH-D20
RUBBER, Rear CHAMBER MOUNTING
$1.45¢724
1
#007
18340-K99-A00
ARRESTER, MUFFLER
$246.49¢123 246
1
#008
18345-K99-A00ZA
PROTECTOR, EX. PIPE *NH106*(HEATPROOF BLACK)
$16.57¢8 286
1
#009
18360-K99-A00
COVER, MUFFLER TAIL
$87.42¢43 711
1
#010
18373-K99-A00
BAND, EX. PIPE
$8.11¢4 054
1
#011
18391-MB0-891
GASKET, EX.
$19.14¢9 568
1
#012
18421-KFB-000
RUBBER, MUFFLER MOUNTING
$5.01¢2 507
1
#013
18422-KFB-000
COLLAR, MUFFLER MOUNTING
$5.28¢2 639
1
#014
83512-KPS-730
RUBBER, SIDE COVER
$1.86¢932
1
#015
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#015
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#016
90102-KVK-900
BOLT, FLANGE (8X38)
$2.86¢1 432
1
#017
90308-KRM-860
NUT, HEX CAP (8MM)
$2.06¢1 029
1
#018
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#019
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#020
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#021
95701-08045-07
BOLT, FLANGE (8X45)
$2.56¢1 282
1
#022
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
