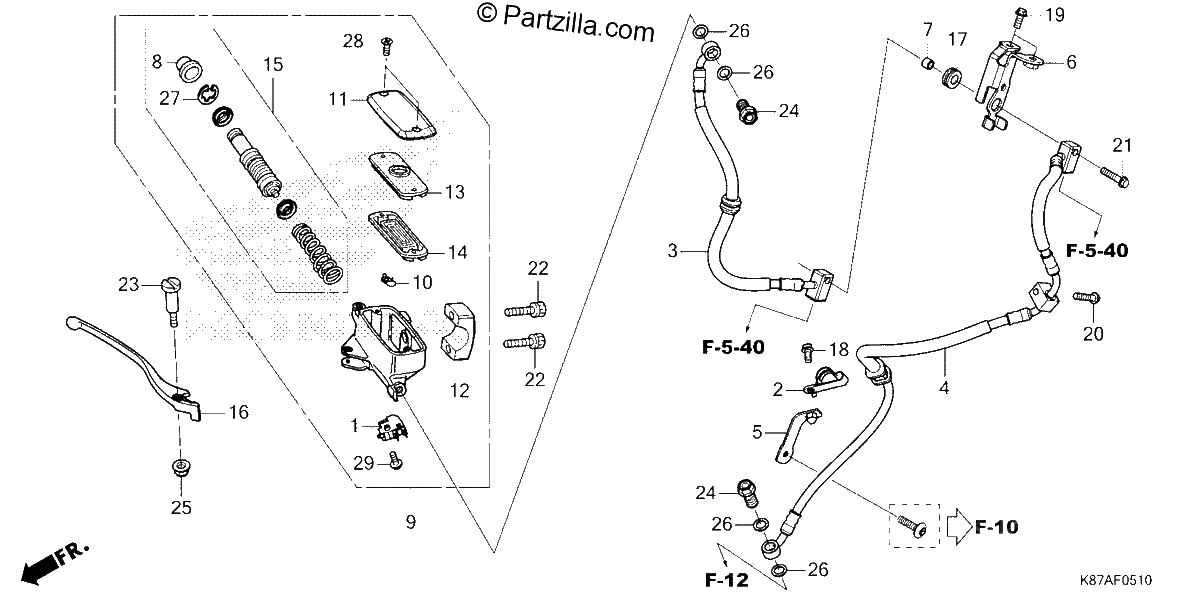

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, BRAKE HOSE
$3.95¢1 975
#003
HOSE A, FR. BRAKE
$53.30¢26 650
#004
HOSE D, Front BRAKE
$101.86¢50 931
#005
STAY, Front BRAKE HOSE
$4.90¢2 450
#006
STAY B, FR. BRAKE HOSE
$14.45¢7 225
#007
COLLAR, BRAKE HOSE STAY
$2.11¢1 056
#008
BOOT
$14.24¢7 119
#009
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$145.75¢72 875
#010
PROTECTOR
$5.20¢2 600
#011
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#012
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
#013
PLATE, DIAPHRAGM
$12.36¢6 181
#014
DIAPHRAGM
$17.68¢8 838
#015
MASTER CYLINDER SET, Front. (NISSIN)
$25.78¢12 888
#016
LEVER, Right HANDLE
$19.06¢9 531
#017
GROMMET, MAIN PIPE COVER
$1.25¢625
#018
BOLT, FLANGE (6X10)
$5.76¢2 881
#019
BOLT, FLANGE (6X12)
$2.99¢1 494
#020
BOLT, FLANGE (6X28)
$1.27¢638
#021
BOLT, FLANGE (6X32)
$1.21¢606
#022
BOLT, SOCKET (6X22)
$1.27¢638
#023
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#024
BOLT, OIL (10X22)
$8.89¢4 444
#025
NUT, FLANGE (6MM)
$0.80¢400
#026
WASHER, OIL BOLT
$4.85¢2 425
#027
CIRCLIP, INNER (18.8MM)
$0.88¢438
#028
SCREW, FLAT (4X12)
$1.16¢581
#028
SCREW, FLAT (4X12)
$1.16¢581
#029
SCREW-WASHER (4X12)
$1.72¢862
#029
SCREW-WASHER (4X12)
$1.72¢862
