OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

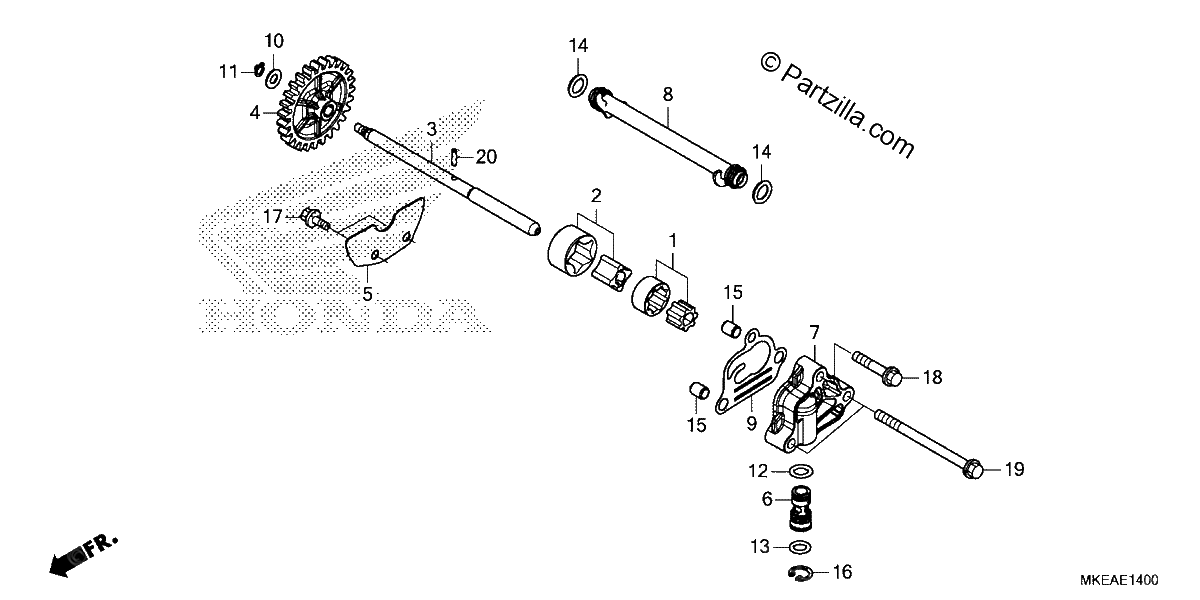

Diagrama de OIL PUMP

Repuestos

#001
15021-958-000
ROTOR SET, OIL PUMP
$37.65¢18 825
1
#002
15021-MKE-A00
ROTOR SET, OIL PUMP
$32.37¢16 186
1
#003
15111-MKE-A50
SHAFT, OIL PUMP
$84.92¢42 458
1
#004
15130-MKE-A00
GEAR, OIL PUMP DRIVEN (27T)
$57.86¢28 928
1
#005
15202-MKE-A00
GUIDE PLATE, OIL PUMP GEAR
$4.15¢2 076
1
#006
15220-MKE-AA0
VALVE Assembly., RELIEF
$46.15¢23 075
1
#007
15310-MKE-A00
COVER, OIL PUMP
$69.22¢34 609
1
#008
15311-MKE-A50
PIPE, OIL PASSAGE
$24.60¢12 299
1
#009
15351-MKE-A01
GASKET, OIL PUMP COVER
$1.39¢696
1
#010
90443-MEL-000
WASHER (6MM)
$2.83¢1 414
1
#011
90603-MKE-A00
CIRCLIP (6MM)
$2.27¢1 133
1
#012
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#013
91305-K95-AA1
O-RING (9.8X1.9)
$3.42¢1 708
1
#014
91309-ML7-003
O-RING (9.6X2.6) (ARAI)
$2.75¢1 374
1
#015
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#016
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#017
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#018
95701-06030-00
BOLT, FLANGE (6X30)
$2.22¢1 110
1
#019
95701-06085-00
BOLT, FLANGE (6X85)
$2.04¢1 018
1
#020
96220-30118
ROLLER (3X11.8)
$3.99¢1 995
1
