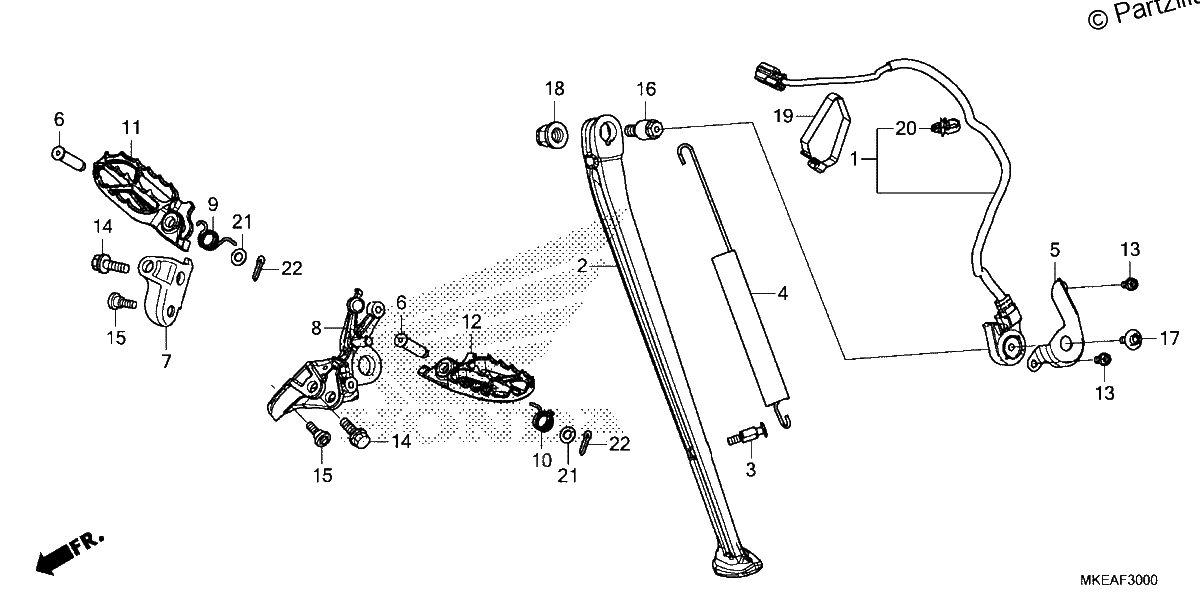

STEP STAND
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., SIDE STAND
$102.85¢51 425
#002
BAR, SIDE STAND
$232.34¢116 169
#003
HOOK, SIDE STAND SPRING
$14.47¢7 238
#004
SPRING ASSY., SIDE STAND
$27.03¢13 513
#005
GUARD, SIDE STAND SWITCH
$8.11¢4 056
#006
PIN, STEP JOINT
$4.44¢2 219
#007
BRACKET, R. STEP
$36.92¢18 463
#008
BRACKET, L. STEP
$217.73¢108 863
#009
SPRING, R. STEP RETURN
$4.63¢2 313
#010
SPRING, L. STEP RETURN
$4.63¢2 313
#011
ARM, Right STEP
$56.16¢28 081
#012
ARM, L. STEP
$55.75¢27 875
#013
BOLT, FLANGE (6X10)
$2.73¢1 363
#014
BOLT, STEP (12MM)
$3.75¢1 875
#015
BOLT, STEP BRACKET
$3.65¢1 825
#016
BOLT, SIDE STAND PIVOT
$15.58¢7 788
#017
BOLT, SPECIAL (6X16)
$0.71¢356
#018
NUT, U (10MM) (FUSE RASHI)
$4.45¢2 225
#019
BAND, SUCTION HOSE (BLACK)
$4.58¢2 288
#020
CLIP, HARNESS BAND (145MM) (BLACK)
$4.01¢2 006
#021
WASHER, PLAIN (8MM)
$1.21¢606
#022
PIN, SPLIT (2.5X15)
$1.34¢669
#022
PIN, SPLIT (2.5X20)
$1.34¢669
#022
PIN, SPLIT (2.5X25)
$1.34¢669
#022
PIN, SPLIT (2.5X30)
$1.34¢669
