THERMOSTAT HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

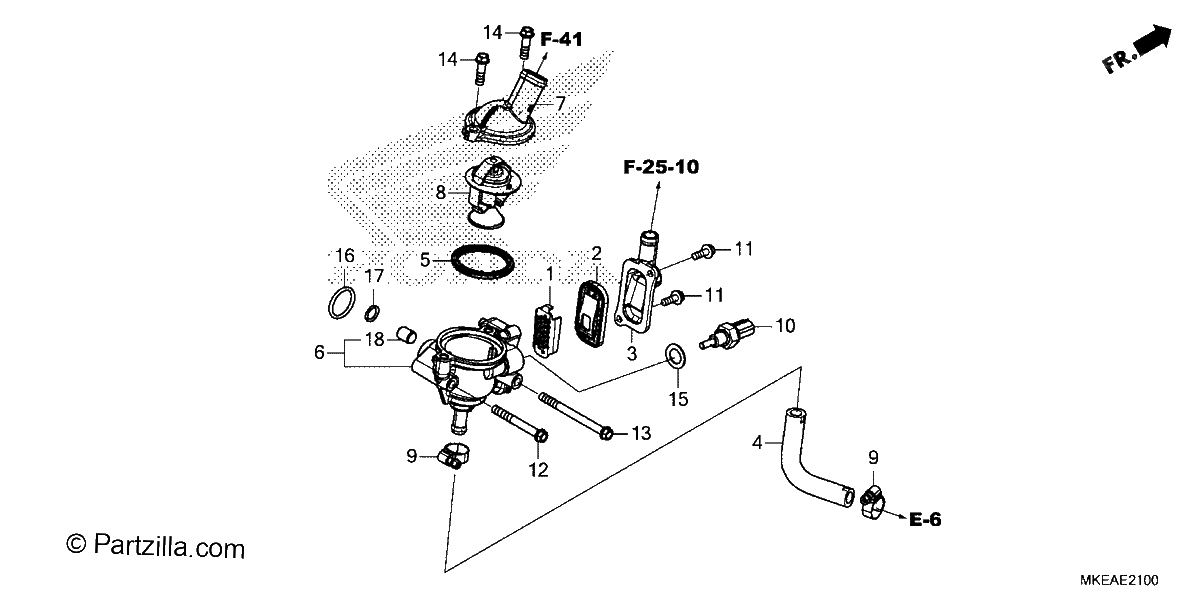

Diagrama de THERMOSTAT HOSE

Repuestos

#001
12341-MAT-750
PLATE, PORT (AI)
$18.01¢9 006
1
#002
18601-MCF-003
VALVE, REED
$36.60¢18 300
1
#003
18612-MBA-601
COVER, REED VALVE
$18.61¢9 306
1
#004
19066-MKE-A50
HOSE, WATER BYPASS
$5.47¢2 738
1
#005
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#006
19310-MKE-A50
CASE, THERMOSTAT
$122.56¢61 281
1
#007
19315-MKE-A50
COVER, THERMOSTAT
$23.32¢11 663
1
#008
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#009
19507-MK4-620
CLAMP, BREATHER HOSE
$11.03¢5 513
1
#010
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#011
90003-MEL-000
BOLT, FLANGE (5X14)
$1.72¢862
1
#012
90020-GHB-760
BOLT, FLANGE (6X50)
$3.65¢1 825
1
#013
90020-GHB-800
BOLT, FLANGE (6X70)
$4.45¢2 225
1
#014
90022-MKE-A00
BOLT, FLANGE (6X20) (SH)
$2.99¢1 494
1
#015
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#016
91301-MB6-003
O-RING (21.9X2.5)
$2.73¢1 363
1
#017
91305-K95-AA1
O-RING (9.8X1.9)
$3.71¢1 856
1
#018
94301-10120
PIN, DOWEL (10X12)
$2.94¢1 469
1
