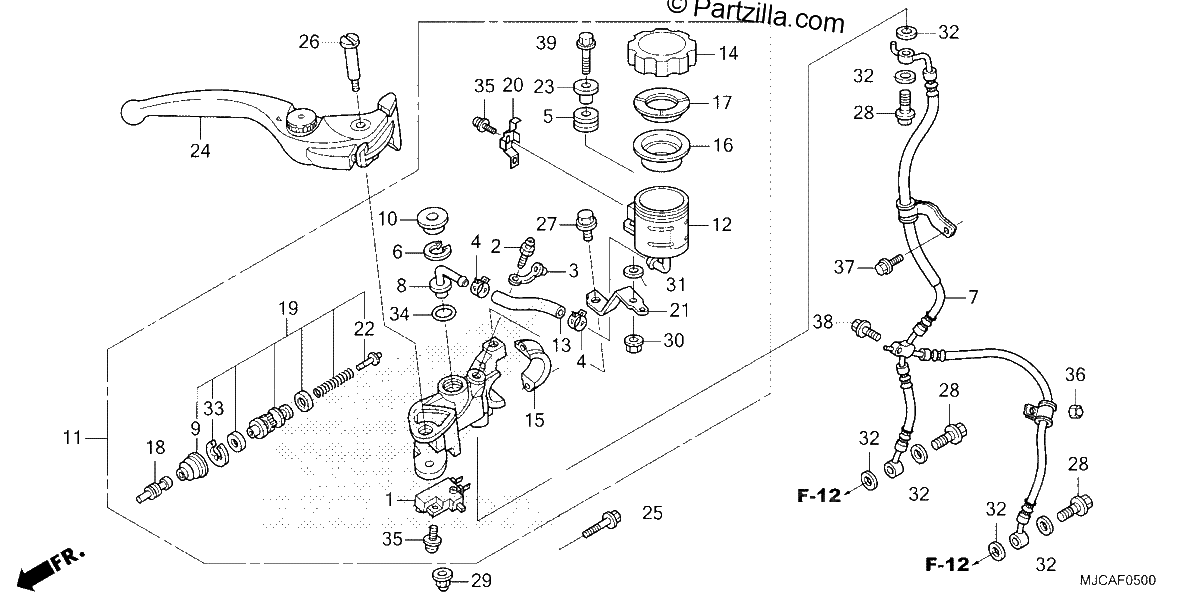

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#003
CAP, BLEEDER
$6.13¢3 063
#004
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#005
RUBBER, OIL CUP
$5.99¢2 994
#006
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#007
HOSE, FR. BRAKE
$183.94¢91 969
#008
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
#009
BOOT
$15.29¢7 644
#010
COVER, DUST
$5.04¢2 519
#011
MASTER CYLINDER SUB-Assembly., Front BRAKE
$410.42¢205 212
#012
CUP, OIL
$11.50¢5 750
#013
HOSE, MASTER CYLINDER OIL
$6.32¢3 162
#014
CAP, OIL CUP
$21.39¢10 694
#015
HOLDER, MASTER CYLINDER
$13.79¢6 894
#016
DIAPHRAGM
$10.59¢5 294
#017
PLATE, DIAPHRAGM
$4.91¢2 456
#018
ROD, PUSH
$17.05¢8 525
#019
MASTER CYLINDER SET
$56.04¢28 019
#020
PLATE, STOP
$6.61¢3 306
#021
STAY, FR. MASTER CYLINDER
$5.99¢2 994
#022
GUIDE, SPRING
$10.31¢5 156
#023
COLLAR (6.3X13)
$5.88¢2 938
#024
LEVER Assembly., Right HANDLE
$61.01¢30 506
#025
BOLT, FLANGE (6X22)
$1.85¢925
#026
BOLT, HANDLE LEVER
$7.05¢3 525
#027
BOLT, FLANGE (6X12)
$3.84¢1 919
#028
BOLT, OIL (10X22)
$8.89¢4 444
#029
NUT, CAP (6MM)
$2.76¢1 381
#030
NUT, U (6MM)
$8.39¢4 194
#031
WASHER (6X16)
$1.70¢850
#032
WASHER, OIL BOLT
$4.85¢2 425
#033
CIRCLIP
$2.91¢1 456
#034
O-RING (14.8X2.4)
$3.30¢1 650
#035
SCREW-WASHER (4X12)
$1.72¢862
#035
SCREW-WASHER (4X12)
$1.72¢862
#036
NUT, CAP (6MM)
$1.99¢994
#037
BOLT, FLANGE (6X12)
$2.31¢1 156
#038
BOLT, FLANGE (6X18)
$1.63¢813
#039
BOLT, FLANGE (6X28)
$2.31¢1 156
