CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

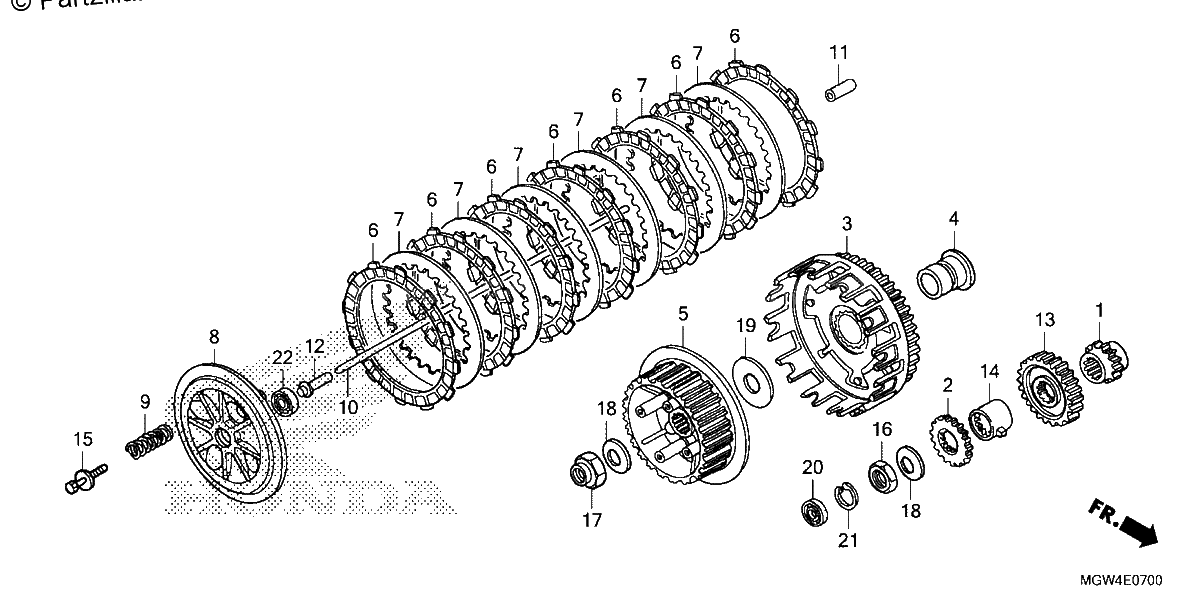

Diagrama de CLUTCH

Repuestos

#001
14312-MN1-670
SPROCKET, TIMING (19T)
$51.46¢25 731
1
#002
15130-MN1-670
GEAR, PUMP DRIVE (28T)
$60.35¢30 176
1
#003
22100-MN9-000
CLUTCH OUTER
$567.10¢283 550
1
#004
22116-MN1-670
GUIDE, CLUTCH (OUTER)
$27.09¢13 547
1
#005
22120-KN8-000
CENTER, CLUTCH (28T)
$161.30¢80 649
1
#006
22201-MY6-670
DISK, CLUTCH FRICTION
$22.78¢11 391
1
#007
22321-MG3-000
PLATE, CLUTCH
$20.73¢10 367
1
#008
22350-MG3-000
PLATE, CLUTCH PRESSURE
$112.55¢56 275
1
#009
22401-MK2-003
SPRING, CLUTCH
$4.25¢2 128
1
#010
22850-MG3-000
ROD, CLUTCH LIFTER
$47.51¢23 753
1
#011
22852-MK5-000
PIECE, CLUTCH LIFTER ROD
$8.27¢4 134
1
#012
22853-KN8-000
LIFTER, CLUTCH
$19.94¢9 971
1
#013
23121-MN9-000
GEAR, PRIMARY DRIVE (34T)
$144.81¢72 404
1
#014
30220-MK5-000
BOSS, PULSER
$35.73¢17 865
1
#015
90022-MM5-000
BOLT-WASHER (6X25)
$3.36¢1 679
1
#016
90235-MN1-670
NUT (18MM)
$10.26¢5 129
1
#017
90236-HA0-000
NUT, LOCK (18MM)
$11.24¢5 618
1
#018
90432-428-000
WASHER, LOCK
$8.45¢4 226
1
#019
90452-471-000
WASHER, THRUST (22MM)
$5.32¢2 662
1
#020
91201-HM3-A61
OIL SEAL (14X22X5) (ARAI)
$3.36¢1 679
1
#021
94520-24000
CIRCLIP (INNER) (24MM)
$1.44¢719
1
#022
96100-60010-00
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
