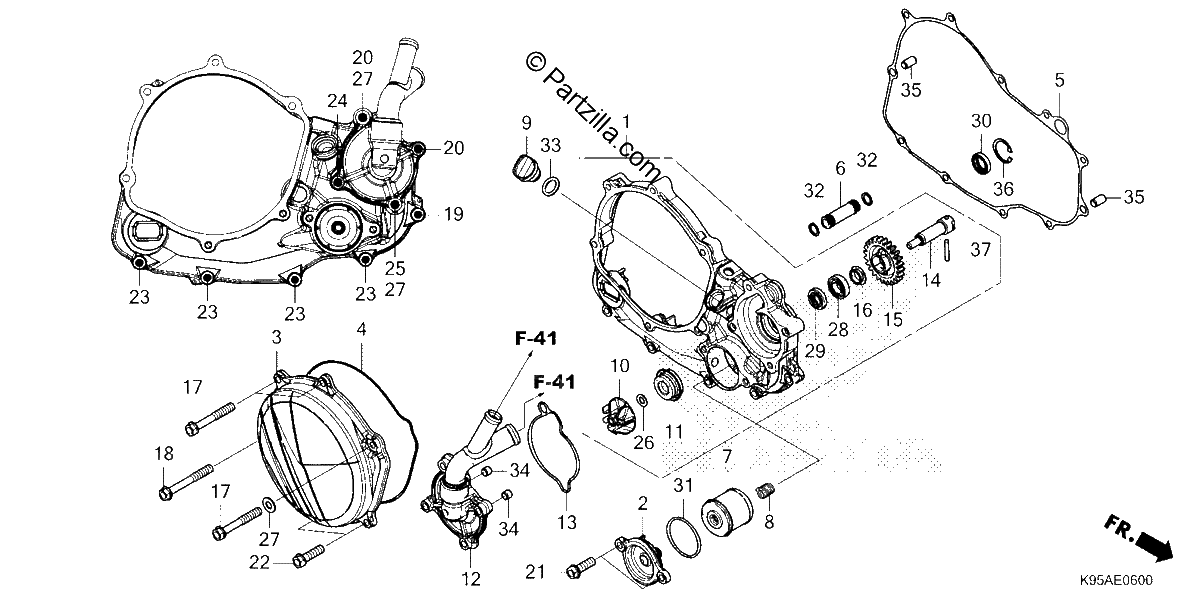

RIGHT CRANKCASE COVER WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER Assembly., Right CRANKCASE
$421.81¢210 904
#002
COVER, OIL FILTER
$44.41¢22 207
#003
COVER, CLUTCH
$159.77¢79 885
#004
GASKET, CLUTCH COVER
$13.02¢6 509
#005
GASKET, R. COVER
$30.30¢15 151
#006
PIPE, OIL PASSAGE
$16.95¢8 476
#007
FILTER, ENGINE OIL
$8.38¢4 192
#008
SPRING, OIL FILTER
$3.10¢1 553
#009
CAP, OIL FILLER
$19.26¢9 631
#010
IMPELLER, WATER PUMP
$54.34¢27 169
#011
SEAL, MECHANICAL
$49.55¢24 777
#012
COVER, WATER PUMP
$98.90¢49 450
#013
GASKET, WATER PUMP
$5.55¢2 777
#014
SHAFT, WATER PUMP
$74.46¢37 231
#015
GEAR, WATER PUMP DRIVEN (24T)
$23.51¢11 753
#016
COLLAR
$3.09¢1 547
#017
BOLT, FLANGE (6X50)
$3.36¢1 679
#018
BOLT, FLANGE (6X55)
$3.53¢1 765
#019
BOLT, FLANGE (6X35)
$2.94¢1 472
#020
BOLT, FLANGE (6X45)
$3.21¢1 604
#021
BOLT, FLANGE (6X20)
$2.75¢1 374
#022
BOLT, FLANGE (6X20)
$2.75¢1 374
#023
BOLT, FLANGE (6X28)
$2.75¢1 374
#024
BOLT, FLANGE (6X30)
$2.81¢1 403
#025
BOLT, FLANGE (6X25)
$2.68¢1 340
#026
WASHER, SEALING (7MM)
$3.15¢1 576
#027
WASHER, SEALING (6.5MM)
$3.36¢1 679
#028
BEARING, BALL (12X24X6)
$9.50¢4 749
#029
OIL SEAL (12X22X5) (ARAI)
$4.52¢2 260
#029
OIL SEAL (12X22X5)
$4.52¢2 260
#030
OIL SEAL (14X22X5) (ARAI)
$3.36¢1 679
#031
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
#032
O-RING (9.6X1.9) (ARAI)
$2.22¢1 110
#033
D-RING (14X3)
$3.36¢1 679
#034
PIN, DOWEL (8X7)
$2.64¢1 322
#035
PIN, DOWEL (8X14)
$2.66¢1 328
#036
CIRCLIP (INNER) (24MM)
$1.44¢719
#037
ROLLER (4X23.8)
$0.92¢460
