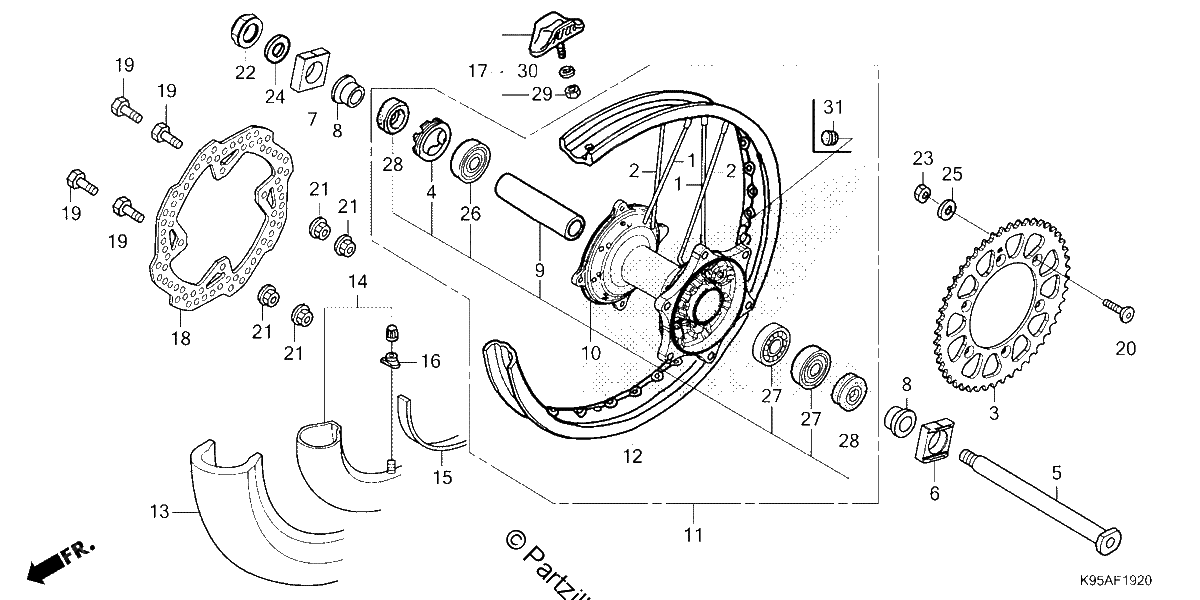

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPOKE SET, RR.
$5.43¢2 714
#002
SPOKE SET, RR.
$5.43¢2 714
#003
SPROCKET, FINAL DRIVEN (49T)
$161.98¢80 989
#003
SPROCKET, FINAL DRIVEN (50T)
$161.62¢80 810
#003
SPROCKET, FINAL DRIVEN (51T)
$169.91¢84 956
#004
RETAINER, RR. WHEEL BEARING
$20.58¢10 292
#005
AXLE, RR. WHEEL
$50.59¢25 294
#006
COLLAR, L Rear AXLE
$22.83¢11 414
#007
COLLAR, R. RR. AXLE
$20.58¢10 292
#008
COLLAR, RR. WHEEL SIDE
$29.19¢14 593
#009
COLLAR, RR. WHEEL DISTANCE
$29.14¢14 571
#010
HUB SUB-ASSY., RR.
$505.79¢252 896
#011
WHEEL SUB-ASSY., RR.
$962.04¢481 022
#012
RIM, RR. WHEEL (18X2.15)
$323.68¢161 840
#013
TIRE, RR. (110/100-18) (64M) (DUNLOP)
$209.94¢104 972
#014
TUBE, TIRE (120/80-18) (IRC)
No Disponible
#014
TUBE, TIRE (4.60-18) (YOKOHAMA)
$39.28¢19 642
#014
TUBE, TIRE (120/90-18) (DUNLOP)
$39.28¢19 642
#014
TUBE, TIRE (4.10-18) (BS)
$39.28¢19 642
#015
FLAP, TIRE (1.85/2.15-18) (DUNLOP)
$6.84¢3 421
#016
CAP, VALVE
$11.18¢5 589
#017
STOPPER, BEAD (2.15)
$40.46¢20 228
#018
DISK, RR. BRAKE
$283.70¢141 853
#019
BOLT, DISK (6X19)
$5.57¢2 783
#020
SCREW, FLAT SOCKET
$4.58¢2 289
#021
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#022
NUT, U (22MM)
$9.64¢4 819
#023
NUT, U (8MM)
$3.36¢1 679
#024
WASHER (22X35X2)
$3.36¢1 679
#025
WASHER (8MM)
$2.98¢1 489
#026
BEARING, RADIAL BALL (69052RS)
$19.68¢9 838
#027
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
#028
DUST SEAL (32X43X7)
$5.51¢2 754
#029
NUT, HEX. (8MM)
$1.54¢771
#030
WASHER, SPRING (8MM)
$1.12¢558
#031
CAP, RIM HOLE
$4.68¢2 340
