TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

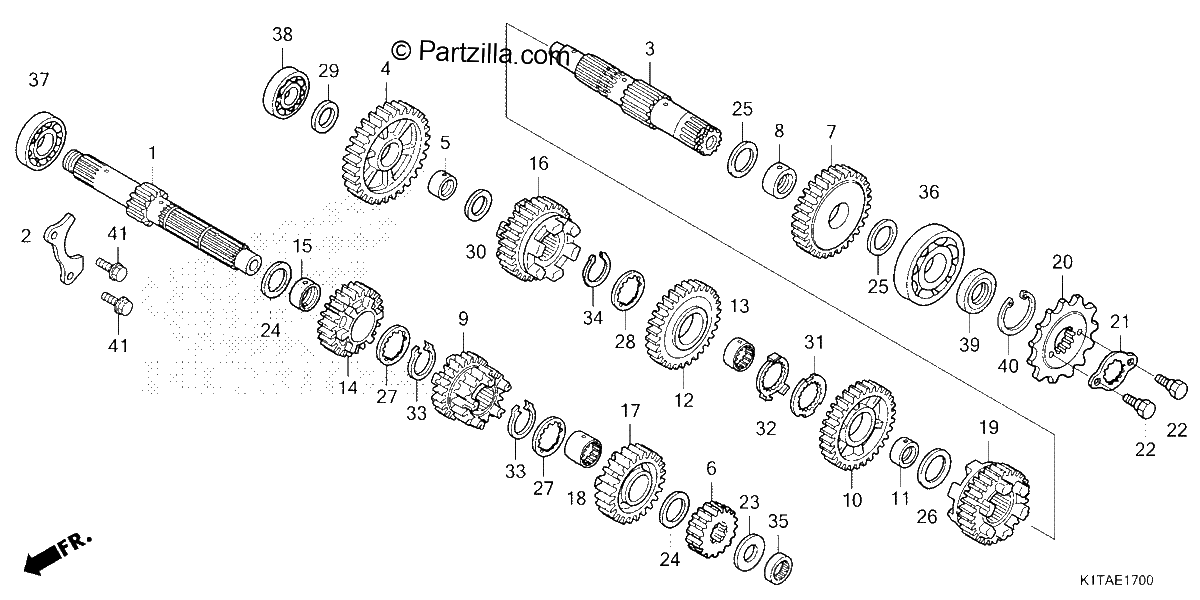

Diagrama de TRANSMISSION

Repuestos

#001
23211-K1T-EB0
MAINSHAFT (13T) (A)(GREEN)
$34.21¢17 106
1
#001
23212-K1T-EB0
MAINSHAFT (13T) (B)(YELLOW)
$34.21¢17 106
1
#002
23213-K0A-DB0
PLATE, BEARING SETTING
$2.62¢1 311
1
#003
23221-K0A-DB0
COUNTERSHAFT
$20.93¢10 465
1
#004
23411-K1T-EB0
GEAR, COUNTERSHAFT FIRST (46T)
$20.32¢10 160
1
#005
23412-KYJ-900
COLLAR (20X23X10.5)
$15.59¢7 797
1
#006
23421-K0A-DB0
GEAR, MAINSHAFT SECOND (16T)
$9.41¢4 703
1
#007
23431-K0A-DB0
GEAR, COUNTERSHAFT SECOND (36T)
$17.59¢8 798
1
#008
23432-KYJ-900
COLLAR (22X25X11)
$11.79¢5 894
1
#009
23441-K1T-EB0
GEAR, MAINSHAFT THIRD & FOURTH(20T/26T)
$31.49¢15 743
1
#010
23451-K1T-EB0
GEAR, COUNTERSHAFT THIRD (33T)
$20.17¢10 085
1
#011
23452-KYJ-900
COLLAR (25X28X10)
$12.52¢6 262
1
#012
23471-K1T-EB0
GEAR, COUNTERSHAFT FOURTH (35T)
$17.43¢8 717
1
#013
23472-K0A-DB0
COLLAR, SPLINE (25X10)
$1.26¢633
1
#014
23481-K1T-EB0
GEAR, MAINSHAFT FIFTH (26T)
$15.84¢7 918
1
#015
23482-KYJ-900
BUSH (20X23X17.4)
$35.82¢17 911
1
#016
23491-K1T-EB0
GEAR, COUNTERSHAFT FIFTH (29T)
$19.25¢9 625
1
#017
23501-K1T-EB0
GEAR, MAINSHAFT SIXTH (27T)
$17.13¢8 567
1
#018
23502-KYJ-900
COLLAR, SPLINE (23MM)
$24.83¢12 414
1
#019
23511-K1T-EB0
GEAR, COUNTERSHAFT SIXTH (25T)
$21.67¢10 833
1
#020
23801-KYJ-901
SPROCKET, DRIVE (14T)
$13.28¢6 641
1
#021
23802-KYJ-900
PLATE, FIXING
$3.04¢1 518
1
#022
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.14¢2 570
1
#023
90405-KYJ-900
WASHER (17X26X1.0)
$1.47¢736
1
#024
90406-KYJ-900
WASHER (20X27X1.0)
$1.51¢753
1
#025
90407-KYJ-900
WASHER (22X29X1.0)
$1.47¢736
1
#026
90408-KYJ-900
WASHER (25X32X1.0)
$1.51¢753
1
#027
90451-KYJ-900
WASHER, SPLINE (20X26X1.6)
$0.76¢380
1
#028
90452-KYJ-900
WASHER, SPLINE (25X31X1.0)
$1.26¢633
1
#029
90453-KYJ-900
WASHER (17X28X1.0)
$1.51¢753
1
#030
90454-KPS-900
WASHER B, THRUST (20MM)
$0.94¢471
1
#031
90454-KYJ-900
WASHER, SPLINE (25X42X1.6)
$1.75¢874
1
#032
90455-KYJ-900
WASHER, LOCK (25MM)
$37.14¢18 572
1
#033
90601-KYJ-900
CIRCLIP, OUTER (20MM)
$9.69¢4 847
1
#034
90602-KYJ-900
CIRCLIP (OUTER) (25MM)
$8.14¢4 071
1
#035
91003-KYJ-711
BEARING, NEEDLE (17X27X13) (NRB)
$5.31¢2 657
1
#035
91003-KYJ-901
BEARING, NEEDLE (17X27X13) (NTN)
$22.41¢11 207
1
#036
91005-KYJ-711
BEARING, RADIAL BALL (63/22)
$9.03¢4 514
1
#036
91005-KYJ-901
BEARING, RADIAL BALL (63/22)
$22.69¢11 345
1
#037
91013-KYJ-711
BEARING, RADIAL BALL (6304)
$6.52¢3 260
1
#037
96100-63040-00
BEARING, RADIAL BALL (6304)
$15.38¢7 688
1
#038
91014-KYJ-711
BEARING, RADIAL BALL (6203U)
$4.34¢2 168
1
#038
96140-62030-00
BEARING, RADIAL BALL (6203U)
$20.00¢9 999
1
#039
91207-KYJ-711
OIL SEAL (22X36X5)
$6.22¢3 111
1
#040
94520-37000
CIRCLIP, INNER (37MM)
$2.59¢1 294
1
#041
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
