MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

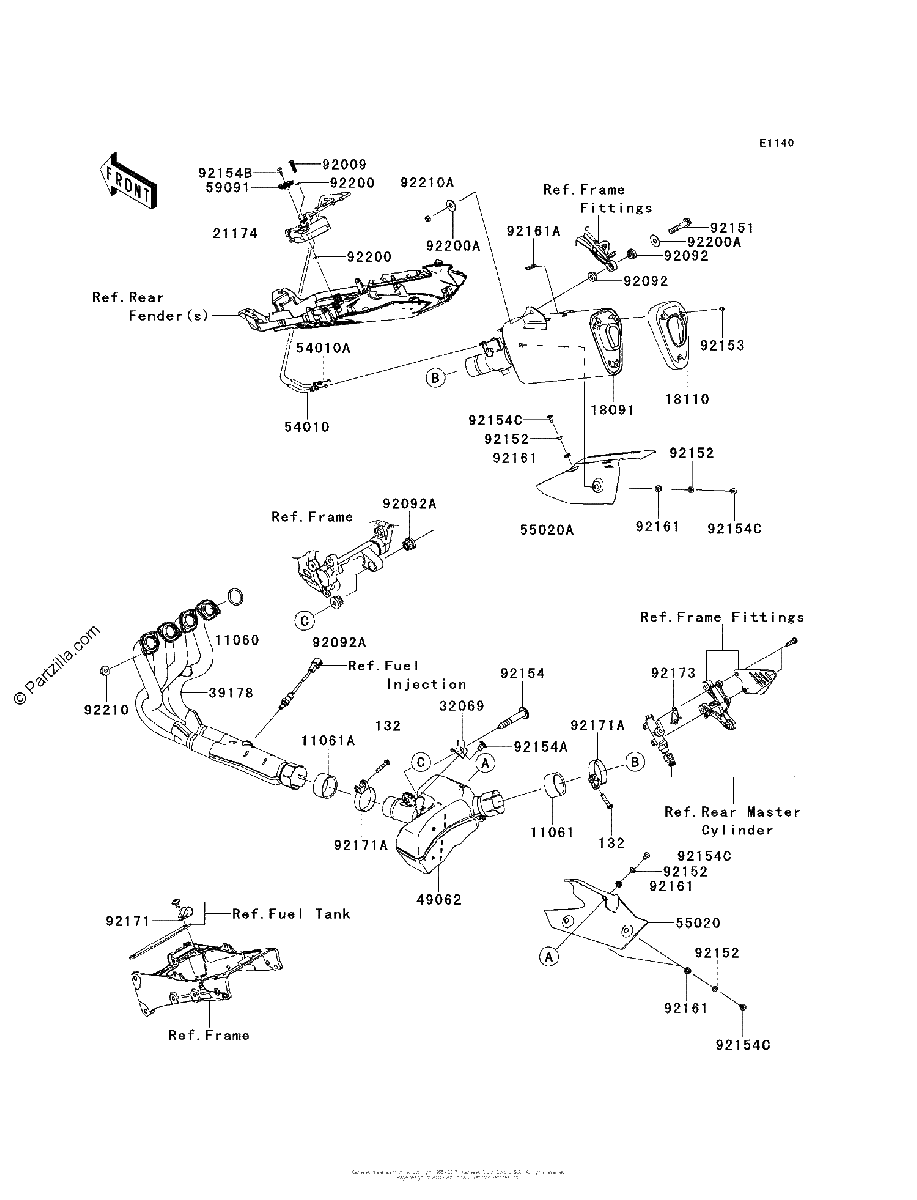

Diagrama de MUFFLER S

Repuestos

#132
132BC0840
BOLT FLANGED SMALL,8X40
$3.38¢1 691
1
#11060
11060-1203
GASKET,EXHAUST PIPE
$9.84¢4 922
1
#11061
11061-0447
GASKET,50.8X62X30
$24.76¢12 380
1
#11061A
11061-0448
GASKET,54X62X30
$21.19¢10 597
1
#18091
18091-0909
BODY-COMP-MUFFLER
$1195.57¢597 787
1
#18110
18110-0160
BODY END MUFFLER
$145.80¢72 899
1
#21174
21174-0005
MOTOR-ELECTRIC
$396.44¢198 220
1
#32069
32069-0340
BRACKET MUFFLER
$10.46¢5 232
1
#39178
39178-0184
MANIFOLD COMP EXHAUST
No Disponible
1
#49062
49062-0713
PIPE COMP EXHAUST
$1029.84¢514 918
1
#54010
54010-0592
CABLE,CLOSE
$92.53¢46 264
1
#54010A
54010-0595
CABLE,OPEN
No Disponible
1
#55020
55020-0864
GUARD,CHAMBER
$140.67¢70 334
1
#55020A
55020-0901
GUARD,FRONT COVER
$317.15¢158 573
1
#59091
59091-0007
PULLEY
$22.49¢11 247
1
#92009
92009-1481
SCREW,TAPPING,6X30
$4.28¢2 139
1
#92092A
92092-1087
BUSHING RUBBER,MUFFLER
$19.22¢9 608
1
#92092
92092-0018
BUSHING RUBBER
$10.52¢5 261
1
#92151
92151-1532
BOLT,FLANGED,8X40
$2.27¢1 133
1
#92152
92152-0286
COLLAR,6.3X8.3X16
$5.12¢2 559
1
#92153
92153-1758
BOLT,HEX HEAD,6X8
$1.95¢977
1
#92154C
92154-0907
BOLT,SOCKET,6X14
$1.72¢862
1
#92154B
92154-0217
BOLT,TORX,5X18
$3.52¢1 759
1
#92154A
92154-0126
BOLT,SOCKET,10X16
$8.05¢4 025
1
#92154
92154-0125
BOLT,SOCKET,10X61
$11.99¢5 997
1
#92161A
92161-1228
DAMPER
$8.08¢4 042
1
#92161
92161-0308
DAMPER
$3.78¢1 892
1
#92171A
92171-1668
CLAMP,64.5MM
$21.04¢10 522
1
#92171
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92173
92173-1053
CLAMP
$12.37¢6 187
1
#92200A
92200-0174
WASHER,8.0X22.0X1.5
$2.22¢1 110
1
#92200
92200-0078
WASHER
$1.84¢920
1
#92210
92210-0076
NUT,8MM
$4.98¢2 490
1
#92210A
92210-0173
NUT,8MM
$1.84¢920
1
