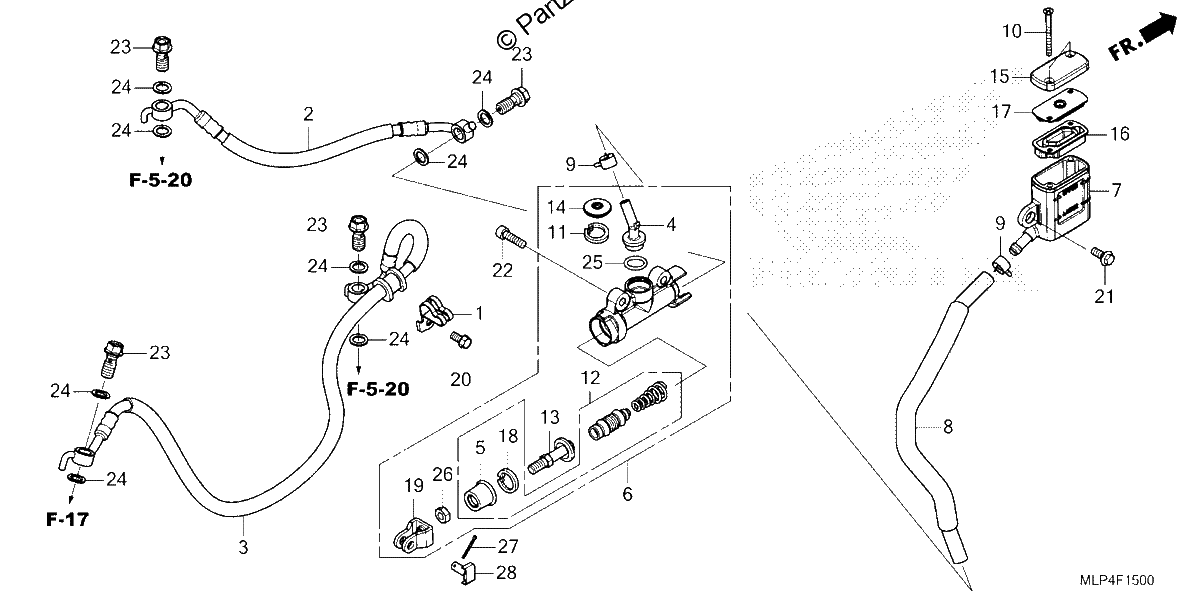

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, BRAKE HOSE
$5.16¢2 581
#002
HOSE A, RR. BRAKE
$18.88¢9 438
#003
HOSE B, Rear BRAKE
$33.85¢16 925
#004
CONNECTOR, MASTER CYLINDER
$5.39¢2 694
#005
BOOT
$11.74¢5 869
#006
MASTER CYLINDER SUB-ASSY., RR.
$118.81¢59 406
#007
CUP, OIL
$21.74¢10 869
#008
HOSE, RR. MASTER CYLINDER
$23.32¢11 663
#009
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#010
SCREW, FLAT (4X60)
$1.16¢581
#011
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#012
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#013
ROD, PUSH
$14.61¢7 306
#014
COVER, DUST
$5.04¢2 519
#015
CAP, MASTER CYLINDER
$21.21¢10 606
#016
DIAPHRAGM
$8.84¢4 419
#017
PLATE, DIAPHRAGM
$6.95¢3 475
#018
CIRCLIP
$2.50¢1 250
#019
JOINT, BRAKE ROD
$9.99¢4 994
#020
BOLT, FLANGE (6X12)
$2.99¢1 494
#021
BOLT, FLANGE (6X16) (S-NSHF)
$2.81¢1 406
#022
BOLT, SOCKET (6X22)
$1.27¢638
#023
BOLT, OIL (10X22)
$8.89¢4 444
#024
WASHER, OIL BOLT
$4.85¢2 425
#025
O-RING (14.8X2.4)
$3.30¢1 650
#026
NUT, HEX. (8MM)
$1.60¢800
#027
PIN, SPLIT (2.0X15)
$1.34¢669
#028
PIN D, JOINT
$5.15¢2 575
