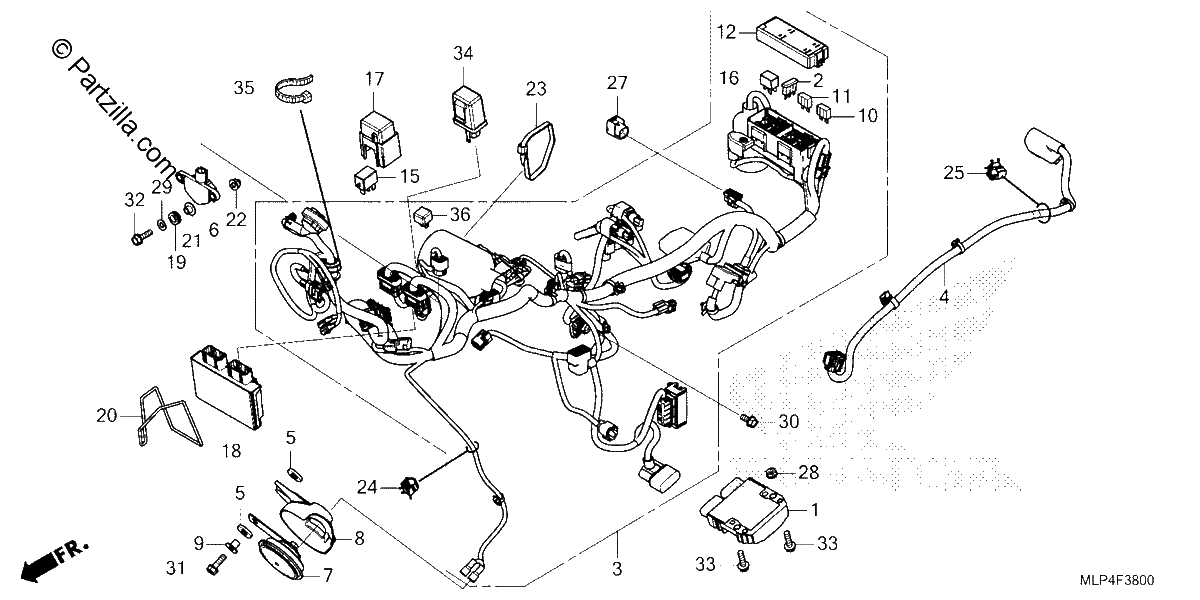

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$202.96¢101 482
#002
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#003
WIRE HARNESS
$1210.09¢605 044
#004
SUB-HARNESS, RR.
$26.35¢13 173
#005
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#006
SENSOR ASSY., BANK ANGLE (M6)
$128.48¢64 239
#007
HORN (HIGH)
$28.19¢14 093
#008
HEAT GUARD, HORN
$4.96¢2 478
#009
COLLAR, HORN SETTING
$2.06¢1 029
#010
FUSE, BLADE (10A)
$3.46¢1 731
#011
FUSE, BLADE (30A)
$2.86¢1 432
#012
COVER (UPPER)
$25.33¢12 667
#015
RELAY Assembly., POWER (MICRO ISO 4P) (MITSUBA)
$11.48¢5 739
#016
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
#017
COVER, RELAY (2P)
$4.28¢2 139
#018
PGM-FI UNIT
$478.22¢239 108
#019
RUBBER, SIDE COVER
$2.30¢1 150
#020
BAND, TOOL
$3.16¢1 581
#021
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#022
NUT, CAP (6MM)
$3.36¢1 679
#023
BAND, WIRE HARNESS
$29.19¢14 593
#024
CLIP, CABLE (8MM)
$2.59¢1 294
#025
CLIP, CABLE (10MM)
$2.59¢1 294
#027
CAP, DUMMY (6P) (RED)
$26.62¢13 311
#028
NUT, FLANGE (6MM)
$1.71¢857
#029
WASHER, PLAIN (6MM)
$0.77¢385
#030
BOLT, FLANGE (6X14)
$1.92¢960
#031
BOLT, FLANGE (6X20)
$1.92¢960
#032
BOLT, FLANGE (6X20)
$0.44¢218
#033
BOLT, FLANGE (6X22)
$1.12¢558
#034
RELAY, TURN SIGNAL (LED)
$67.38¢33 689
#035
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#036
RECTIFIER, SILICON
$28.21¢14 105
