TRANSMISSION 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

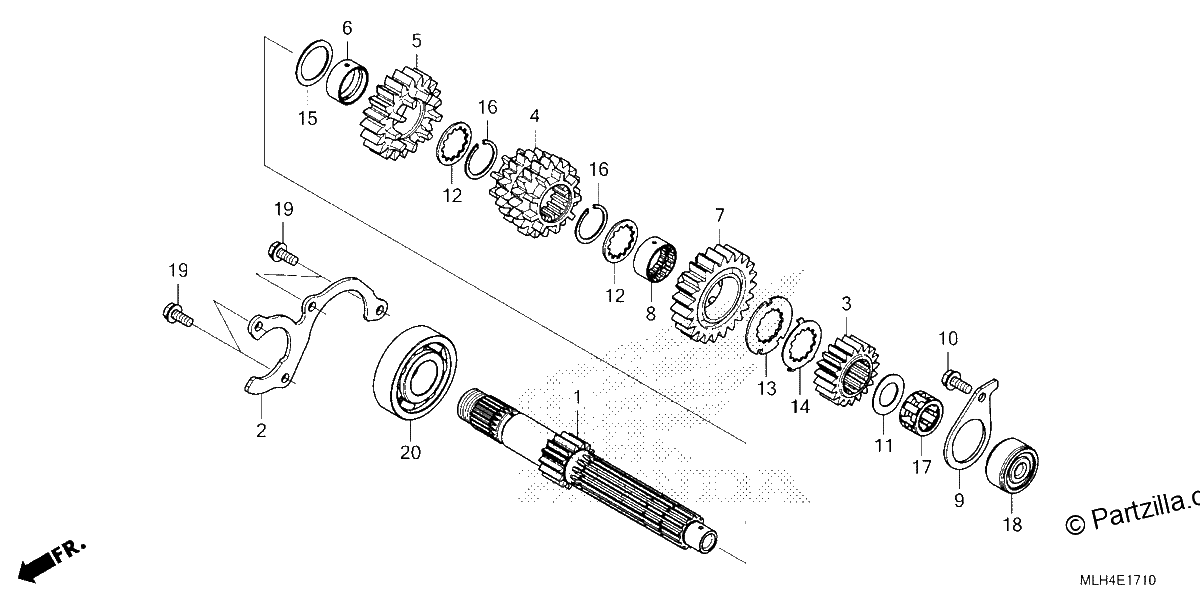

Diagrama de TRANSMISSION 1

Repuestos

#001
23211-MKP-D00
MAINSHAFT (14T)
$84.48¢42 239
1
#002
23212-MGZ-J00
PLATE, BEARING SETTING
$15.75¢7 877
1
#003
23431-MKP-D00
GEAR, MAINSHAFT SECOND (19T)
$44.70¢22 350
1
#004
23451-MKP-D00
GEAR, MAINSHAFT THIRD & FOURTH(20T/20T)
$107.55¢53 774
1
#005
23491-MKP-D00
GEAR, MAINSHAFT FIFTH (20T)
$49.04¢24 518
1
#006
23492-MGZ-J00
COLLAR (25X28X12)
$15.86¢7 929
1
#007
23511-MKP-D00
GEAR, MAINSHAFT SIXTH (23T)
$62.46¢31 228
1
#008
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$32.12¢16 060
1
#009
23531-MGZ-J00
PLATE, BEARING SETTING
$5.78¢2 892
1
#010
90005-MGZ-J00
BOLT, FLANGE (6X14)
$1.17¢586
1
#011
90403-KE7-000
WASHER, THRUST (17.2MM)
$4.75¢2 375
1
#012
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.25¢2 128
1
#013
90454-KYJ-900
WASHER, SPLINE (25X42X1.6)
$1.75¢874
1
#014
90455-KYJ-900
WASHER, LOCK (25MM)
$37.14¢18 572
1
#015
90456-MA6-000
WASHER, THRUST (25MM)
$3.00¢1 501
1
#016
90601-107-000
CIRCLIP (25MM)
$4.17¢2 087
1
#017
91022-MN4-003
BEARING, NEEDLE (17X27X14.8) (TOYO)
$11.94¢5 969
1
#018
91023-MN4-003
OUTER, NEEDLE BEARING
$19.10¢9 551
1
#019
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#020
96100-63050-00
BEARING, RADIAL BALL (6305)
$16.32¢8 159
1
