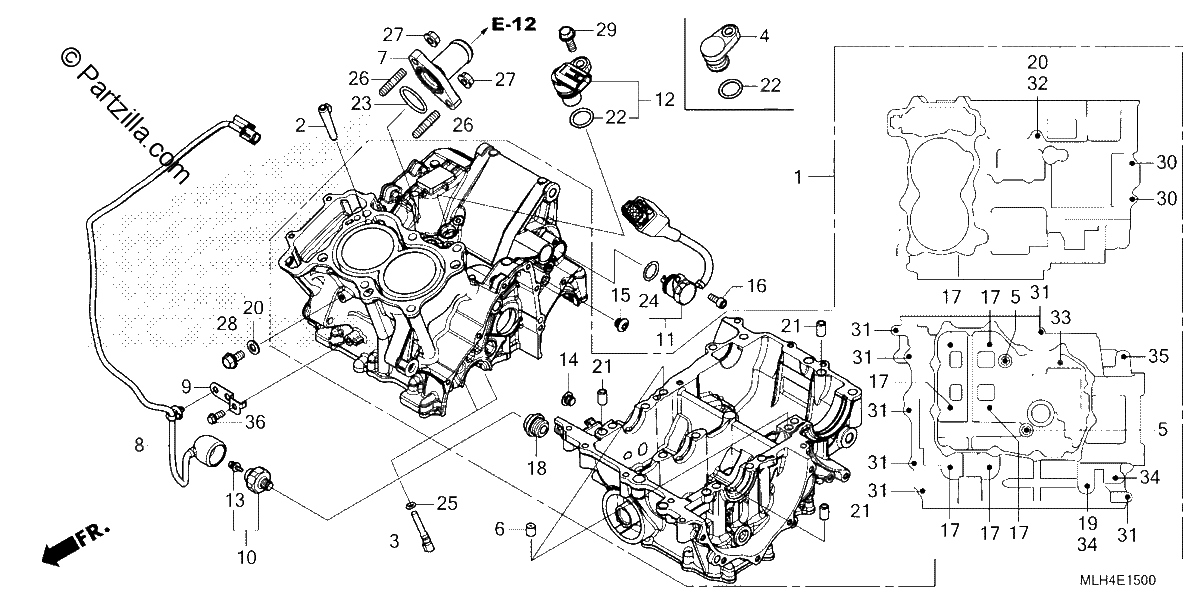

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$2206.67¢1 103 333
#002
PIN, PARTITION
$4.63¢2 317
#003
JET, OIL
$21.96¢10 983
#005
BOLT, SEALING (12MM)
$1.75¢874
#006
ORIFICE A (1.0MM)
$1.07¢535
#007
JOINT, WATER
$26.98¢13 490
#008
SUB-HARNESS, OIL PRESSURE
$7.08¢3 542
#009
STAY, HARNESS CLIP
$1.71¢857
#010
SWITCH ASSY., OIL PRESSURE (DENSO)
$57.89¢28 946
#011
SWITCH ASSY., CHANGE
$97.39¢48 697
#012
SENSOR Assembly., SPEED (TDK-EPC)
$30.41¢15 203
#013
BOLT-WASHER (4X8) (DENSO)
$6.93¢3 467
#014
BOLT, SOCKET (10MM)
$2.68¢1 340
#015
BOLT, SOCKET (10MM)
$4.66¢2 329
#016
BOLT, SOCKET KNOCK (6MM)
$8.41¢4 203
#017
BOLT, UBS (8X105)
$7.41¢3 703
#018
BOLT, SEALING (18MM)
$16.36¢8 182
#019
WASHER, SEALING (8MM)
$2.09¢1 047
#020
WASHER, SEALING (6.5MM)
$3.36¢1 679
#021
PIN, DOWEL (10X16)
$4.80¢2 398
#022
O-RING (14.8X2.4) (ARAI)
$2.09¢1 047
#023
O-RING (23X2.4)
$3.42¢1 708
#024
O-RING (16.5X2.5)
$2.32¢1 162
#025
O-RING (3.2X1.1)
$2.56¢1 282
#026
BOLT, STUD (6X16)
$2.22¢1 110
#027
NUT, FLANGE (6MM)
$0.74¢368
#028
BOLT, FLANGE (6X12)
$1.92¢960
#029
BOLT, FLANGE (6X18)
$1.92¢960
#030
BOLT, FLANGE (6X35)
$2.22¢1 110
#031
BOLT, FLANGE (6X40)
$2.17¢1 087
#032
BOLT, FLANGE (6X95)
$2.39¢1 196
#033
BOLT, FLANGE (8X55)
$2.69¢1 346
#034
BOLT, FLANGE (8X75)
$3.16¢1 581
#035
BOLT, FLANGE (10X75)
$2.89¢1 443
#036
BOLT, FLANGE (6X14)
$1.41¢707
