CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

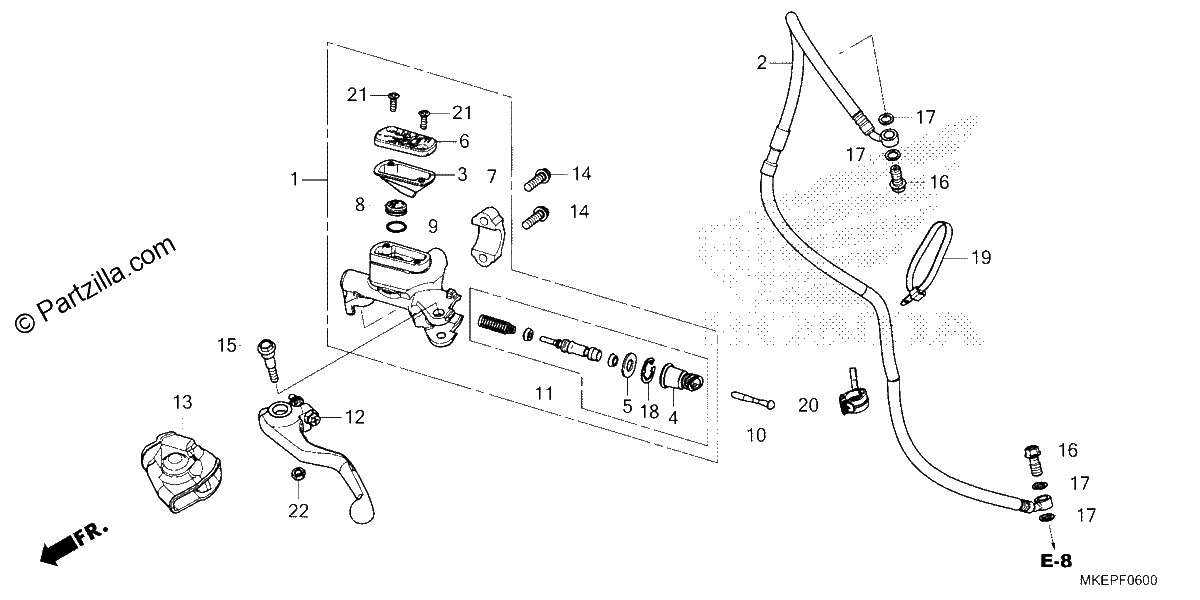

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#001
22890-MKE-AF1
MASTER CYLINDER SUB-ASSY., CLUTCH
$214.65¢107 324
1
#002
22900-MKE-AF1
HOSE, CLUTCH
$68.91¢34 454
1
#003
43521-MJT-E01
DIAPHRAGM
$5.84¢2 921
1
#004
45504-MEN-J01
BOOT
$10.90¢5 451
1
#005
45512-MKE-AF1
PLATE, STOPPER
$3.13¢1 564
1
#006
45513-MKE-AF1
CAP, MASTER CYLINDER
$21.88¢10 942
1
#007
45517-GW0-751
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#008
45518-MEN-J01
SEPARATOR
$8.50¢4 249
1
#009
45523-KA3-731
RING
$3.36¢1 679
1
#010
45525-MKE-AF1
PUSH ROD, CLUTCH MASTER CYLINDER
$9.64¢4 819
1
#011
45530-MKE-AF1
PISTON SET, MASTER CYLINDER
$65.04¢32 522
1
#012
53180-MKE-AF1
LEVER ASSY., L. HANDLE
$48.22¢24 110
1
#013
53186-MKE-AF0
COVER, L. HANDLE LEVER
$10.36¢5 181
1
#014
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#015
90114-MEN-J01
BOLT, HANDLE LEVER
$4.55¢2 277
1
#016
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#017
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#018
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#019
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.21¢2 105
1
#020
91559-S5A-003
HOLDER, HARNESS (BLACK)
$4.89¢2 444
1
#021
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#021
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
