FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

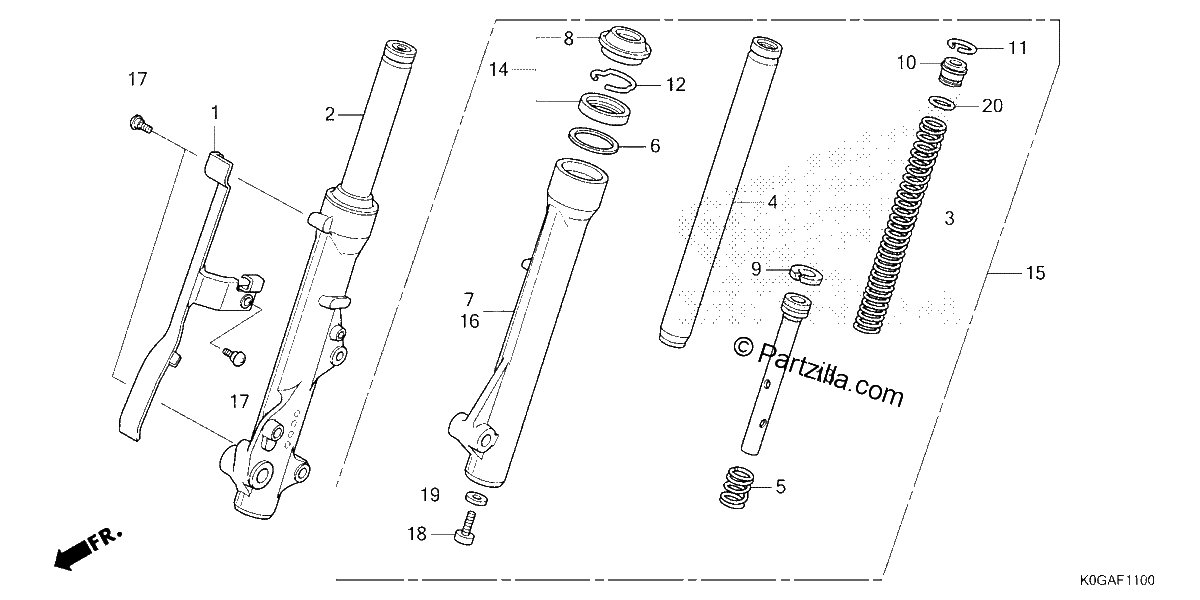

Diagrama de FRONT FORK

Repuestos

#001
38521-K0G-950
GUARD, ABS SENSOR
$76.15¢38 075
1
#002
51400-K0G-D21
FORK Assembly., Right Front.
$151.05¢75 525
1
#003
51401-K0G-T21
SPRING, Front FORK
$10.65¢5 325
1
#004
51410-K0G-T21
PIPE, Front FORK
$46.44¢23 219
1
#005
51412-GN5-901
SPRING, REBOUND (SHOWA)
$6.15¢3 075
1
#006
51412-KWB-601
RING, BACK-UP
$0.68¢338
1
#007
51420-K0G-951
CASE, R. FR. (LOWER) (SHOWA)
$70.33¢35 163
1
#008
51425-GN5-901
DUST SEAL (SHOWA)
$20.38¢10 188
1
#009
51437-KWB-601
RING, PISTON (SHOWA)
$1.64¢819
1
#010
51454-K58-TC1
SEAT B, SPRING
$4.91¢2 456
1
#011
51456-KPH-901
RING, STOPPER (SHOWA)
$0.58¢288
1
#012
51466-065-901
RING, OIL SEAL STOPPER (SHOWA)
$5.70¢2 850
1
#013
51470-K0G-T21
PIPE, SEAT
$4.84¢2 419
1
#014
51490-KGH-901
SEAL SET, Front FORK (SHOWA)
$7.48¢3 738
1
#015
51500-K0G-T21
FORK Assembly., L Front.
$132.17¢66 087
1
#016
51520-K0G-901
CASE, L. FR. (LOWER) (SHOWA)
$29.94¢14 969
1
#017
90102-MEJ-J00
SCREW, SPECIAL (5MM)
$1.82¢913
1
#018
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#019
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#020
91256-166-003
O-RING (16.8X2.4)
$3.08¢1 538
1
