FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

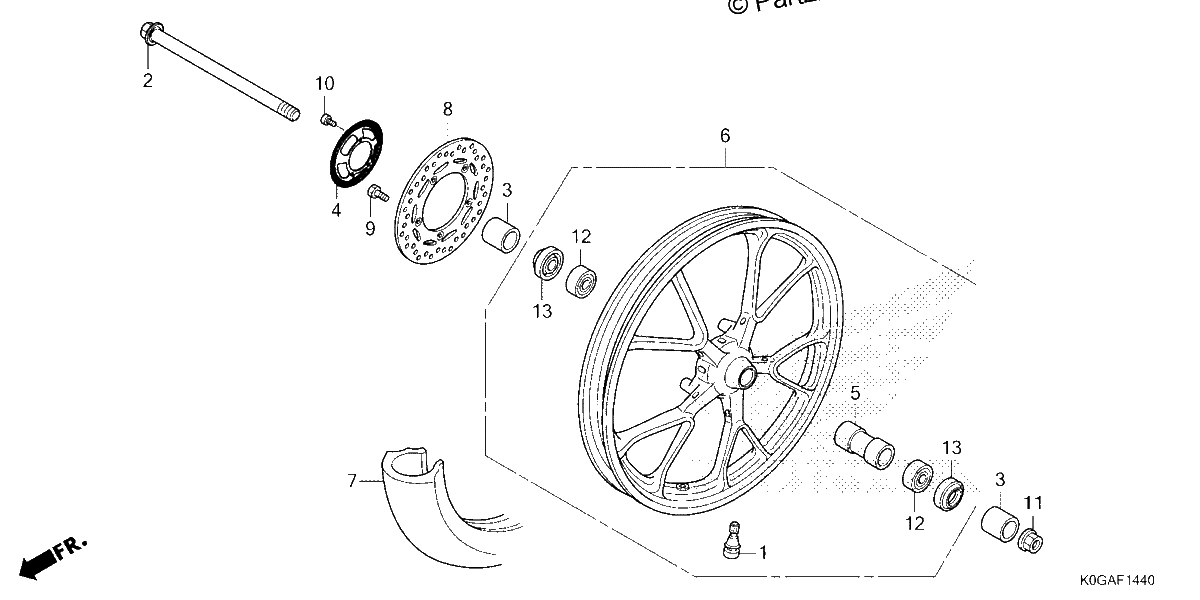

Diagrama de FRONT WHEEL

Repuestos

#001
42753-GM9-743
VALVE, RIM (IRC)
$9.34¢4 669
1
#002
44301-KZV-L00
AXLE, Front WHEEL
$8.50¢4 249
1
#003
44311-K0G-900
COLLAR, FR. WHEEL SIDE
$10.52¢5 261
1
#004
44515-K26-C10
RING, FR. PULSER
$28.81¢14 404
1
#005
44620-K0G-900
COLLAR, Front AXLE DISTANCE
$8.46¢4 232
1
#006
44650-K0G-D30ZA
WHEEL SUB-Assembly., Front. NH303M (MAT AXIS GRAY METALLIC)
$333.35¢166 675
1
#007
44711-K0G-903
TIRE, Front. (70/90-17M/C 38P) (IRC)
$51.05¢25 524
1
#008
45251-K0G-901
DISK, Front BRAKE
$78.65¢39 324
1
#009
90105-KZZ-900
BOLT, DISK (6X17)
$0.77¢385
1
#010
90131-K0G-D20
BOLT, TORX (5X10)
$1.15¢575
1
#011
90306-KWN-701
NUT, U (12MM)
$4.52¢2 260
1
#012
91052-K24-901
BEARING, RADIAL BALL (6201U L)(NSK)
$4.81¢2 403
1
#012
91052-K24-904
BEARING, RADIAL BALL (6201U L)(FAG)
$4.32¢2 162
1
#013
91251-KZR-601
DUST SEAL (21X32X5) (ARAI)
$1.62¢811
1
