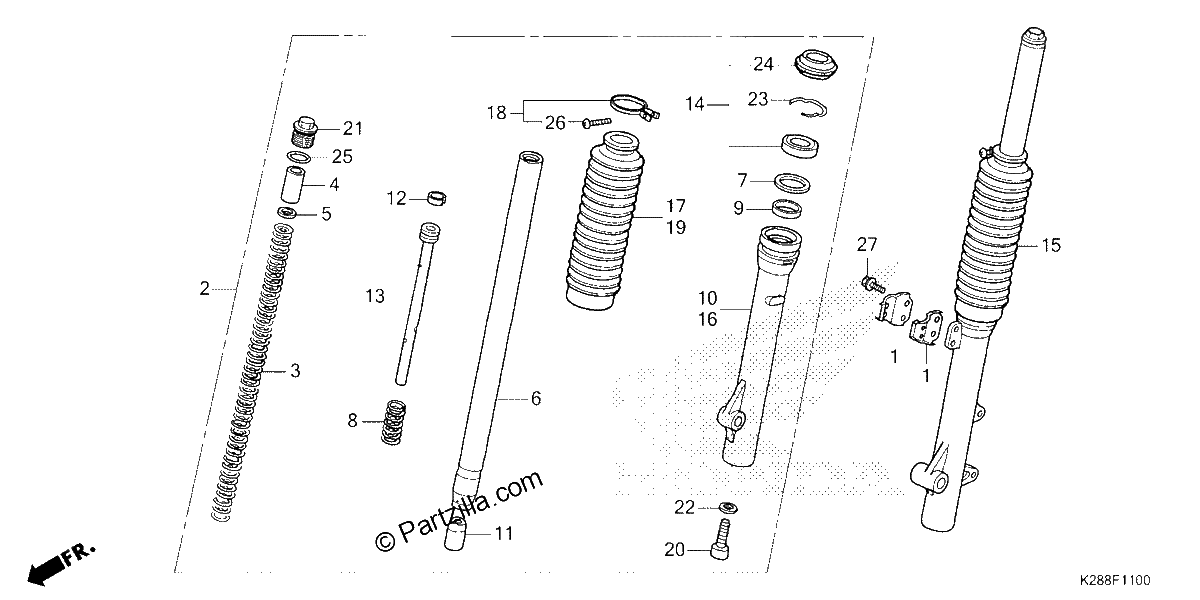

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$7.60¢3 801
#002
FORK ASSY., R. FR.
$654.79¢327 393
#003
SPRING, Front FORK
$56.82¢28 411
#004
COLLAR, SPRING
$12.18¢6 089
#005
PLATE, SPRING
$4.37¢2 185
#006
PIPE, Front FORK
$312.72¢156 360
#007
WASHER, OIL SEAL (CHUANNAN ABSORBER)
$6.20¢3 099
#008
SPRING, REBOUND
$11.52¢5 761
#009
GUIDE, FR. FORK (CHUANNAN ABSORBER)
$10.26¢5 129
#010
CASE, R. (LOWER)
$282.13¢141 065
#011
PIECE, OIL LOCK
$12.57¢6 285
#012
RING, PISTON
$7.26¢3 628
#013
PIPE, SEAT
$40.66¢20 332
#014
SEAL SET, FR. FORK
$21.23¢10 615
#015
FORK ASSY., L. FR.
$654.79¢327 393
#016
CASE, Left (LOWER)
$305.72¢152 858
#017
BOOT, R. FR. FORK
$63.02¢31 510
#018
BAND, FR. FORK BOOT (CHUANNAN ABSORBER)
$12.62¢6 308
#019
BOOT, L. FR. FORK
$63.02¢31 510
#020
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
$4.09¢2 047
#021
BOLT, FR. FORK
$19.46¢9 729
#022
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
$2.32¢1 162
#023
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
$1.21¢604
#024
DUST SEAL
$10.82¢5 411
#025
O-RING (22X2.8) (CHUANNAN ABSORBER)
$3.36¢1 679
#026
SCREW, PAN (3X20)
$0.89¢443
#027
BOLT, FLANGE (6X16)
$1.24¢621
