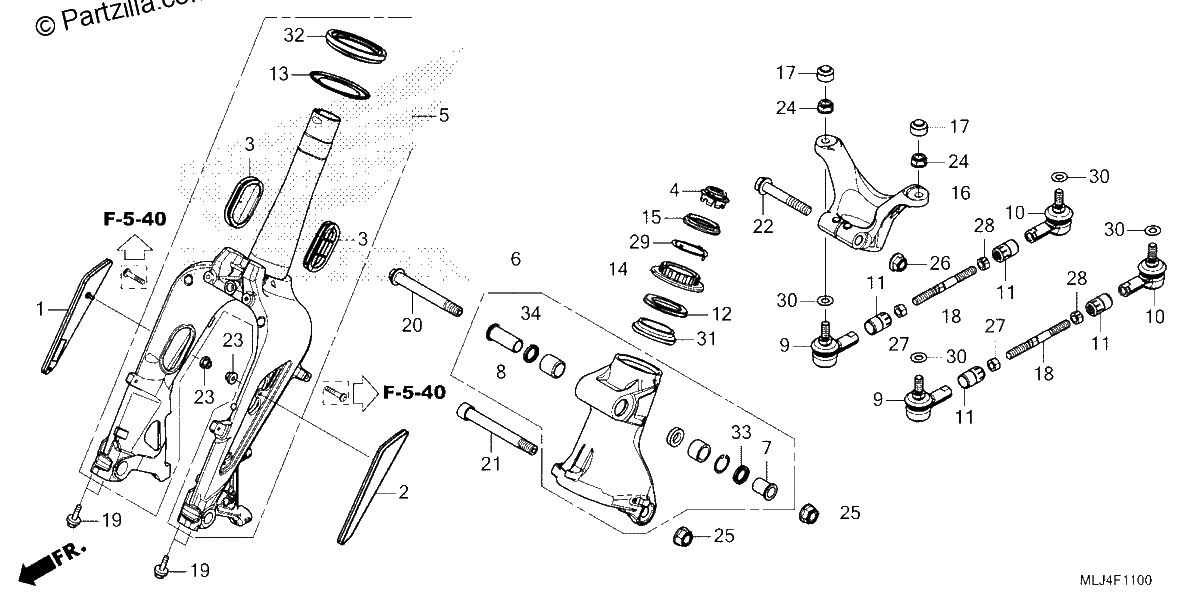

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
REFLECTOR, Right Front REFLEX
$64.22¢32 108
#002
REFLECTOR, L Front REFLEX
$64.22¢32 108
#003
GROMMET, FR. FORK
$8.50¢4 249
#004
CAP, STEM PIPE
$10.27¢5 135
#005
FORK SUB-ASSY., FR. (TYPE1)
$1478.96¢739 479
#006
HOLDER ASSY., FR. FORK (TYPE1)
$420.28¢210 139
#007
COLLAR, L. PIVOT DISTANCE
$16.21¢8 108
#008
COLLAR B, R. PIVOT DISTANCE
$22.34¢11 172
#009
END, R. TIE ROD (RIGHT HAND THREAD)
$50.92¢25 461
#010
END, L. TIE ROD (LEFT HAND THREAD)
$50.92¢25 461
#011
COVER, TIE ROD
$16.72¢8 360
#012
DUST SEAL (UPPER)
$16.96¢8 481
#013
DUST SEAL (LOWER)
$23.18¢11 592
#014
THREAD, STEERING HEAD TOP
$46.45¢23 224
#015
SEAL, FR. FORK
$10.90¢5 451
#016
ARM, STEERING
$164.83¢82 415
#017
CAP, NUT
$11.41¢5 704
#018
TIE ROD, STEERING
$13.09¢6 544
#019
BOLT (8X45)
$3.36¢1 679
#020
BOLT, HEAD PIPE PIVOT (UPPER)
$34.09¢17 043
#021
BOLT, HEAD PIPE PIVOT (LOWER)
$37.01¢18 504
#022
BOLT, FLANGE (12X78)
$9.67¢4 836
#023
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
#024
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
#025
NUT, U (16MM)
$9.97¢4 985
#026
NUT, U FLANGE (12MM)
$3.09¢1 547
#027
NUT A, HEX. (10MM)
$3.92¢1 961
#028
NUT B, HEX. (10MM) (LH)
$3.92¢1 961
#029
WASHER, LOCK
$8.69¢4 347
#030
WASHER (10X20X1.0)
$3.68¢1 840
#031
BEARING, HEAD PIPE (UPPER)
$46.26¢23 132
#032
BEARING, HEAD PIPE (LOWER)
$107.40¢53 699
#033
OIL SEAL (22X30X5)
$6.47¢3 237
#034
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
