CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

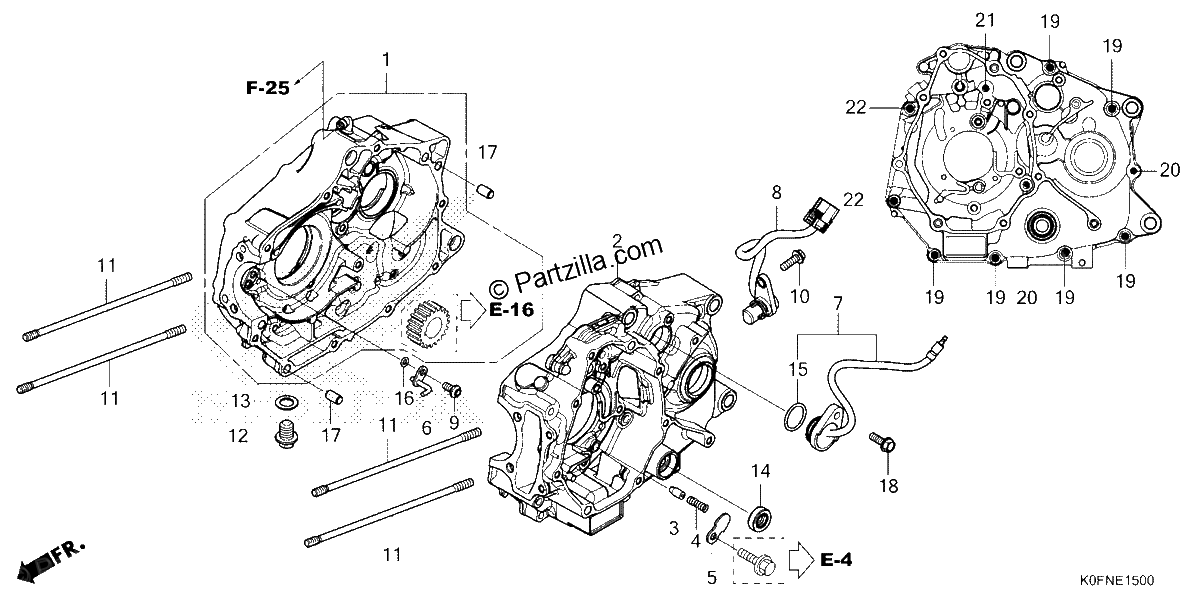

Diagrama de CRANKCASE

Repuestos

#001
11010-K0F-T60
CRANKCASE SET, R.
$318.24¢159 119
1
#002
11200-K0F-T60
CRANKCASE, L.
$151.74¢75 869
1
#003
11215-KYZ-900
PLUG, BEARING PUSH
$3.38¢1 688
1
#004
11216-KYZ-900
SPRING, BEARING PUSH
$0.58¢288
1
#005
11218-K26-G00
PLATE, PUSH PLUG
$1.47¢737
1
#006
15201-K1M-T02
JET, PISTON
$6.25¢3 125
1
#007
35759-K0F-T61
CONTACT ASSY., NEUTRAL SWITCH
$26.29¢13 144
1
#008
37700-KVS-F01
SENSOR Assembly., SPEED (NS)
$52.27¢26 138
1
#009
90003-K0J-N00
BOLT, SPECIAL (6X12)
$0.29¢144
1
#010
90004-GHB-640
BOLT, FLANGE (6X18) (NSHF)
$3.65¢1 825
1
#011
90031-KYY-900
BOLT, CYLINDER STUD
$5.56¢2 781
1
#012
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#012
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#013
90407-259-000
GASKET, DRAIN PETCOCK (12.5X20)
$3.65¢1 825
1
#014
91208-KWB-601
OIL SEAL (11.6X22X7)
$1.90¢950
1
#015
91301-HP2-671
O-RING (21X2.4)
$2.99¢1 494
1
#016
91305-K0J-N00
O-RING (3.8X1.4)
$0.29¢144
1
#017
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#018
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#019
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#020
96001-06050-00
BOLT, FLANGE (6X50)
$2.79¢1 394
1
#021
96001-06060-00
BOLT, FLANGE (6X60)
$2.79¢1 394
1
#022
96001-06070-00
BOLT, FLANGE (6X70)
$2.52¢1 263
1
