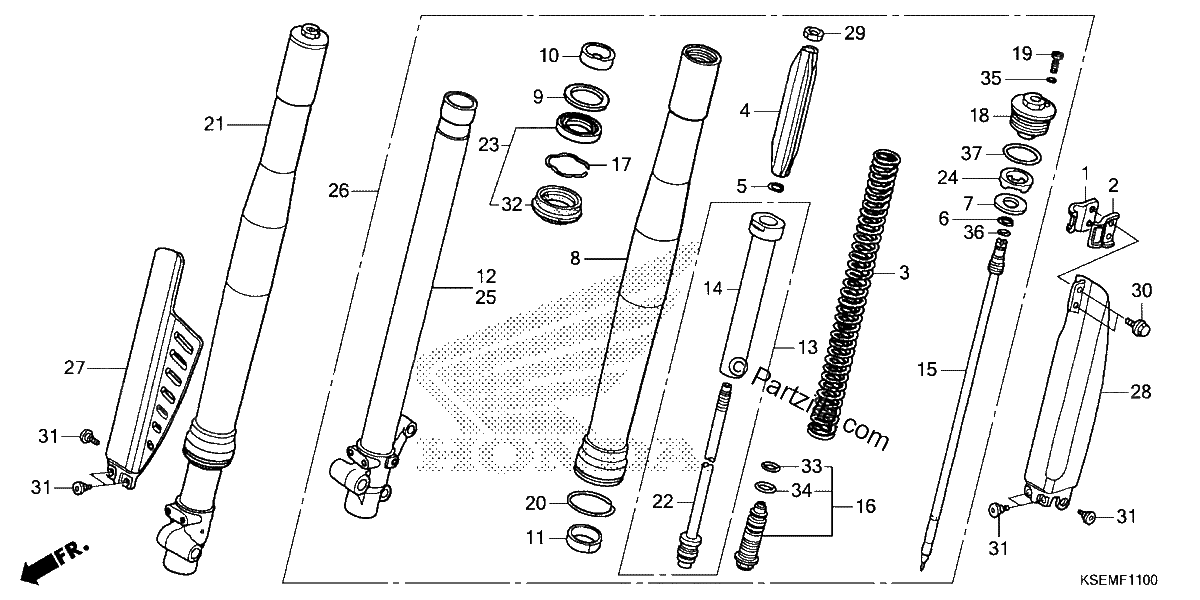

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, FR. BRAKE HOSE
$11.45¢5 727
#002
CLAMP B, FR. BRAKE HOSE
$10.07¢5 037
#003
SPRING, FR. FORK (3.33N/MM,0.34KGF/MM)
$78.90¢39 451
#003
SPRING, FR. FORK (3.53N/MM,0.36KGF/MM)
$82.45¢41 228
#003
SPRING, FR. FORK (3.14N/MM,0.32KGF/MM)
$68.29¢34 143
#004
GUIDE, SPRING
$30.38¢15 192
#005
RING, STOPPER
$4.99¢2 496
#006
RING, STOPPER
$2.83¢1 414
#007
SEAT, SPRING
$5.83¢2 915
#008
TUBE (OUTER)
$445.29¢222 646
#008
TUBE (OUTER) (COO)
$445.29¢222 646
#009
RING, BACK-UP
$7.85¢3 927
#010
BUSH, GUIDE
$11.05¢5 526
#011
BUSH, SLIDER
$9.58¢4 790
#012
PIPE, R. SLIDE
$337.46¢168 728
#013
DAMPER, FR.
$207.11¢103 557
#014
DAMPER SUB, FR.
$146.85¢73 428
#015
NEEDLE, REBOUND
$36.67¢18 337
#016
BOLT, CENTER (SHOWA)
$73.58¢36 788
#017
RING, OIL SEAL STOPPER
$4.21¢2 105
#018
BOLT, FR. FORK
$65.09¢32 545
#019
BOLT, PLUG
$10.30¢5 152
#020
RING, WEAR
$3.85¢1 926
#021
FORK SUB-ASSY., R. FR. (SHOWA)
$973.64¢486 818
#022
ROD, PISTON
$94.92¢47 461
#023
SEAL SET, FR. FORK
$26.16¢13 081
#024
RUBBER, STOPPER
$6.91¢3 456
#025
PIPE, L. SLIDE
$337.46¢168 728
#026
FORK SUB-ASSY., L. FR. (SHOWA)
$973.64¢486 818
#027
PROTECTOR, R. FR. FORK
$80.01¢40 003
#028
PROTECTOR, L. FR. FORK
$80.01¢40 003
#029
NUT, HEX. (10MM)
$2.94¢1 472
#030
BOLT, FLANGE (6MM)
$3.36¢1 679
#031
BOLT, PROTECTOR
$3.93¢1 967
#032
DUST SEAL
$14.27¢7 136
#033
O-RING (15.5X1.5)
$1.79¢897
#034
O-RING (18.8X1.9)
$3.22¢1 610
#035
O-RING (2.8X1.9)
$2.39¢1 196
#036
O-RING
$3.09¢1 547
#037
O-RING (37.2X2.4) (SHOWA)
$3.36¢1 679
