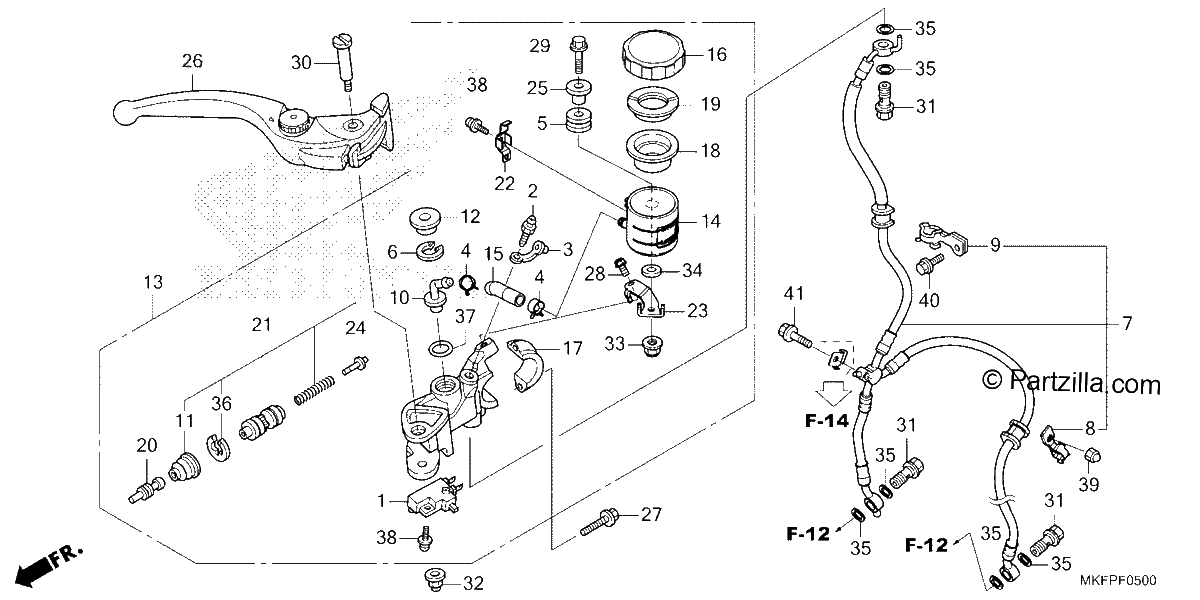

FRONT BRAKE MASTER CYLINDER CBR1000RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#003
CAP, BLEEDER
$6.13¢3 063
#004
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#005
RUBBER, OIL CUP
$5.99¢2 994
#006
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#007
HOSE, FR. BRAKE
$164.30¢82 150
#008
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#009
CLAMP B, FR. BRAKE HOSE
$4.80¢2 400
#010
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
#011
BOOT
$15.29¢7 644
#012
COVER, DUST
$5.04¢2 519
#013
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$360.88¢180 438
#014
CUP, OIL
$15.90¢7 950
#015
HOSE, MASTER CYLINDER OIL
$9.36¢4 681
#016
CAP, OIL CUP
$21.39¢10 694
#017
HOLDER, MASTER CYLINDER
$13.79¢6 894
#018
DIAPHRAGM
$10.59¢5 294
#019
PLATE, DIAPHRAGM
$4.91¢2 456
#020
ROD, PUSH
$17.05¢8 525
#021
MASTER CYLINDER SET
$62.41¢31 206
#022
PLATE, STOP
$6.61¢3 306
#023
STAY, FR. BRAKE MASTER CYLINDER
$12.36¢6 181
#024
GUIDE, SPRING
$5.71¢2 856
#025
COLLAR (6.3X13)
$5.88¢2 938
#026
LEVER Assembly., Right HANDLE
$61.01¢30 506
#027
BOLT, FLANGE (6X22)
$2.81¢1 406
#028
BOLT, FLANGE (6X12)
$2.99¢1 494
#029
BOLT, FLANGE (6X28)
$3.36¢1 681
#030
BOLT, HANDLE LEVER
$7.05¢3 525
#031
BOLT, OIL (10X22)
$8.89¢4 444
#032
NUT, CAP (6MM)
$2.76¢1 381
#033
NUT, U (6MM)
$8.39¢4 194
#034
WASHER (6X16)
$1.70¢850
#035
WASHER, OIL BOLT
$4.85¢2 425
#036
CIRCLIP
$2.91¢1 456
#037
O-RING (14.8X2.4)
$3.30¢1 650
#038
SCREW-WASHER (4X12)
$1.72¢862
#038
SCREW-WASHER (4X12)
$1.72¢862
#039
NUT, CAP (6MM)
$1.99¢994
#040
BOLT, FLANGE (6X12)
$2.88¢1 438
#041
BOLT, FLANGE (6X18)
$2.91¢1 456
