REAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

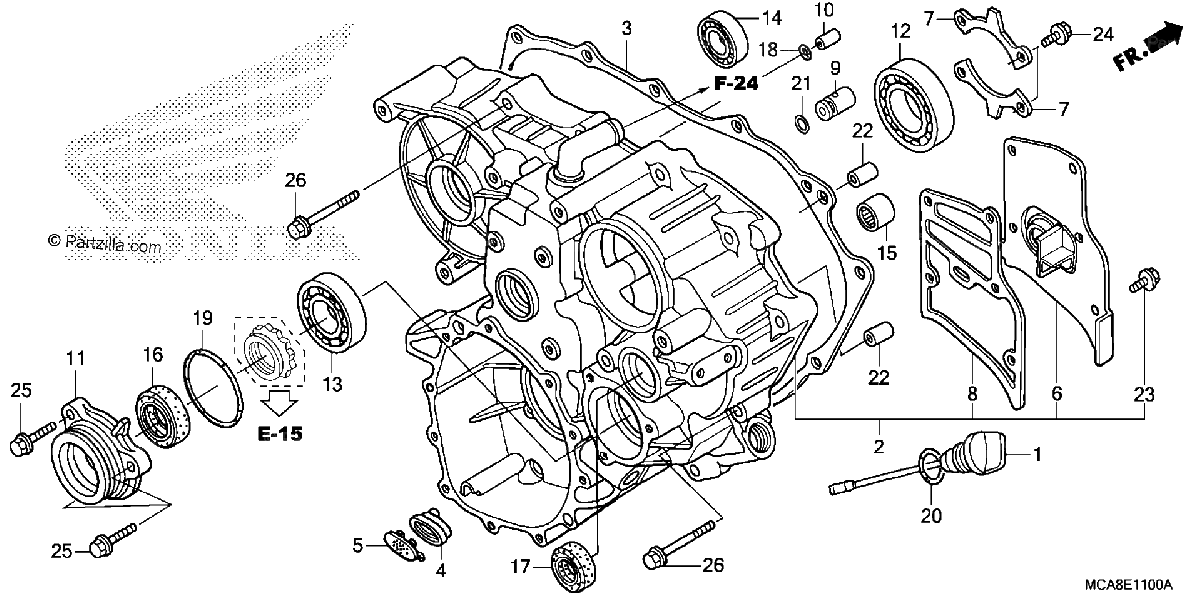

Diagrama de REAR CASE

Repuestos

#1
15650-MCA-010
DIPSTICK, OIL
$23.20¢11 600
1
#2
21100-MJK-A80
CASE ASSY., RR.
$1141.29¢570 644
1
#3
21112-MCA-010
GASKET, RR. CASE
$47.56¢23 781
1
#4
21116-MCA-780
BODY, SCAVENGE OIL PUMP STRAINER
$9.53¢4 763
1
#5
21117-MCA-780
CAP, SCAVENGE OIL PUMP STRAINER
$6.86¢3 431
1
#6
21120-MEC-000
PLATE, BREATHER
$20.96¢10 481
1
#7
21122-MN5-000
PLATE, PRIMARY BEARING SETTING
$12.56¢6 281
1
#8
21125-MEC-003
GASKET, BREATHER PLATE
$19.10¢9 550
1
#9
22360-MEC-000
VALVE ASSY., CLUTCH REGULATOR
$39.33¢19 663
1
#10
22465-MCA-000
ORIFICE, CLUTCH CONTROL
$5.29¢2 644
1
#11
23751-MN5-000
HOLDER, FINAL SHAFT BEARING
$144.39¢72 194
1
#12
91002-MN5-003
BEARING, RADIAL BALL (6010) (NTN)
$99.59¢49 794
1
#13
91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN)
$29.10¢14 550
1
#13
91011-MN5-003
BEARING, RADIAL BALL (6206) (TOYO)
$29.10¢14 550
1
#14
91015-MCA-003
BEARING, RADIAL BALL (6905)
$13.34¢6 669
1
#15
91024-GJ5-003
BEARING, NEEDLE (12X16X10)
$24.01¢12 006
1
#16
91204-MN5-005
OIL SEAL (28X48X9) (NOK)
$15.71¢7 856
1
#17
91208-MN5-003
OIL SEAL (27X34X5)
$4.91¢2 456
1
#18
91304-MC7-003
O-RING B (6.8X2.5) (ARAI)
$3.65¢1 825
1
#19
91304-MN5-003
O-RING (63X3) (ARAI)
$6.90¢3 450
1
#19
91316-PE7-730
O-RING (62.4X3.1)
$6.90¢3 450
1
#19
91316-PT6-003
O-RING (62.4X3.1)
$6.90¢3 450
1
#20
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#21
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.45¢2 225
1
#21
91313-MG7-004
O-RING (14.8X2.2)
$4.45¢2 225
1
#22
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#23
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#25
95701-08028-00
BOLT, FLANGE (8X28)
$1.79¢894
1
#26
95701-08045-00
BOLT, FLANGE (8X45)
$1.89¢944
1
