BATTERY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

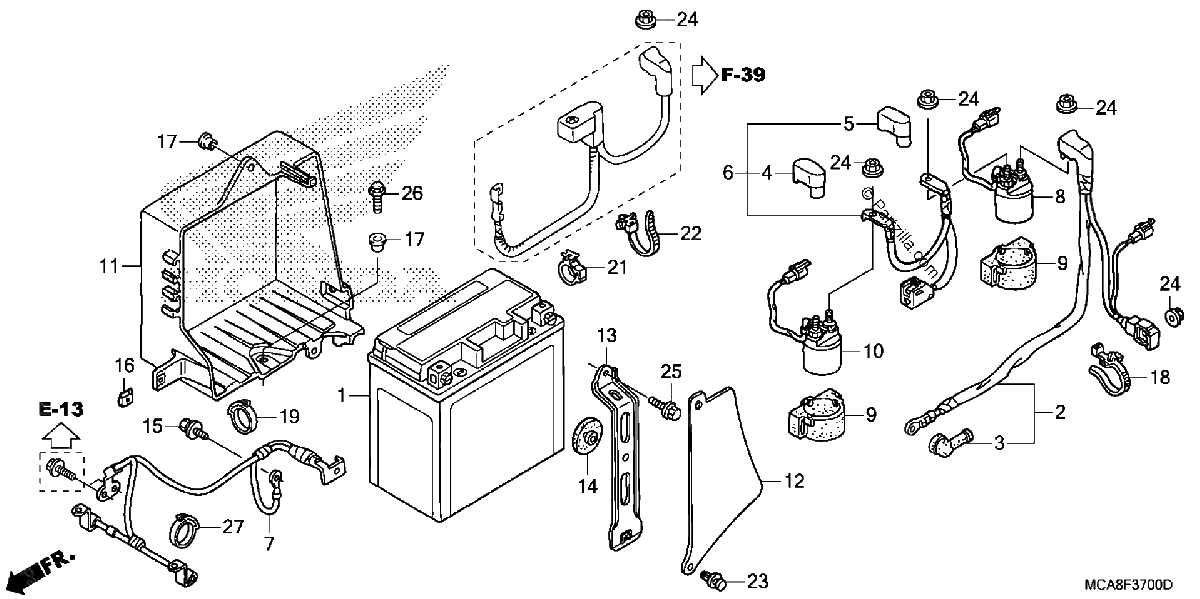

Diagrama de BATTERY

Repuestos

#1
31500-MCA-R31
BATTERY (GYZ20L) (YUASA) (MSDS)
No Disponible
1
#1
31500-MCA-R31AH
BATTERY (GYZ20L) (YUASA) (MSDS)
No Disponible
1
#2
32410-MCA-S40
CABLE, STARTER MOTOR
$59.93¢29 963
1
#3
32411-230-000
COVER, STARTER MOTOR TERMINAL
$7.14¢3 571
1
#3
32411-253-000
COVER, STARTER MOTOR TERMINAL
$7.14¢3 571
1
#4
32416-MCA-000
COVER A, MAGNETIC SWITCH (BLACK)
$5.46¢2 731
1
#5
32419-MCA-000
COVER D, MAGNETIC SWITCH (BLUE)
$4.73¢2 363
1
#6
32425-MCA-S40
CABLE, STARTER MAGNETIC SWITCH
$38.19¢19 096
1
#7
32601-MCA-S40
CABLE, BATTERY GROUND
$71.32¢35 662
1
#8
35850-MCA-A61
SWITCH ASSY., STARTER MAGNETIC (B)
$58.22¢29 112
1
#9
35856-425-000
RUBBER, MAGNETIC SHOCK
$11.73¢5 865
1
#10
35860-MCA-A61
SWITCH ASSY., STARTER MAGNETIC (A)
$86.59¢43 297
1
#11
80110-MCA-000
BOX, BATTERY
$31.85¢15 927
1
#12
80111-MCA-000
COVER, BATTERY CABLE
$7.85¢3 927
1
#13
80112-MCA-000
BAND, BATTERY
$14.16¢7 078
1
#14
83618-323-000
RUBBER, BATTERY BOX
$2.93¢1 466
1
#15
90114-SG0-003
BOLT (5X13)
$7.49¢3 743
1
#16
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#17
90556-MB4-000
WASHER, FR. SIDE COVER
$3.09¢1 547
1
#18
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$6.47¢3 237
1
#19
90683-KJ2-003
CLIP, WIRE HARNESS
$3.98¢1 989
1
#21
90690-GHB-671
CLIP, CABLE (25MM)
$2.59¢1 294
1
#22
91540-MCA-S41
BAND, HARNESS (GRAY)
$2.32¢1 162
1
#23
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$4.71¢2 357
1
#24
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#25
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#26
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
#27
90683-MCA-S41
CLAMP, CABLE
$2.79¢1 397
1
