SHIFT DRUM SHIFT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

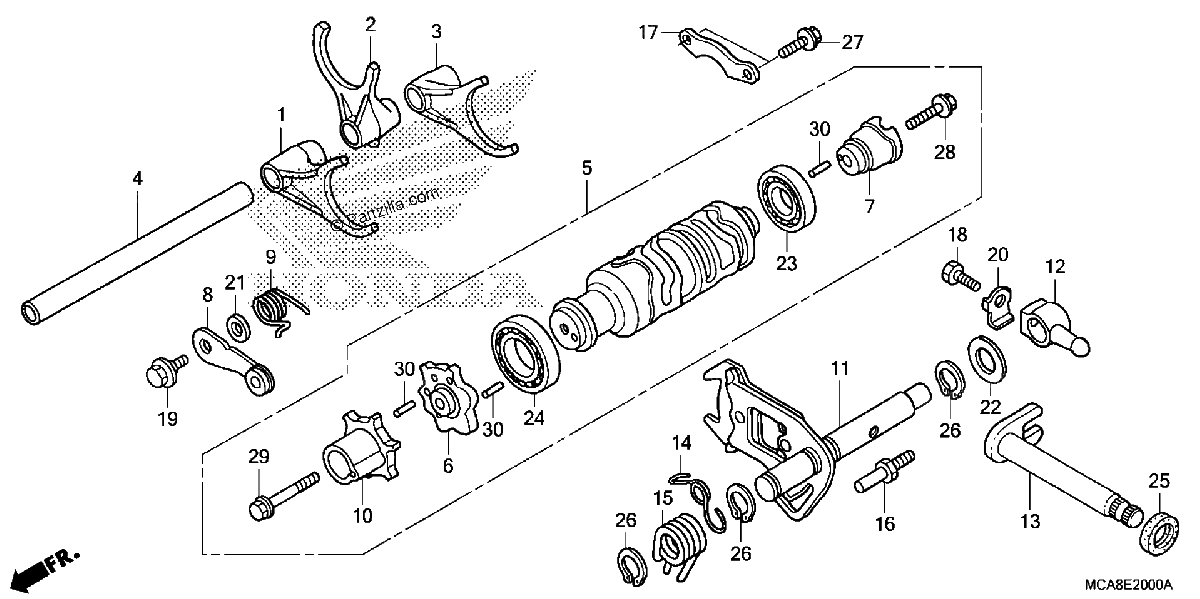

Diagrama de SHIFT DRUM SHIFT FORK

Repuestos

#1
24211-MCA-A00
FORK, FR. GEARSHIFT
$82.45¢41 228
1
#2
24212-MJG-A00
FORK, CENTER GEARSHIFT
$82.93¢41 463
1
#3
24213-MCA-000
SWINGARM, GEARSHIFT
$84.61¢42 303
1
#4
24251-MJG-A00
SHAFT, SHIFT FORK
$30.39¢15 197
1
#5
24300-MJK-A40
DRUM ASSY., GEARSHIFT
$255.79¢127 897
1
#6
24302-MCA-300
CAM, SHIFT DRUM
$50.84¢25 421
1
#7
24305-MCA-S40
CAM, GEARSHIFT DRUM LOCK
$33.84¢16 922
1
#8
24430-MCA-000
STOPPER, GEARSHIFT DRUM
$21.82¢10 908
1
#9
24435-MCA-000
SPRING, GEARSHIFT DRUM STOPPER
$3.16¢1 581
1
#10
24443-MCA-300
JOINT, GEARSHIFT DRUM
$49.28¢24 639
1
#11
24610-MCA-000
ARM, GEARSHIFT
$123.69¢61 847
1
#12
24615-MCA-000
ARM B, GEARSHIFT
$49.04¢24 518
1
#13
24620-MCA-780
SPINDLE, GEARSHIFT
$65.10¢32 551
1
#14
24624-MT3-000
SPRING, GEARSHIFT RESET
$4.16¢2 081
1
#15
24651-MCA-000
SPRING, GEARSHIFT RETURN
$11.42¢5 710
1
#16
24652-028-000
PIN, SHIFT RETURN SPRING
$11.52¢5 761
1
#17
24655-MV4-000
PLATE, GEARSHIFT DRUM BEARING SETTING
$8.03¢4 013
1
#18
90009-MN5-000
BOLT, HEX. (8X17)
$5.01¢2 507
1
#19
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#20
90406-422-000
WASHER, LOCK (8MM)
$3.27¢1 633
1
#21
90417-360-000
WASHER, DRUM STOPPER
$2.06¢1 029
1
#22
90487-MN5-000
WASHER (14.2X28X2.3)
$6.67¢3 335
1
#23
91007-MN5-003
BEARING, RADIAL BALL (6904) (NTN)
$18.76¢9 378
1
#24
91008-374-003
BEARING, BALL (16005) (NTN)
$16.04¢8 021
1
#25
91202-965-003
OIL SEAL (14X28X7) (ARAI)
$7.15¢3 577
1
#26
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#27
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#28
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#29
95701-08040-00
BOLT, FLANGE (8X40)
$1.41¢707
1
#30
96220-40148
ROLLER (4X14.8)
$0.62¢311
1
