THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

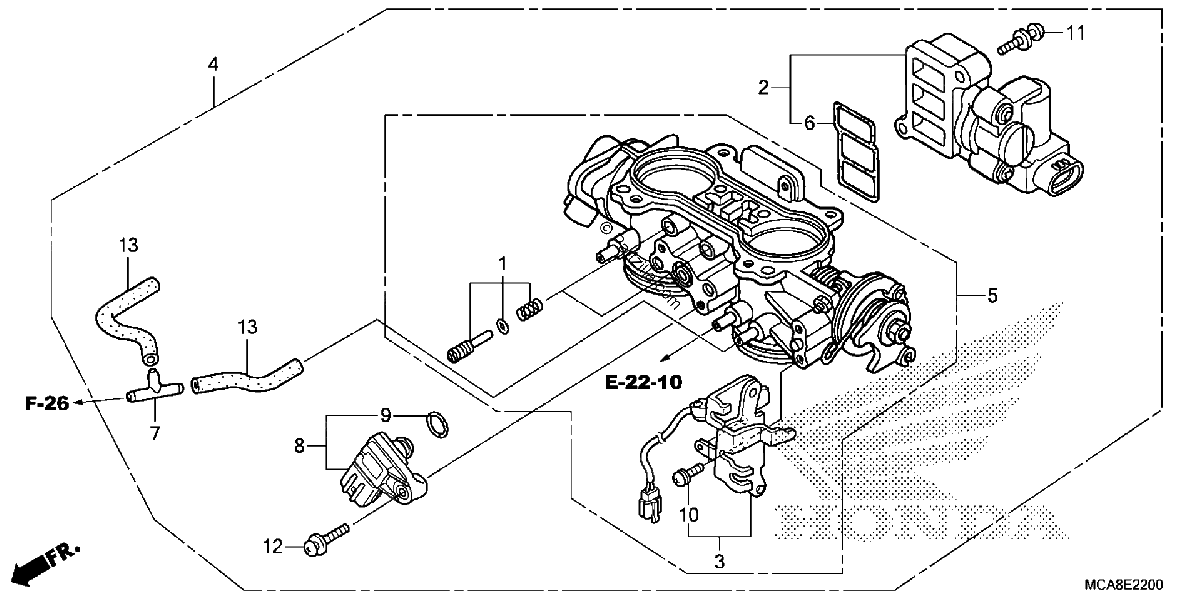

Diagrama de THROTTLE BODY

Repuestos

#1
16016-MCA-013
SCREW SET
$21.64¢10 819
1
#2
16022-MCA-003
VALVE SET, ROTARY AIR CONTROL
$138.57¢69 288
1
#3
16023-MCA-A61
STAY, THROTTLE WIRE SETTING
$65.39¢32 694
1
#4
16400-MCA-A61
BODY Assembly., THROTTLE (GQ68A A)
$691.89¢345 944
1
#5
16410-MCA-A61
BODY SET
$367.27¢183 638
1
#6
16456-P8A-A01
GASKET, ROTARY AIR CONTROL VALVE
$8.56¢4 281
1
#7
17201-MG9-000
JOINT A, VACUUM TUBE
$18.50¢9 250
1
#8
37830-PNC-003
SENSOR Assembly., MAP
$169.72¢84 863
1
#9
37835-PGK-A01
O-RING
$9.47¢4 738
1
#10
93892-05012-00
SCREW-WASHER (5X12)
$1.06¢531
1
#10
93892-05012-10
SCREW-WASHER (5X12)
$1.06¢531
1
#11
93892-05022-00
SCREW-WASHER (5X22)
$1.44¢719
1
#12
93893-05022-08
SCREW-WASHER (5X22)
$1.15¢575
1
#13
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
