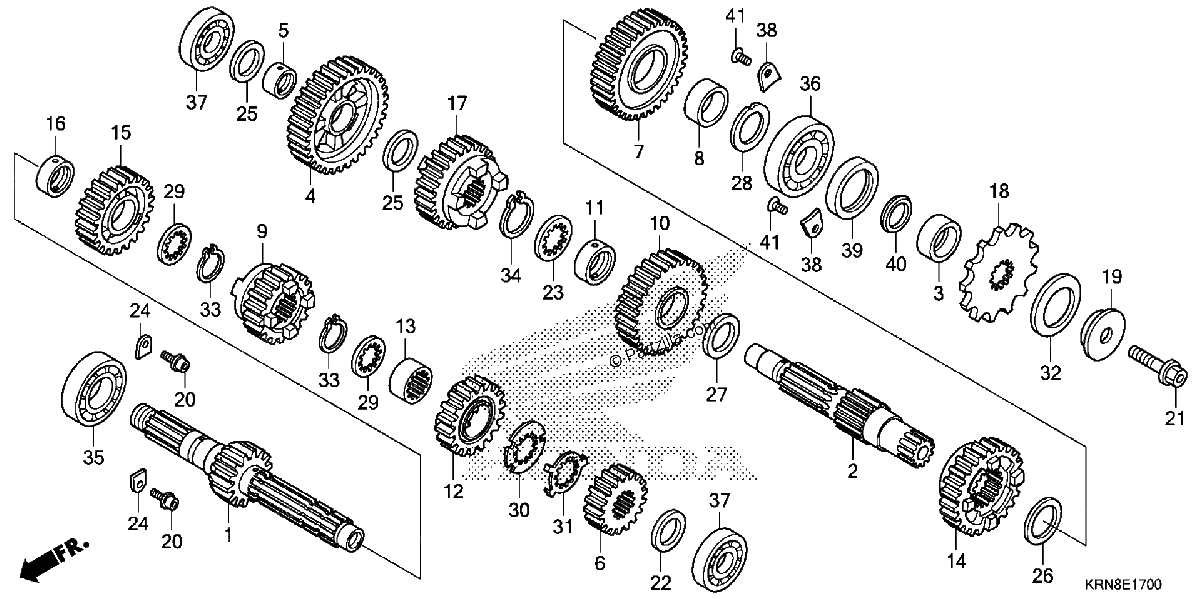

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT (14T)
$188.52¢94 260
#2
COUNTERSHAFT
$185.89¢92 943
#3
COLLAR, COUNTERSHAFT
$12.76¢6 382
#4
GEAR, COUNTERSHAFT LOW (33T)
$131.55¢65 774
#5
COLLAR (17MM)
$8.81¢4 405
#6
GEAR, MAINSHAFT SECOND (18T)
$64.63¢32 315
#7
GEAR, COUNTERSHAFT SECOND (34T)
$131.55¢65 774
#8
COLLAR (24MM)
$9.14¢4 571
#9
GEAR, MAINSHAFT THIRD (18T)
$130.24¢65 119
#10
GEAR, COUNTERSHAFT THIRD (28T)
$124.82¢62 411
#11
COLLAR, COUNTERSHAFT THIRD GEAR
$11.59¢5 796
#12
GEAR, MAINSHAFT FOURTH (18T)
$114.26¢57 132
#13
COLLAR, MAINSHAFT FOURTH GEAR
$13.41¢6 704
#14
GEAR, COUNTERSHAFT FOURTH (24T)
$130.24¢65 119
#15
GEAR, MAINSHAFT FIFTH (22T)
$118.24¢59 121
#16
COLLAR (20MM)
$8.31¢4 157
#17
GEAR, COUNTERSHAFT FIFTH (25T)
$144.45¢72 226
#18
SPROCKET, DRIVE (13T)
$38.21¢19 107
#19
COLLAR, DRIVE SPROCKET
$15.69¢7 843
#20
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
#21
BOLT, UBS (8X33)
$4.30¢2 151
#22
WASHER, SPECIAL (17MM)
$3.36¢1 679
#23
WASHER, THRUST INVOLUTE (22X21X1)
$4.58¢2 289
#24
PLATE, BEARING HOLDER
$0.71¢357
#25
WASHER, THRUST (17.2MM)
$4.01¢2 007
#26
WASHER (24X32X1)
$3.56¢1 783
#27
WASHER, THRUST (22X30X1)
$5.63¢2 818
#28
WASHER (22X33X1.5)
$3.92¢1 961
#29
WASHER, SPLINE (20MM)
$2.89¢1 443
#30
WASHER, SPLINE (20MM)
$3.90¢1 949
#31
WASHER, LOCK (20MM)
$4.00¢2 001
#32
WASHER, SPRING (24MM)
$4.75¢2 375
#33
SET-RING (20MM)
$9.90¢4 951
#34
SET-RING (22MM)
$11.44¢5 721
#35
BEARING, RADIAL BALL (22X47X14)
$14.78¢7 389
#36
BEARING, RADIAL BALL (22X52X14)
$19.47¢9 735
#37
BEARING, RADIAL BALL (17X40X11)
$22.85¢11 425
#38
PLATE, COUNTERSHAFT BEARING
$6.96¢3 479
#39
OIL SEAL (28X37X7)
$8.98¢4 491
#40
D-RING (22MM)
$3.36¢1 679
#41
SCREW, FLAT (6X10)
$1.17¢586
