REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

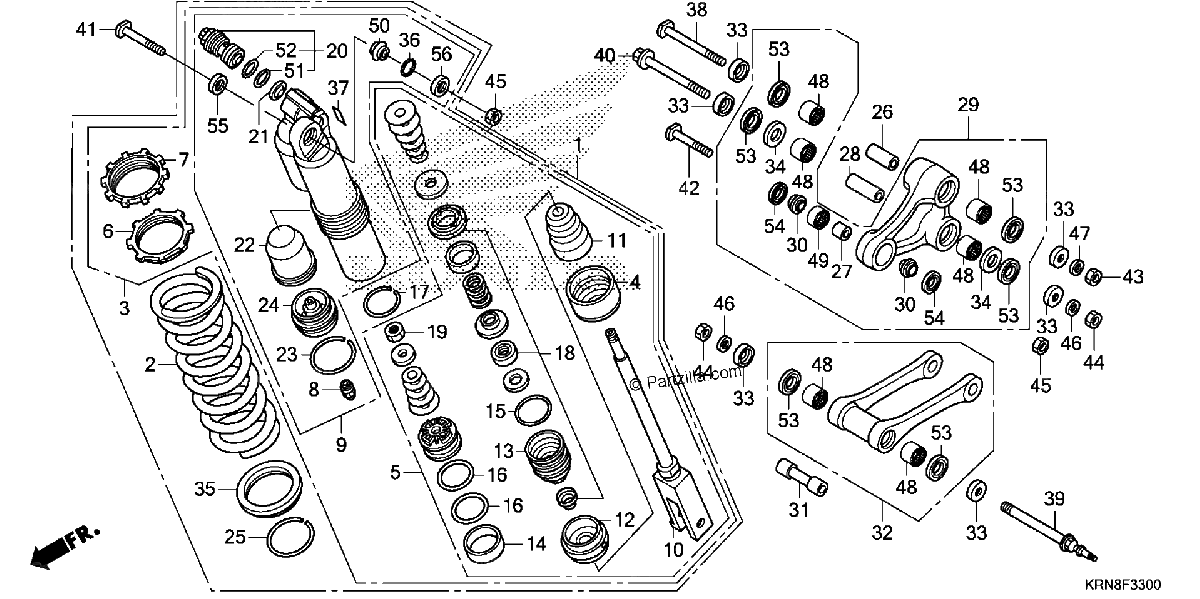

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
52400-KRN-405
CUSHION ASSY., RR. (COO) (SHOWA)
$1475.30¢737 650
1
#2
52401-KRN-A91
SPRING, RR. SHOCK ABSORBER (52N/MM)
$278.43¢139 213
1
#2
52402-KRN-A91
SPRING, RR. SHOCK ABSORBER (54N/MM)
$278.43¢139 213
1
#2
52403-KRN-A91
SPRING, RR. SHOCK ABSORBER (50N/MM)
$258.11¢129 053
1
#3
52410-KRN-307
DAMPER, RR. (COO)
$1150.76¢575 379
1
#4
52419-KZ3-J21
STOPPER, SPRING SEAT
$26.60¢13 300
1
#5
52421-KRN-A81
ROD, PISTON
$614.39¢307 194
1
#6
52422-KRN-A41
ADJUSTER, SPRING
$35.50¢17 750
1
#7
52423-KRN-A41
NUT, ADJUSTER
$17.22¢8 608
1
#8
52425-381-771
CAP, AIR VALVE
$5.63¢2 818
1
#9
52425-KRN-A91
CASE, DAMPER
$1112.28¢556 140
1
#10
52426-KRN-A81
ROD
$521.13¢260 567
1
#11
52427-MEB-751
RUBBER, STOPPER
$16.79¢8 395
1
#12
52428-KRN-711
PLATE, END
$17.02¢8 510
1
#13
52429-KRN-A41
CASE, ROD GUIDE
$54.28¢27 140
1
#14
52431-KZ3-J31
RING, PISTON
$18.64¢9 321
1
#15
52434-KZ3-J21
O-RING (3.5X43.7)
$4.42¢2 208
1
#16
52434-KZ3-J31
O-RING (42.5X2.0)
$3.85¢1 926
1
#17
52435-KZ3-J21
RING, STOPPER
$2.81¢1 403
1
#18
52436-KRN-A41
OIL SEAL SET
$26.54¢13 271
1
#19
52438-KA4-741
NUT, HEX. (12MM)
$3.36¢1 679
1
#20
52440-KRN-A91
ADJUSTER, COMPRESSION DAMPING FORCE
$161.49¢80 747
1
#21
52445-KRN-A41
COLLAR, ORIFICE
$7.73¢3 864
1
#22
52451-KRN-A41
BLADDER
$17.59¢8 798
1
#23
52452-KRN-A41
RING, STOPPER
$3.53¢1 765
1
#24
52453-KRN-A41
CAP, CHAMBER
$29.04¢14 519
1
#25
52455-KZ3-J21
RING, STOPPER
$6.88¢3 439
1
#26
52463-KZ4-J40
COLLAR C, CUSHION ARM
$6.35¢3 174
1
#27
52464-KRN-710
COLLAR D, CUSHION ARM
$11.03¢5 514
1
#28
52464-MEN-A30
COLLAR B, CUSHION
$8.97¢4 485
1
#29
52465-KRN-A80
ARM SUB-ASSY., CUSHION
$415.60¢207 799
1
#30
52466-KRN-710
COLLAR D, CUSHION ARM SIDE
$4.34¢2 168
1
#31
52473-MEN-A30
COLLAR, CONNECTING ROD
$18.93¢9 465
1
#32
52475-KRN-A80
ROD SUB-ASSY., CUSHION CONNECTING
$278.01¢139 006
1
#33
52475-KZ4-J20
COLLAR, LINK SIDE
$7.57¢3 783
1
#34
52476-KZ4-J20
WASHER, THRUST
$5.78¢2 892
1
#35
52486-KZ3-J21
SEAT, SPRING
$28.84¢14 421
1
#36
52487-KA4-831
RING, STOPPER
$4.38¢2 191
1
#37
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$7.97¢3 985
1
#38
90130-MEN-840
BOLT, LINK (12X82)
$12.20¢6 101
1
#39
91262-KZ3-731
DUST SEAL (25X32X4)
$8.37¢4 186
1
#39
90131-MEN-A70
BOLT, LINK (12X116)
$17.55¢8 775
1
#40
90132-MEN-A30
BOLT, LINK (12X87)
$12.56¢6 279
1
#41
90152-MEB-750
BOLT, CUSHION (UPPER) (10X53)
$3.36¢1 679
1
#42
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$9.68¢4 842
1
#43
90305-KRN-A30
NUT, U (12MM)
$5.78¢2 892
1
#44
90306-KBP-901
NUT, U (12MM)
$9.80¢4 899
1
#45
90306-KZ4-711
NUT, U (10MM)
$4.17¢2 087
1
#46
90501-KRN-710
WASHER, PLAIN (12MM)
$4.40¢2 202
1
#47
90501-KZ4-J40
WASHER, PLAIN (12MM)
$2.64¢1 322
1
#48
91051-KSC-003
BEARING, NEEDLE (20X26X15)
$9.45¢4 727
1
#49
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.15¢4 577
1
#50
91074-MAC-741
BEARING, SPHERICAL (10)
$37.41¢18 705
1
#51
91256-KZ3-731
O-RING (21.5X1.5)
$3.36¢1 679
1
#52
91257-KZ3-891
O-RING (26.2X1.9)
$3.42¢1 708
1
#54
91351-KRN-711
DUST SEAL (17.5X26X3)
$3.36¢1 679
1
#55
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.44¢2 720
1
#56
91351-MAC-671
DUST SEAL (16X26X3)
$6.19¢3 093
1
