MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

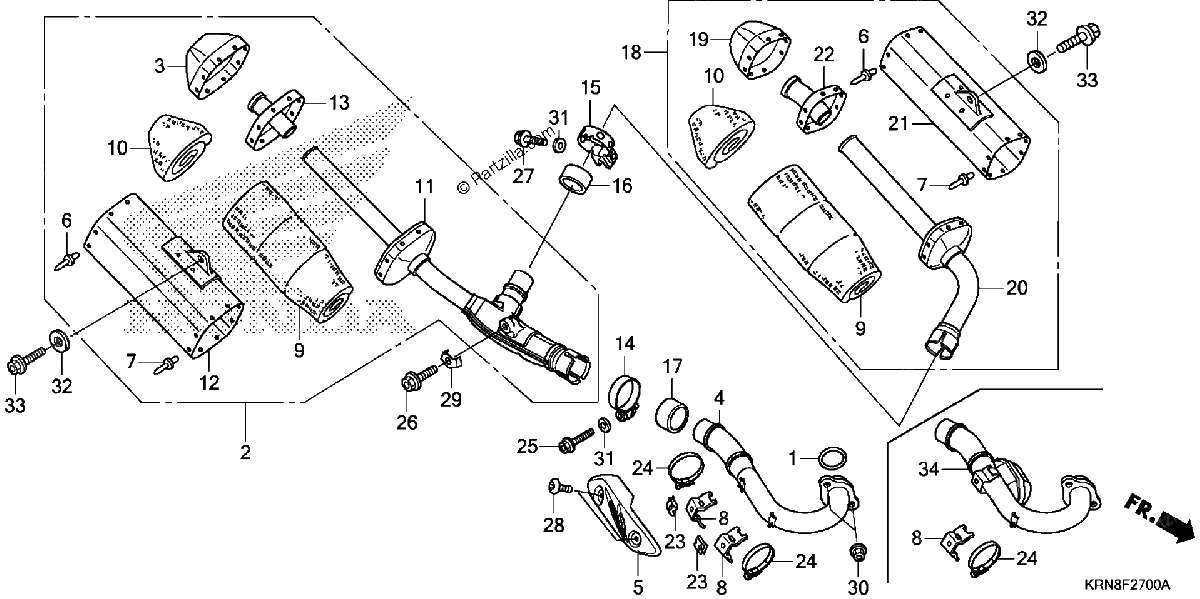

Diagrama de MUFFLER

Repuestos

#1
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#2
18310-KRN-406
MUFFLER, R. (COO)
$1050.42¢525 213
1
#3
18318-KRN-309
COVER, R. END (COO)
$181.56¢90 781
1
#4
18320-KRN-A80
PIPE, EX.
$336.41¢168 206
1
#5
18323-KRN-A80
PROTECTOR, EX. PIPE
$75.60¢37 800
1
#6
18324-MEB-670
RIVET, BLIND (4.8)
$1.38¢688
1
#7
18326-KRN-A00
RIVET, BLIND (3.2)
$1.60¢800
1
#8
18327-KRN-A80
STAY, EX. PIPE PROTECTOR
$8.21¢4 106
1
#9
18334-KRN-A80
PACK, GLASS WOOL CENTER
$154.26¢77 131
1
#10
18337-KRN-850
WOOL B, GLASS
$21.48¢10 738
1
#11
18360-KRN-A90
MUFFLER, R. FR.
$366.23¢183 113
1
#12
18361-KRN-A81
BODY, R. MUFFLER
$310.86¢155 431
1
#13
18362-KRN-A90
SEPARATOR (R)
$53.32¢26 662
1
#14
18373-KE8-000
BAND, Right MUFFLER
$33.25¢16 625
1
#14
18374-MG7-701
BAND, L MUFFLER
$33.25¢16 625
1
#15
18374-ML0-000
BAND, L. EX. PIPE
$38.89¢19 444
1
#16
18392-HA7-710
GASKET, EX.
$18.46¢9 231
1
#17
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#18
18410-KRN-406
MUFFLER, L. (COO)
$814.75¢407 375
1
#19
18418-KRN-309
COVER, L. END (COO)
$185.19¢92 594
1
#20
18460-KRN-A90
MUFFLER, L. FR.
$129.86¢64 931
1
#21
18461-KRN-A81
BODY, L. MUFFLER
$324.84¢162 419
1
#22
18462-KRN-A90
SEPARATOR (L)
$59.80¢29 900
1
#23
19508-KA3-710
NUT, SPRING (6MM)
$6.95¢3 475
1
#24
19509-MM5-003
CLAMP, RADIATOR HOSE
$15.88¢7 938
1
#25
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.75¢1 375
1
#26
90109-MEN-A30
BOLT (8X20)
$3.65¢1 825
1
#27
90124-MEB-770
BOLT, FLANGE (8X32)
$2.63¢1 313
1
#28
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.31¢1 156
1
#29
90502-MEN-A70
WASHER, FR. MUFFLER STAY
$4.81¢2 406
1
#30
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#31
94102-08800
WASHER, PLAIN (8MM)
$1.21¢606
1
#32
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#33
95701-08025-00
BOLT, FLANGE (8X25)
$2.30¢1 150
1
