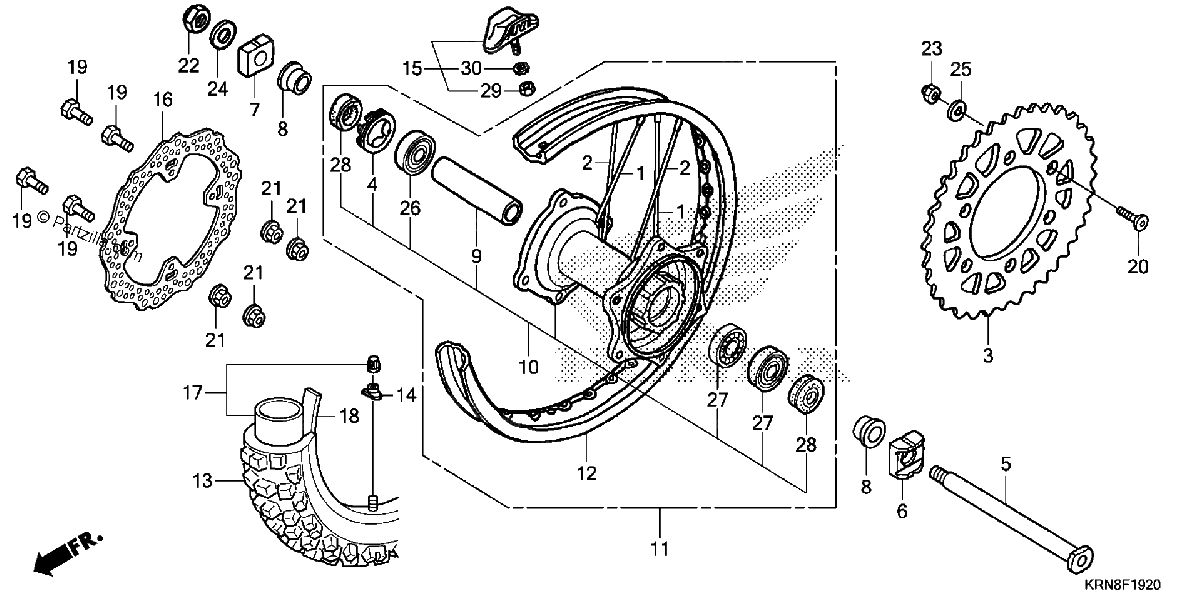

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPOKE SET, RR.
$4.76¢2 381
#2
SPOKE SET, RR.
$4.76¢2 381
#3
SPROCKET, FINAL DRIVEN (49T)
$158.14¢79 069
#3
SPROCKET, FINAL DRIVEN (48T)
$158.14¢79 069
#3
SPROCKET, FINAL DRIVEN (50T)
$142.15¢71 075
#4
RETAINER, RR. WHEEL BEARING
$22.38¢11 188
#5
AXLE, RR. WHEEL
$54.99¢27 494
#6
COLLAR, L. RR. AXLE
$24.81¢12 406
#7
COLLAR, R. RR. AXLE
$22.38¢11 188
#8
COLLAR, RR. WHEEL SIDE
$26.70¢13 350
#9
COLLAR, RR. WHEEL DISTANCE
$32.44¢16 219
#10
HUB SUB-ASSY., RR.
$695.76¢347 881
#11
WHEEL SUB-ASSY., RR.
$1163.50¢581 750
#12
RIM, RR. WHEEL (19X1.85)
$360.74¢180 369
#13
TIRE, RR. (100/90-19 57M) (DUNLOP)
$216.16¢108 081
#14
CAP, VALVE
$12.15¢6 075
#15
STOPPER, BEAD (1.85)
$37.48¢18 738
#16
DISK, RR. BRAKE
$308.38¢154 188
#17
TUBE, TIRE (100/100-19) (DUNLOP)
$84.24¢42 119
#18
FLAP, TIRE (DUNLOP)
$7.16¢3 581
#19
BOLT, DISK (6X19)
$6.05¢3 025
#20
SCREW, FLAT (8X31)
$3.74¢1 869
#21
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#22
NUT, U (22MM)
$10.48¢5 238
#23
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
#24
WASHER (22X35X2)
$3.65¢1 825
#25
WASHER (8MM)
$3.24¢1 619
#26
BEARING, RADIAL BALL (69052RS)
$21.39¢10 694
#27
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
#28
DUST SEAL (32X43X7)
$5.99¢2 994
#29
NUT, HEX. (8MM)
$1.68¢838
#30
WASHER, SPRING (8MM)
$1.21¢606
